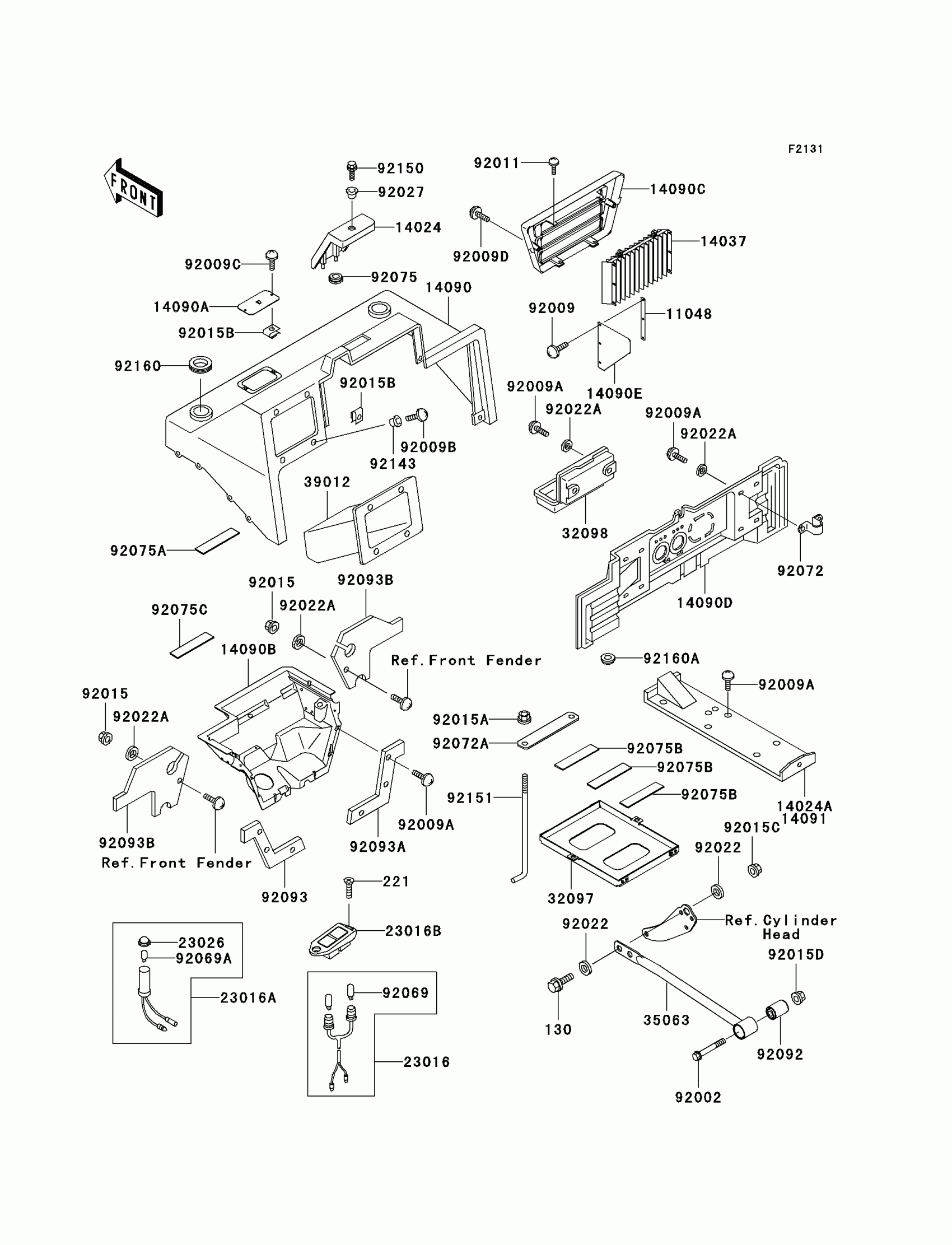

Kawasaki Mule 2510 Diesel Frame Fittings(Cover) Diagram

#

Description
Price

11048

BRACKET,SCREEN

11048-1085

$21.42

14024

COVER,MAINTENANCE,H.GREEN

14024-1788-6A

Unavailable

14024A

COVER,FLOOR,CNT

14024-1791

Unavailable

14037

SCREEN

14037-1177

$58.17

14090

COVER,UPP,H.GREEN

14090-1240-6A

$458.43

14090A

COVER,RADIATOR CAP,H.GREEN

14090-1241-B9

Unavailable

14090B

COVER,LWR

14090-1242

Unavailable

14090C

COVER,FRONT GRILL,H.GREEN

14090-1243-6A

$143.26

14090D

COVER,SEAT UNDER

14090-1271

$145.46

14090E

COVER,SCREEN

14090-1326

$11.10

23016

LAMP-ASSY,NEUTRAL&REVERSE

23016-1083

$58.77

23016A

LAMP-ASSY,TEMP

23016-1128

$54.60

23016B

LAMP-ASSY

23016-1177

Unavailable

23026

LENS,TEMP LAMP

23026-1157

$4.33

32097

CASE-BATTERY

32097-1182

$70.36

32098

CASE-TOOL

32098-1052

$33.37

35063

STAY

35063-1107

$61.65

39012

CASE-STORAGE

39012-1053

$71.71

92002

BOLT,ROD,12MM

92002-1757

$12.71

92009

SCREW,6X18

92009-1111

$4.78

92009A

SCREW,TAPPING,6X16

92009-1166

$5.52

92009B

SCREW,6X18,BLACK

92009-1181

$2.80

92009C

SCREW,6X14

92009-1288

$3.92

92009D

SCREW,6X55

92009-1353

$5.84

92011

SCREW

92011-562

$1.65

92015

NUT,FLANGED,6MM,BLACK

92015-1386

Unavailable

92015A

NUT,FLANGED,8MM

92015-1406

$4.45

92015B

NUT,CLAMP,6MM

92015-1678

$5.52

92015C

NUT,FLANGED,LOCK,8MM

92015-1696

$4.67

92015D

NUT

92015-1706

$7.45

92022

WASHER,8.5X20X1.6,BLACK

92022-1317

$4.31

92022A

WASHER,6.5X20X1.6,BLACK

92022-1346

$0.49

92027

COLLAR,L=14.1

92027-1920

$6.57

92069

BULB,12V 3W,T7

92069-1020

$6.52

92069A

BULB,12V 1.7W,T10

92069-1059

$4.96

92072

BAND

92072-1252

$11.91

92072A

BAND,BATTERY

92072-1388

$12.30

92075

DAMPER

92075-1067

$4.69

92075A

DAMPER,AIR FILTER COV

92075-1658

$4.86

92075B

DAMPER

92075-1829

$7.69

130

BOLT-FLANGED,8X22

130J0822

$2.19

221

SCREW-CSK-CROS

221C0616

Unavailable

92075C

DAMPER,BATTERY BAND

92075-1903

$5.59

92092

BUSHING-RUBBER

92092-005

$14.10

92093

SEAL,FRONT FENDER,LH

92093-1293

$9.64

92093A

SEAL,FRONT FENDER,RH

92093-1294

$10.00

92093B

SEAL,LOWER COVER

92093-1295

$22.57

92143

COLLAR

92143-1087

$4.31

92150

BOLT,6X25

92150-1360

Unavailable

92151

BOLT

92151-1728

$7.98

92160

DAMPER

92160-1142

$9.30

92160A

DAMPER

92160-1148

$4.58
