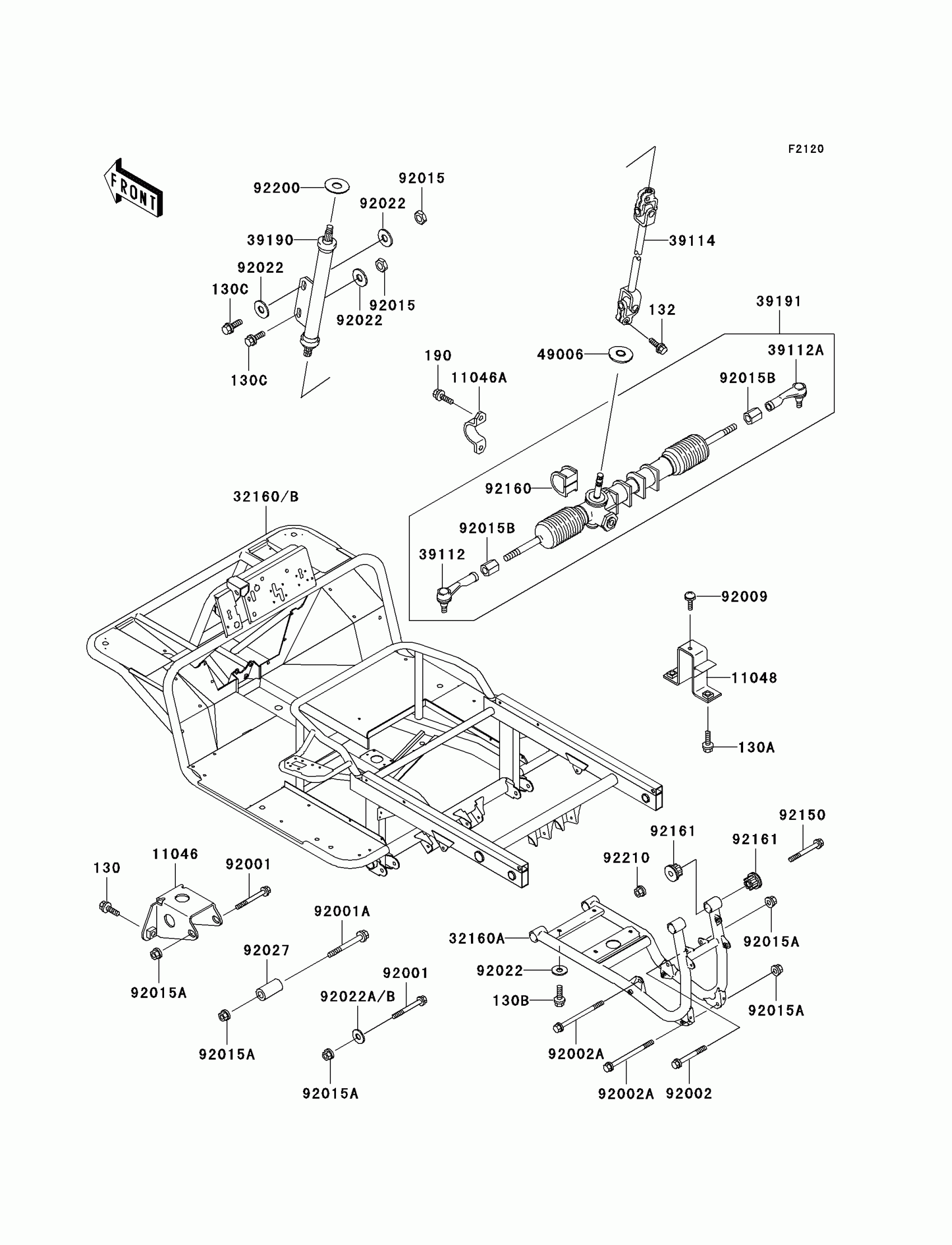

Kawasaki Mule 2510 Diesel Frame Diagram

#

Description
Price

130

BOLT-FLANGED,10X20

130G1020

$3.14

130A

BOLT-FLANGED,8X20

130J0820

$0.83

130B

BOLT-FLANGED,10X20

130J1020

$5.55

130C

BOLT-FLANGED,10X30

130J1030

$6.10

132

BOLT-FLANGED-SMALL,8X25

132J0825

$3.84

190

BOLT-UPSET-WS

190H1025

$4.93

11046

BRACKET,FRONT DIFF

11046-1684

Unavailable

11046A

BRACKET,STEERING GEAR

11046-1858

Unavailable

11048

BRACKET,REAR FRAME

11048-1245

$26.09

32160

Not Available For This Vehicle | Includes 7 to 14

n/a

Unavailable

32160A

FRAME-COMP,RR

32160-1604

Unavailable

39112

RODEND-TIE,STEERING GEAR,LH

39112-1068

$96.05

39112A

RODEND-TIE,STEERING GEAR,RH

39112-1069

$96.05

39114

SHAFT-COMP-STRG

39114-1070

$319.63

39190

SHAFT-ASSY-STEERING

39190-1003

$231.78

39191

GEAR-ASSY-STEERING

39191-1007

$1,066.48

49006

BOOT,STEERING SHAFT,LWR

49006-1255

$34.90

92001

BOLT,FLANGED,10X70

92001-1600

$10.37

92001A

BOLT,FLANGED,10X115

92001-1603

$10.65

92002

BOLT,FLANGED,10X80

92002-1764

$7.45

92002A

BOLT,FLANGED,10X145

92002-1765

$11.37

92009

SCREW,6X14

92009-1288

$3.92

92015

NUT,LOCK,10MM,BLACK

92015-1189

$7.34

92015A

NUT,LOCK,10MM

92015-1597

$5.52

92015B

NUT

92015-1864

$14.39

92022

WASHER,10.5X26X2.3,BLACK

92022-1396

$3.21

92022A

WASHER,10.2X20X0.5

92022-1649

Unavailable

92022B

WASHER,10.5X20X1

92022-239

Unavailable

92027

COLLAR,11X20X39

92027-1518

$19.28

92150

BOLT,FLANGED,10X100

92150-1731

$18.15

92160

DAMPER,STEERING GEAR

92160-1084

$31.96

92161

DAMPER

92161-1126

Unavailable

92200

WASHER,15X45X0.6

92200-1130

$4.43

92210

NUT,LOCK,FLANGED,10MM

92210-1139

$4.18
