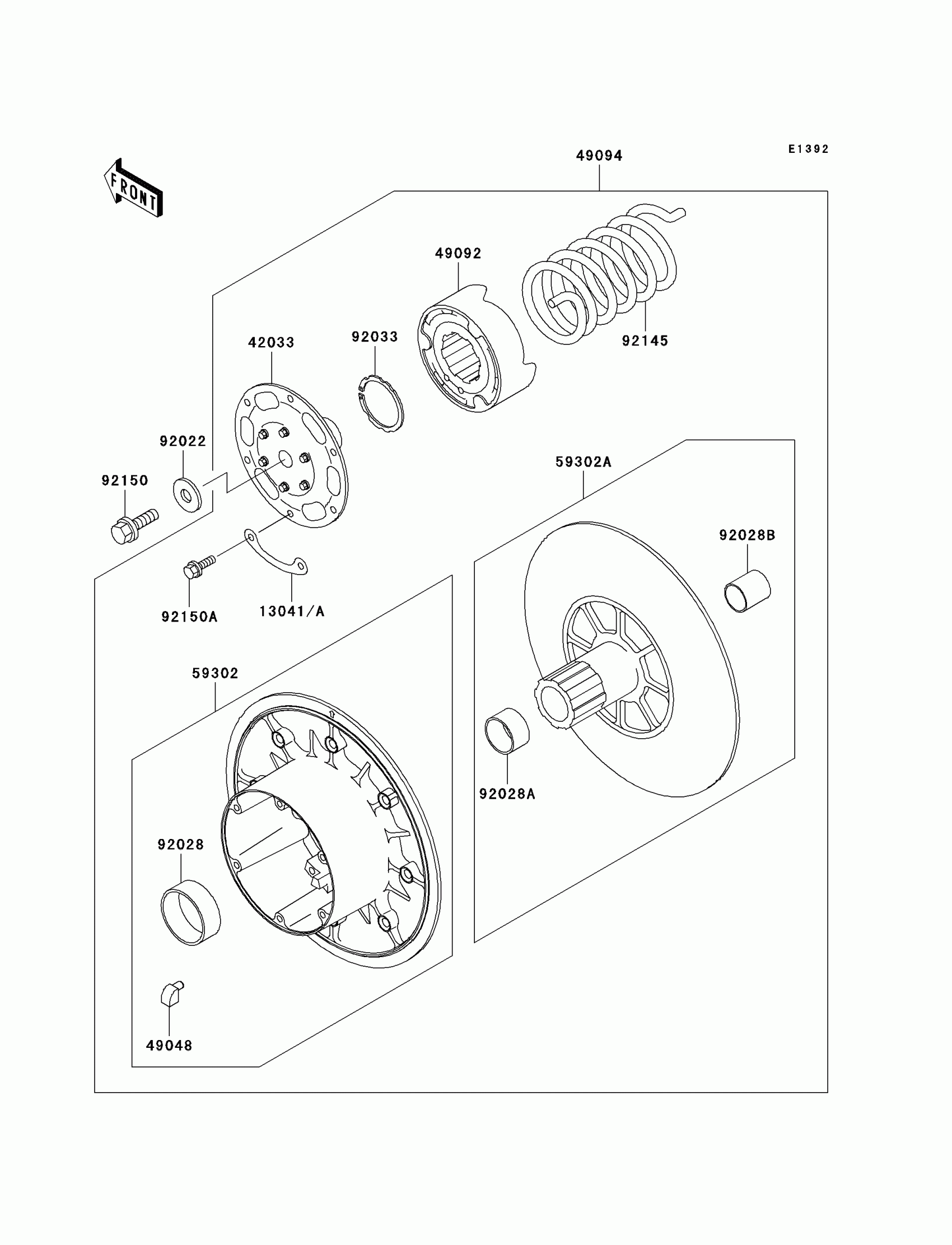

Kawasaki Mule 2510 Diesel Driven Converter Diagram

Description

Price

13041

BALANCER,T=0.8

13041-1084

Unavailable

13041A

BALANCER,T=1.0

13041-1085

Unavailable

42033

COUPLING-ASSY

42033-1124

$167.97

49048

SHOE

49048-1057

$5.86

49092

RAMP

49092-1064

$68.42

49094

CONVERTER-ASSY-DRIVEN

49094-1075

$735.96

59302

SHEAVE-COMP

59302-1086

$342.44

59302A

SHEAVE-COMP,MOVABLE

59302-1087

$312.12

92022

WASHER,12.5X32X3.2

92022-1982

$4.44

92028

BUSHING,50X55X20

92028-1512

$22.53

92028A

BUSHING,32X36X20

92028-1513

$14.63

92028B

BUSHING,25X28X30

92028-1514

$15.82

92033

RING-SNAP

92033-1241

$5.78

92145

SPRING,DRIVEN CONVERTER

92145-1350

$42.02

92150

BOLT,12X35

92150-1009

$7.68

92150A

BOLT,6X20

92150-1014

$4.11
