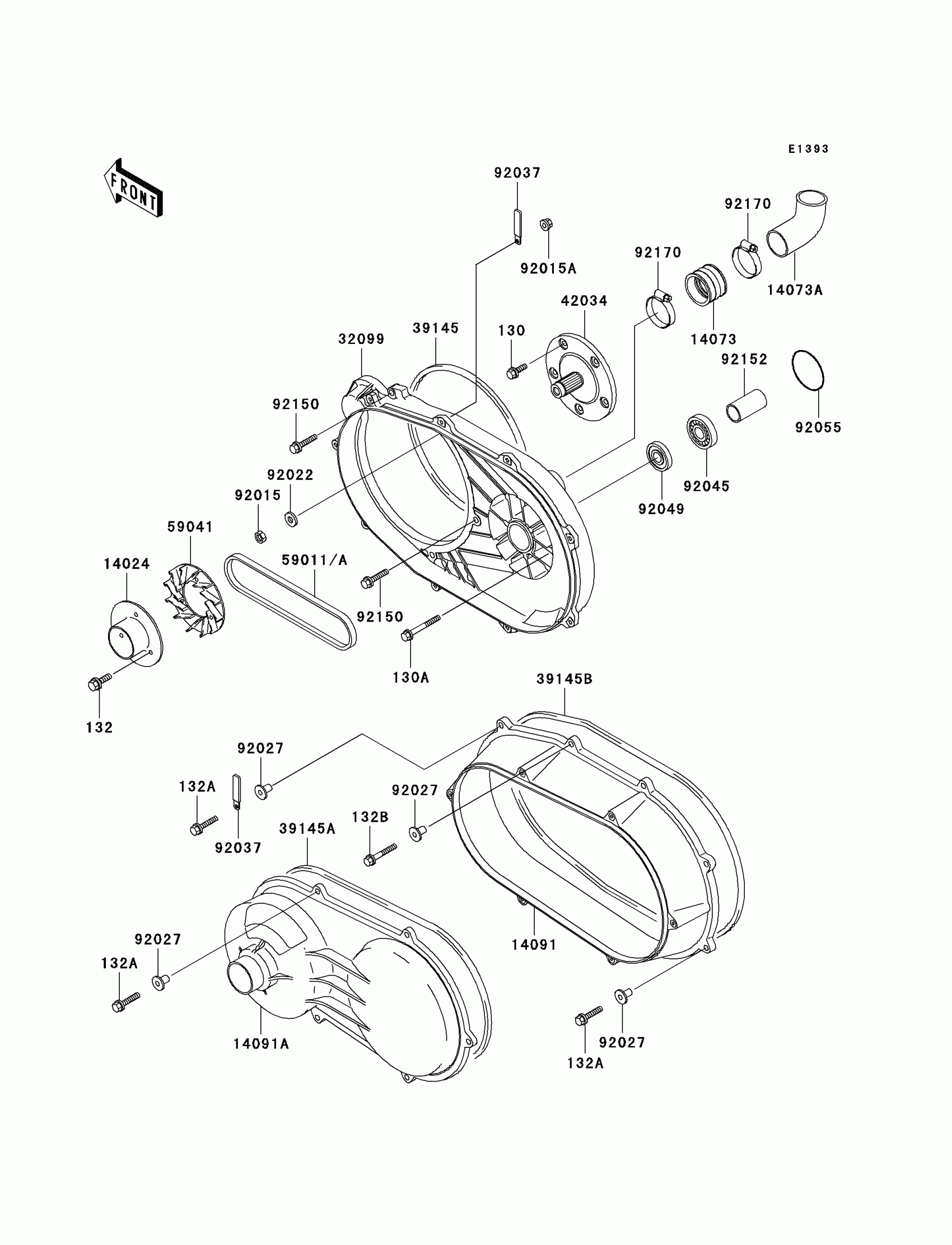

Kawasaki Mule 2510 Diesel Converter Cover/Drive Belt Diagram

Description

Price

130

BOLT-FLANGED,8X20

130T0820

$1.60

130A

BOLT-FLANGED

130Z0855

$5.75

132

BOLT-FLANGED-SMALL,6X30

132G0630

$2.48

132A

BOLT-FLANGED-SMALL,6X30

132J0630

$3.84

132B

BOLT-FLANGED-SMALL,6X35

132J0635

$3.84

14024

COVER,FAN

14024-1554

$41.67

14073

DUCT

14073-1324

$10.67

14073A

DUCT,CONVERTER OUTLET

14073-1780

$21.77

14091

COVER,MIDDLE

14091-1134

$113.45

14091A

COVER,BELT CONVERTER

14091-1187

$132.47

32099

CASE,BELT CONVERTER

32099-1215

$749.37

39145

TRIM-SEAL,BELT CONVERTER CASE

39145-1115

$11.11

39145A

TRIM-SEAL,MIDDLE COVER

39145-1117

$25.85

39145B

TRIM-SEAL,BELT CONVERTER

39145-1126

$21.16

42034

COUPLING

42034-1160

Unavailable

59011

BELT,CONVERTER

59011-1074

$221.48

59041

FAN

59041-1059

$43.68

92015

NUT,LOCK,10MM,BLACK

92015-1189

$7.34

92015A

NUT,LOCK,FLANGED,6MM

92015-1675

$4.31

92022

WASHER,10.5X18X2.5

92022-1876

$5.00

92027

COLLAR,L=14.1

92027-1920

$6.57

92037

CLAMP,WIRING HARNESS,L=60

92037-1069

Unavailable

92045

BEARING-BALL,62/28LLB

92045-1378

$27.57

92049

SEAL-OIL,TC28X47X7

92049-1297

$14.90

92055

RING-O,67.6X3.5

92055-1327

$6.52

92150

BOLT,FLANGED,8X28

92150-1103

$5.54

92152

COLLAR,28.1X34X63.6

92152-1177

$17.22

92170

CLAMP

92170-1448

$8.10
