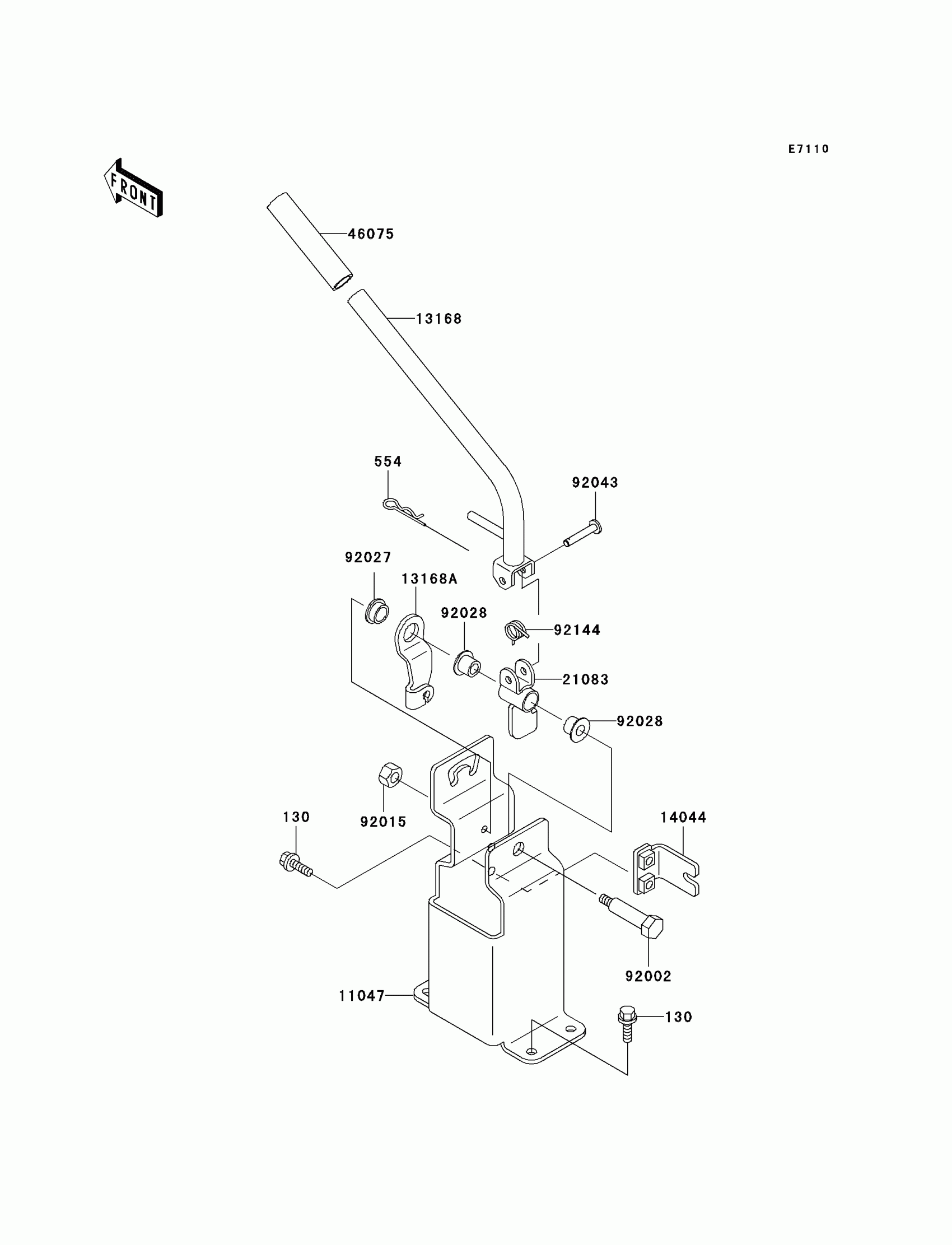

Kawasaki Mule 2510 Diesel Control Diagram

Description

Price

130

BOLT-FLANGED,6X14

130D0614

Unavailable

554

PIN-SNAP,5MM

554A0500

$2.19

11047

BRACKET

11047-1882

Unavailable

13168

LEVER

13168-1424

$41.82

13168A

LEVER,CHANGE 2WD/4WD

13168-1515

$11.81

14044

HOLDER-CABLE

14044-1077

$10.02

21083

ARM,CHANGE LEVER

21083-1102

$34.82

46075

GRIP,LEVER

46075-1062

$9.16

92002

BOLT

92002-1984

$9.40

92015

NUT,LOCK,FLANGED,6MM

92015-1675

$4.31

92027

COLLAR

92027-1029

$6.76

92028

BUSHING

92028-1507

$5.25

92043

PIN,5X27.5

92043-1434

$9.21

92144

SPRING,LEVER

92144-1428

$6.23
