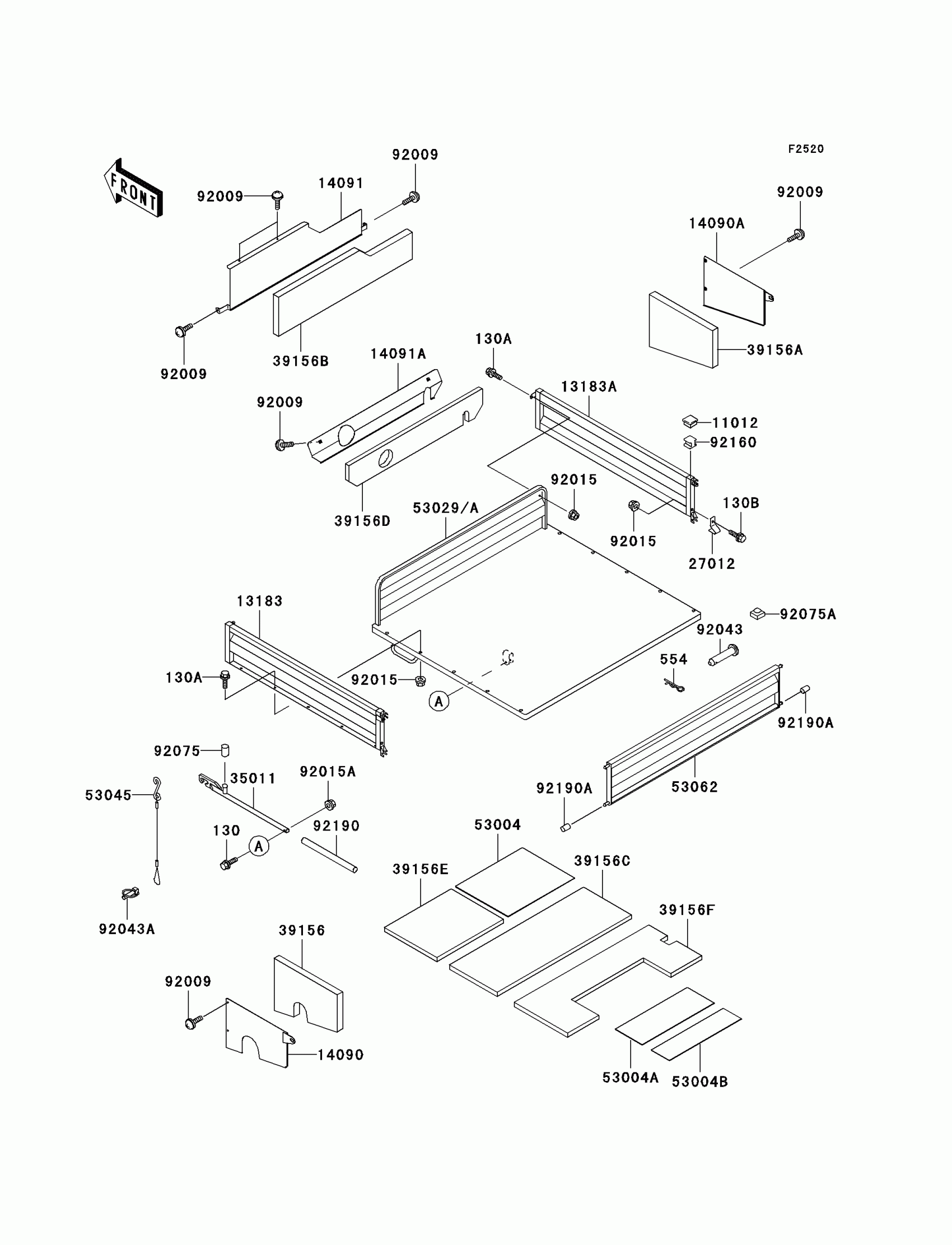

Kawasaki Mule 2510 Diesel Carrier(s) Diagram

#

Description
Price

130

BOLT-FLANGED,6X30

130H0630

$1.42

130A

BOLT-FLANGED,8X20

130J0820

$0.83

130B

BOLT-FLANGED,8X50

130J0850

$4.37

554

PIN-SNAP,12MM

554A1200

$3.57

11012

CAP

11012-1784

$6.32

13183

PLATE,CARRIER,SIDE,LH,H.GREEN

13183-1893-B9

$249.05

13183A

PLATE,CARRIER,SIDE,RH,H.GREEN

13183-1895-B9

$249.05

14090

COVER,ENCLOSURE,LH

14090-1260

$56.95

14090A

COVER,ENCLOSURE,RH

14090-1261

$56.95

14091

COVER,SEAT UNDER

14091-1151

$77.66

14091A

COVER,SEAT REAR

14091-1152

$56.13

27012

HOOK,TAIL GATE

27012-1406

$6.43

35011

STAY,CARRIER STOPPER

35011-1648

$28.90

39156

PAD,ENCLOSURE COVER,LH

39156-1301

$51.95

39156A

PAD,ENCLOSURE COVER,RH

39156-1302

$51.95

39156B

PAD,SEAT UNDER

39156-1630

$54.07

39156C

PAD,CARRIER,MIDDLE

39156-1632

$84.99

39156D

PAD,SEAT REAR

39156-1633

$27.45

39156E

PAD,CARRIER,FR

39156-1637

$40.15

39156F

PAD,CARRIER,RR

39156-1638

$97.08

53004

MAT,CARRIER,FR

53004-1130

$73.07

53004A

MAT,CARRIER,MIDDLE

53004-1131

$38.39

53004B

MAT,CARRIER,RR

53004-1132

$28.90

53029

CARRIER,H.GREEN

53029-1157-B9

Unavailable

53045

HOOK-ASSY,TALE GATE

53045-1060

$35.84

53062

GATE-TAIL,H.GREEN

53062-1004-B9

$428.94

92009

SCREW,6X16

92009-1621

Unavailable

92015

NUT,FLANGED,8MM

92015-1408

$5.38

92015A

NUT,LOCK,FLANGED,6MM

92015-1675

$4.31

92043

PIN,12X65

92043-1428

$10.09

92043A

PIN

92043-1490

$9.38

92075

DAMPER

92075-1817

$6.22

92075A

DAMPER

92075-1882

$8.10

92160

DAMPER

92160-1191

$6.32

92190

TUBE,13X16X200

92190-1401

$5.25

92190A

TUBE,8X10X15

92190-1467

$3.89
