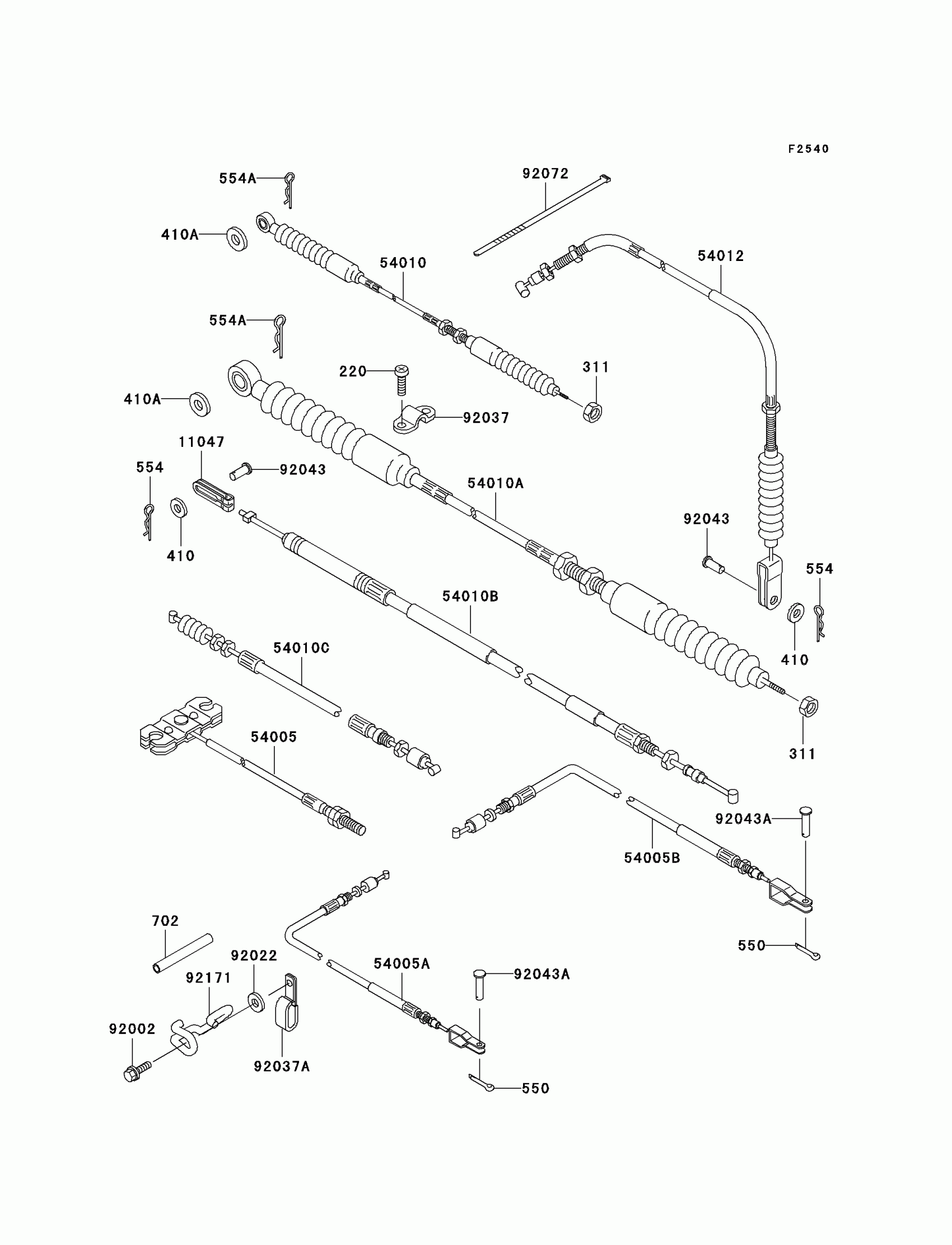

Kawasaki Mule 2510 Diesel Cables Diagram
#
Description
Price
220
SCREW-PAN-CROS,5X14
220D0514
$4.04
311
NUT 6MM
311B0600
$0.93
410
WASHER-PLAIN-SMALL,6MM
410B0600
$1.31
410A
W-PLAIN-S,8MM
410E0800
$0.96
550
PIN-COTTER,2.0X22
550D2022
$2.51
554
PIN,SNAP
554A0600
$0.93
554A
PIN-SNAP,8MM
554A0800
$1.26
702
TUBE-RUBBER,5X8X55
702A0555
$9.53
11047
BRACKET,DIFF LOCK
11047-1043
Unavailable
54005
CABLE-BRAKE,PARKING,FR
54005-1198
$10.30
54005A
CABLE-BRAKE,PARKING,RR,LH
54005-1201
$37.11
54005B
CABLE-BRAKE,PARKING,RR,RH
54005-1202
$68.79
54010
CABLE,SHIFT CONTROL
54010-1089
$166.63
54010A
CABLE,HI-LOW
54010-1090
$180.26
54010B
CABLE,DIFF LOCK
54010-1091
Unavailable
54010C
CABLE,2WD/4WD
54010-1093
$56.32
54012
CABLE-THROTTLE
54012-1613
$46.84
92002
BOLT,8X14
92002-1589
$5.05
92022
WASHER,8.5X20X1.6,BLACK
92022-1317
$4.31
92037
CLAMP,CABLE
92037-1933
$7.33
92037A
CLAMP
92037-2204
$2.26
92043
PIN,6X11
92043-092
$4.69
92043A
PIN
92043-1039
$9.91
92072
BAND,L=188
92072-1239
$1.73
92171
CLAMP,BRAKE CABLE
92171-1210
$14.02
