2007 Kawasaki Mule 2510 4X4 Water Pump Diagram

← All diagrams

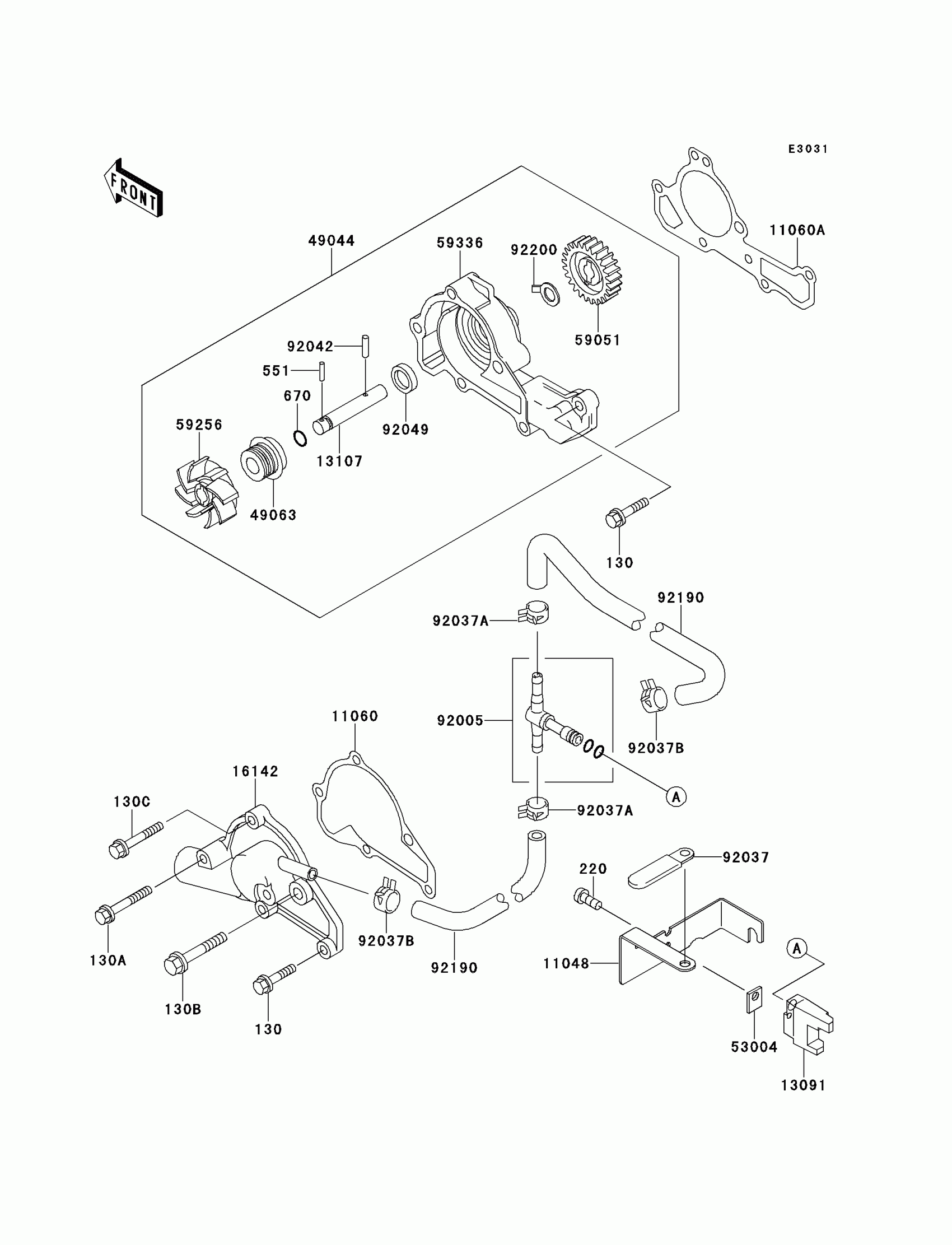

Find the part on the Water Pump diagram for your 2007 Kawasaki Mule 2510 4X4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2007 Kawasaki Mule 2510 4X4 Water Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,6X45

130G0645

1
Out of stock

130A

BOLT-FLANGED,6X75

130G0675

1
Out of stock

130B

BOLT-FLANGED,8X70

130G0870

1
Out of stock

130C

BOLT-FLANGED

130H0665

1
Out of stock

220

SCREW-PAN-CROS

220C0410

1
Out of stock

551

PIN,DOWEL,3X14

551A0314

1
Out of stock

670

O RING,7MM

670B1507

1
Out of stock

11048

BRACKET

11048-2022

1
Out of stock

11060

GASKET,PUMP COVER

11060-2288

1
Out of stock

11060A

GASKET,PUMP CASE

11060-2289

1
Out of stock

13091

HOLDER

13091-2133

1
Out of stock

13107

SHAFT,IMPELLER

13107-2097

1
Out of stock

16142

COVER-PUMP

16142-2069

1
Out of stock

49044

PUMP-WATER

49044-2058

1
Out of stock

49063

SEAL-MECHANICAL

49063-2056

1
Out of stock

53004

MAT

53004-2056

1
Out of stock

59051

GEAR-SPUR

59051-2113

1
Out of stock

59256

IMPELLER

59256-2057

1
Out of stock

59336

CASE-PUMP

59336-2052

1
Out of stock

92005

FITTING,"T"

92005-2057

1
Out of stock

92037

CLAMP,L=45

92037-1539

1
Out of stock

92037A

CLAMP,PULSE TUBE

92037-2001

1
Out of stock

92037B

CLAMP,HOSE CLIP

92037-2065

1
Out of stock

92042

PIN,DOWEL,4X15.8

92042-014

1
Out of stock

92049

SEAL-OIL

92049-2111

1
Out of stock

92190

TUBE

92190-2156

1
Out of stock

92200

WASHER

92200-2044

1
Out of stock
