2007 Kawasaki Mule 2510 4X4 AIR Cleaner Diagram

← All diagrams

Find the part on the AIR Cleaner diagram for your 2007 Kawasaki Mule 2510 4X4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

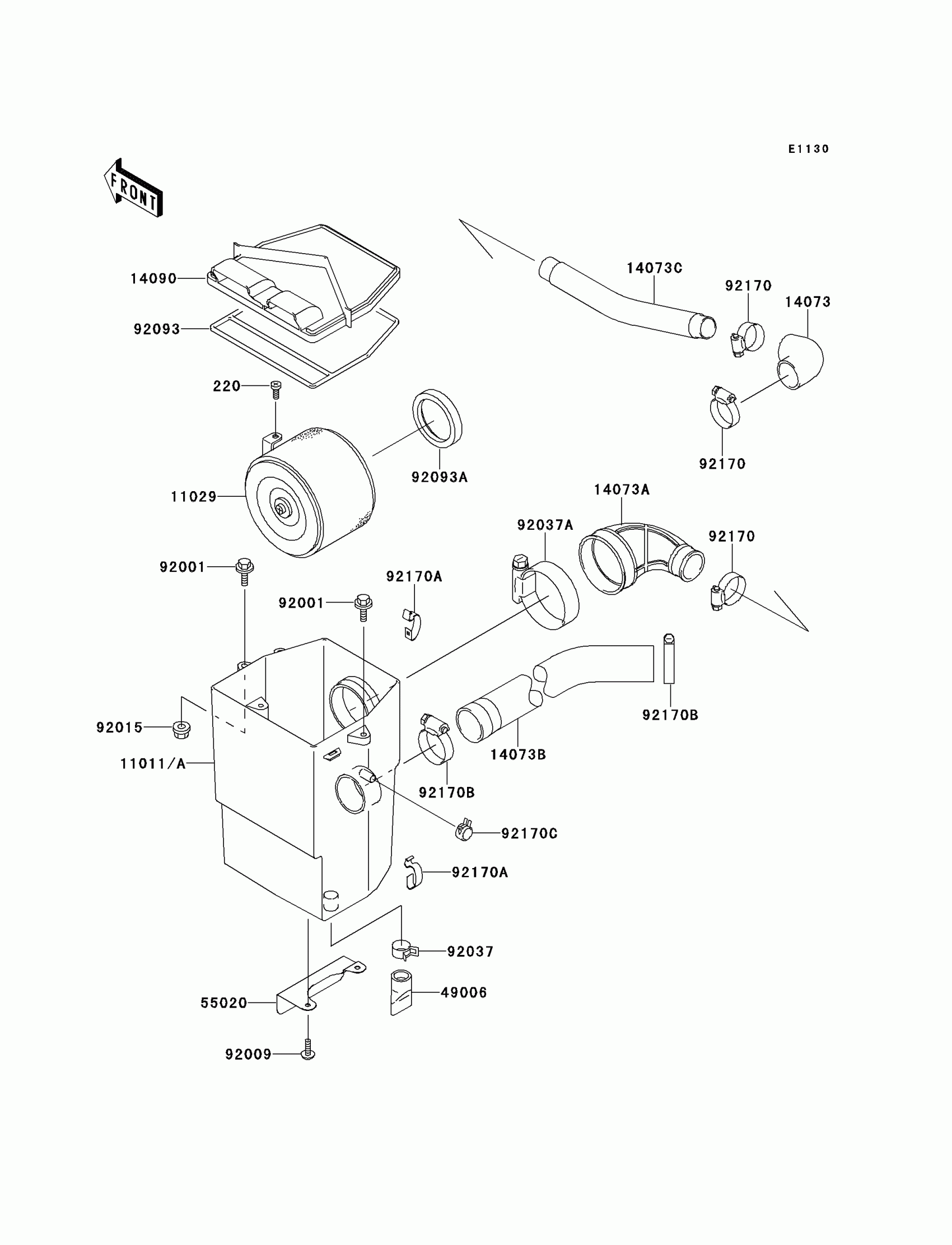

2007 Kawasaki Mule 2510 4X4 AIR Cleaner Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

220

SCREW-PAN-CROS,6X14

220B0614

1
Out of stock

11011

CASE-AIR FILTER

11011-1392

1
Out of stock

11029

ELEMENT-ASSY-AIR FILTER

11029-1004

1
Out of stock

14073

DUCT,CARBURETOR

14073-1534

1
Out of stock

14073A

DUCT,AIR FILTER

14073-1535

1
Out of stock

14073B

DUCT,AIR INTAKE

14073-1602

1

$46.41

In stock

14073C

DUCT,FILTER-CARBURETOR

14073-1687

1
Out of stock

14090

COVER,AIR FILTER

14090-1106

1

$27.07

In stock

49006

BOOT

49006-1199

1
Out of stock

55020

GUARD,AIR FILTER

55020-1497

1
Out of stock

92001

BOLT,6X25,W/WASHER

92001-1140

1
Out of stock

92009

SCREW,TAPPING,5X10

92009-1332

1
Out of stock

92015

NUT,FLANGED,6MM

92015-1193

1
Out of stock

92037

CLAMP,HOSE CLIP

92037-1460

1
Out of stock

92037A

CLAMP

92037-3711

1
Out of stock

92093

SEAL,AIR FILTER

92093-1241

1
Out of stock

92093A

SEAL,DUST

92093-1322

1
Out of stock

92170

CLAMP

92170-1036

1

$8.51

In stock

92170A

CLAMP,AIR FILTER

92170-1211

1

$5.84

In stock

92170B

CLAMP

92170-1338

1

$10.58

In stock
