2007 Kawasaki Mule 2510 4X4 Optional Parts Diagram

← All diagrams

Find the part on the Optional Parts diagram for your 2007 Kawasaki Mule 2510 4X4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

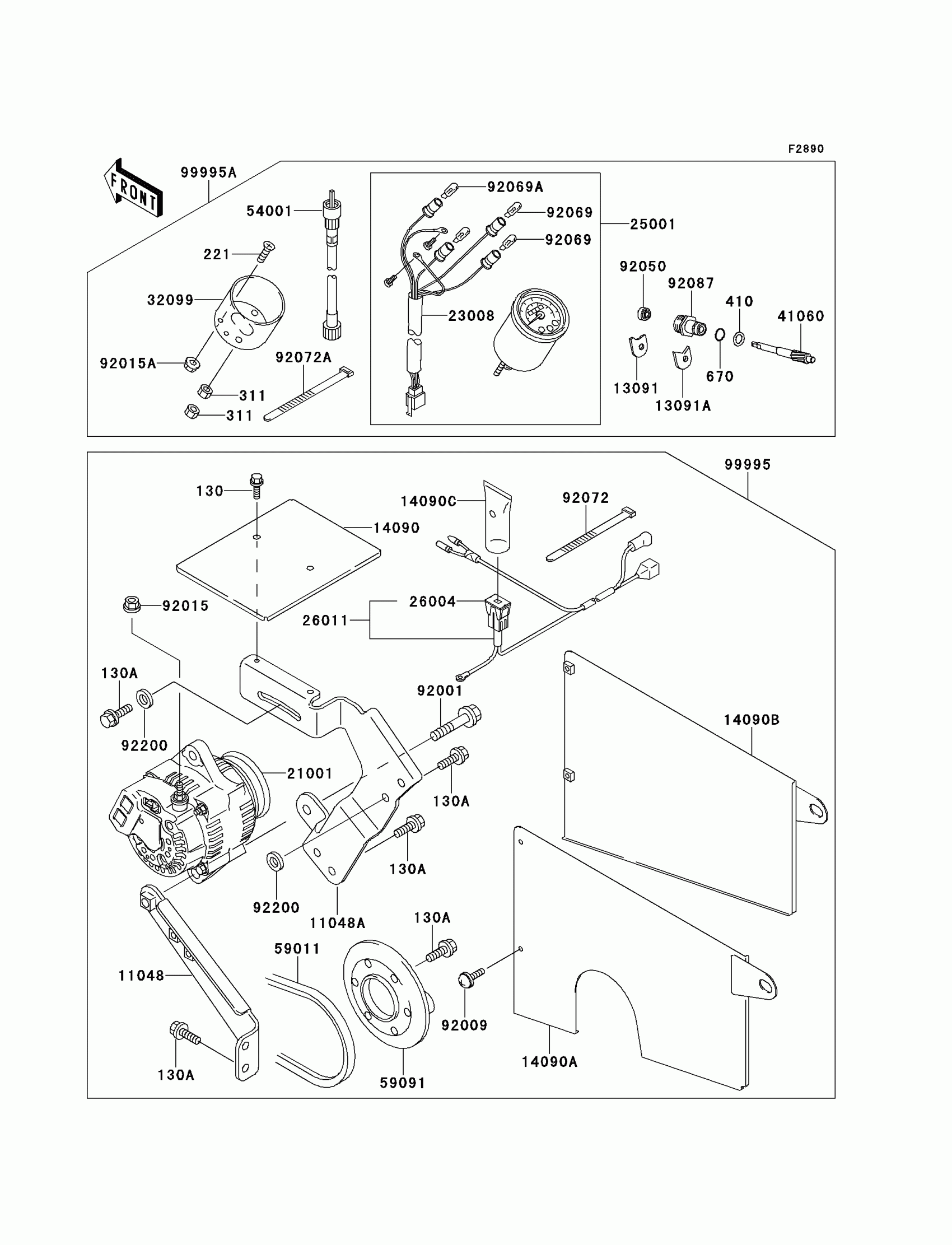

2007 Kawasaki Mule 2510 4X4 Optional Parts Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED

130C0608

1
Out of stock

130A

BOLT-FLANGED,8X20

130H0820

1
Out of stock

221

SCREW-CSK-CROS

221C0520

1
Out of stock

311

NUT-HEX

311B0500

1
Out of stock

410

WASHER-PLAIN-SMALL,6MM

410B0600

1
Out of stock

670

O RING,10MM

670D1510

1
Out of stock

11048

BRACKET,ENGINE,LWR

11048-1243

1
Out of stock

11048A

BRACKET,GENERATOR

11048-1244

1
Out of stock

13091

HOLDER,TACHOMETER2.3T

13091-1008

1
Out of stock

13091A

HOLDER,TACHOMETR,3.2T

13091-1009

1
Out of stock

14090

COVER,GENERATOR

14090-1347

1
Out of stock

14090A

COVER,ENCLOSURE,LH

14090-1354

1
Out of stock

14090B

COVER,ENCLOSURE,RH

14090-1355

1
Out of stock

14090C

COVER,FUSE

14090-1362

1
Out of stock

21001

GENERATOR

21001-1129

1
Out of stock

23008

SOCKET-ASSY,METER

23008-1355

1
Out of stock

25001

METER-ASSY,MPH

25001-1706

1
Out of stock

26004

FUSE-ASSY,50A

26004-1096

1
Out of stock

26011

WIRE-LEAD,GENERATOR

26011-1586

1
Out of stock

32099

CASE,SPEEDOMETER

32099-1145

1
Out of stock

41060

GEAR-METER SCREW

41060-1148

1
Out of stock

54001

CABLE-SPEEDOMETER

54001-1135

1
Out of stock

59011

BELT

59011-2056

1
Out of stock

59091

PULLEY

59091-2053

1
Out of stock

92001

BOLT,BLACK,10X47

92001-1522

1
Out of stock

92009

SCREW,6X16

92009-1621

1
Out of stock

92015

NUT,FLANGED,6MM

92015-1367

1
Out of stock

92015A

NUT,LOCK,FLANGED,5MM

92015-1752

1
Out of stock

92050

SEAL-OIL

92050-075

1
Out of stock

92069

BULB,12V 3.4W,T10

92069-1007

1
Out of stock

92069A

BULB,12V 1.7W,T10

92069-1059

1
Out of stock

92072

BAND,L=123

92072-030

1
Out of stock

92072A

BAND,L=140

92072-1293

1
Out of stock

92087

GUIDE,TACHOMETER GEAR

92087-010

1
Out of stock

92200

WASHER,8.5X20X2.3

92200-1055

1
Out of stock

99995

KIT.,ALTERNATOR

99995-1289

1
Out of stock

99995A

KIT.,SPEEDOMETER

99995-1298

1
Out of stock
