2007 Kawasaki Mule 2510 4X4 Accessory Diagram

← All diagrams

Find the part on the Accessory diagram for your 2007 Kawasaki Mule 2510 4X4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

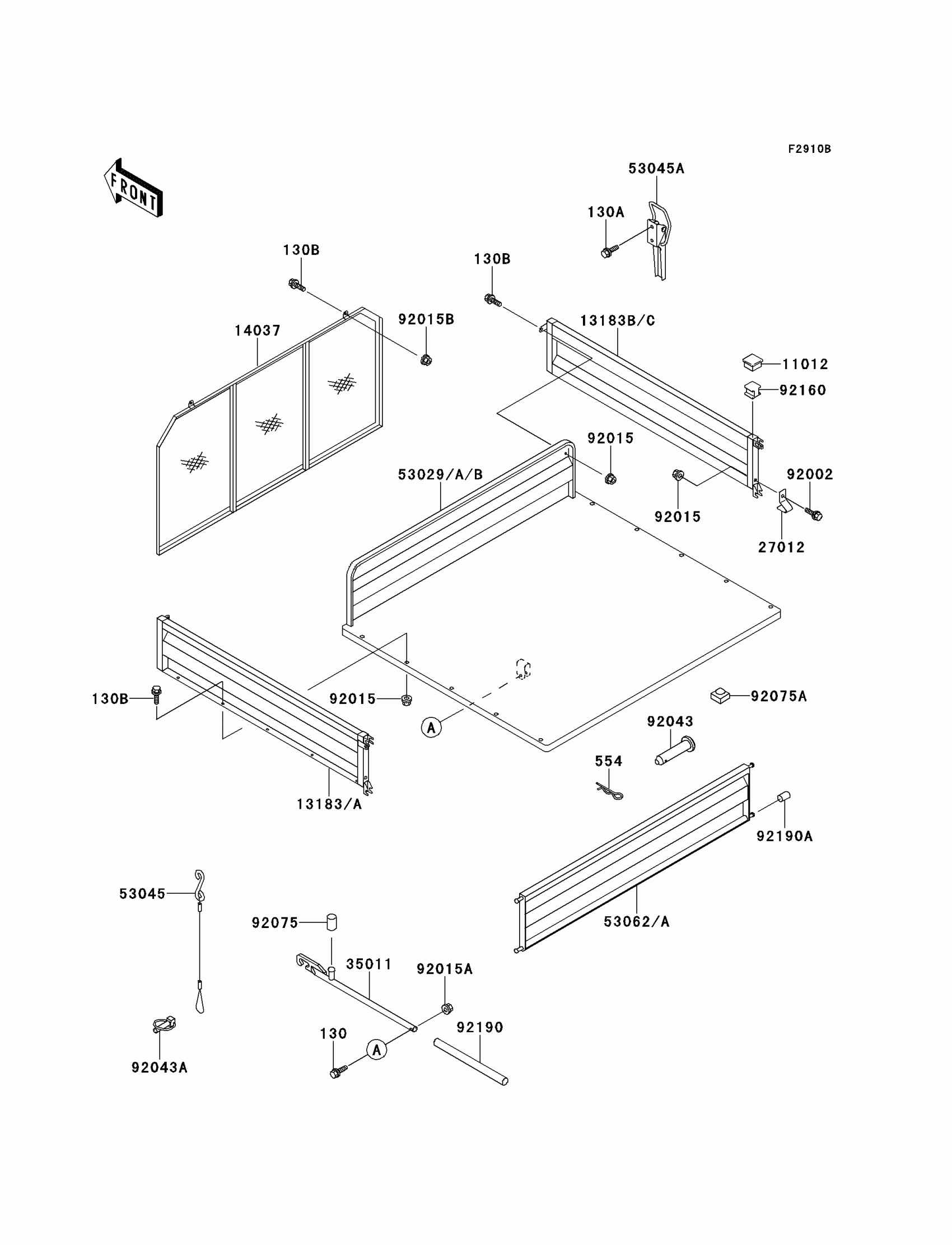

2007 Kawasaki Mule 2510 4X4 Accessory Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,6X30

130H0630

1
Out of stock

130A

BOLT-FLANGED,6X14,BLACK

130J0614

1
Out of stock

130B

BOLT-FLANGED,8X20

130J0820

1
Out of stock

554

PIN-SNAP,12MM

554A1200

1
Out of stock

11012

CAP

11012-1784

1

$5.00

In stock

13183

1

$254.03

In stock

13183B

1

$254.03

In stock

14037

SCREEN,REAR GUARD

14037-1163

1

$199.94

In stock

27012

HOOK,TAIL GATE

27012-1406

1

$5.09

In stock

35011

1

$29.46

In stock

53029

CARRIER,F.RED

53029-1138-B1

1

$1,111.45

In stock

53045

HOOK-ASSY,TALE GATE

53045-1060

1
Out of stock

53045A

HOOK-ASSY

53045-1063

1

$21.73

In stock

53062

GATE-TAIL,F.RED

53062-1004-B1

1
Out of stock

92002

BOLT,8X50

92002-1182

1

$8.75

In stock

92015

NUT,FLANGED,8MM

92015-1408

1

$4.27

In stock

92015A

1

$3.43

In stock

92015B

1

$3.70

In stock

92043

PIN,12X65

92043-1428

1

$8.01

In stock

92043A

PIN

92043-1490

1

$9.07

In stock

92075

DAMPER

92075-1817

1

$4.93

In stock

92075A

DAMPER

92075-1882

1

$6.44

In stock

92160

DAMPER

92160-1191

1
Out of stock

92190

TUBE,13X16X200

92190-1401

1

$4.63

In stock

92190A

TUBE,8X10X15

92190-1467

1

$3.51

In stock
