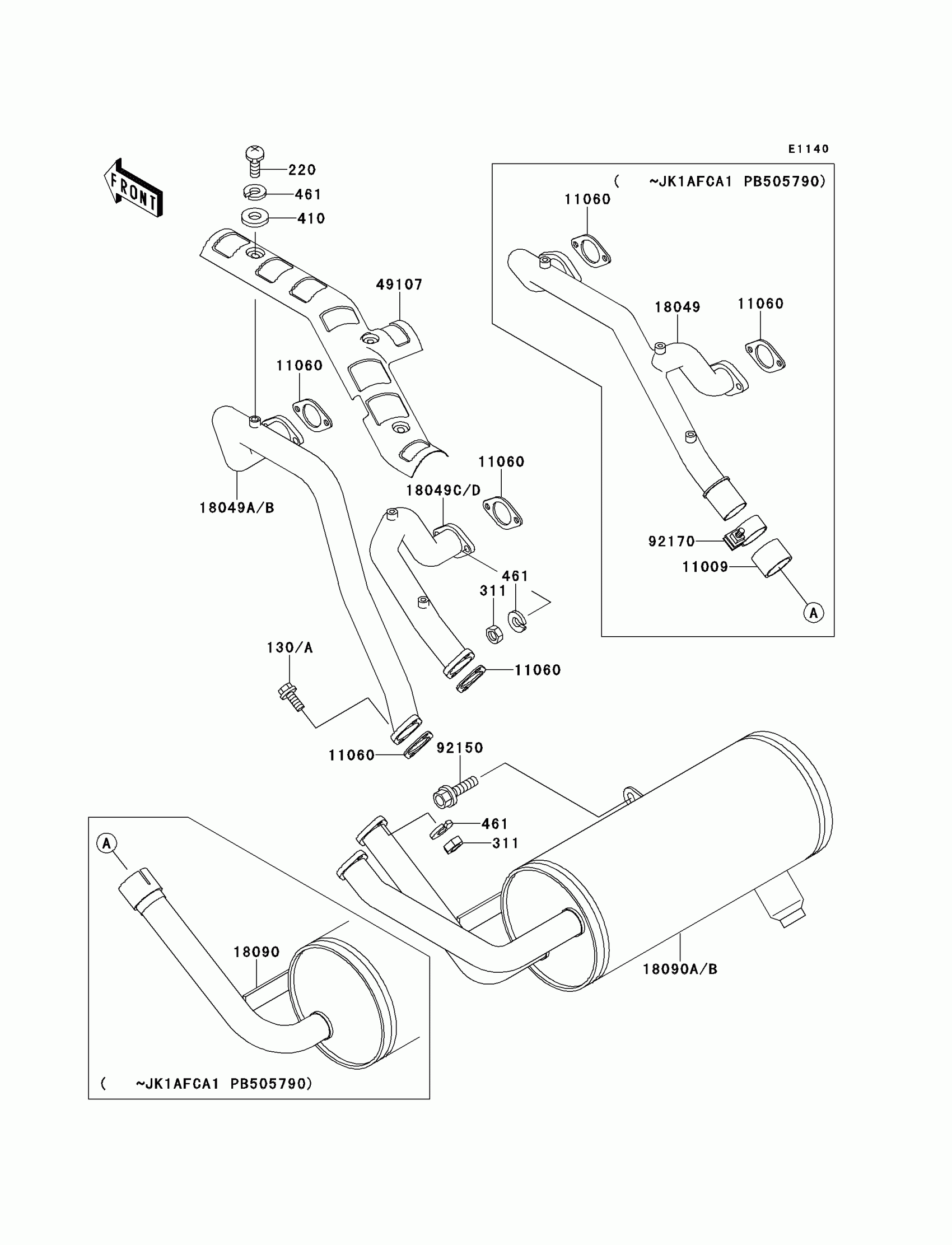

Kawasaki Mule 2510 4X4 Muffler(s) Diagram

Description

Price

130A

BOLT,FLANGED,6X25

130G0625

$1.17

220

SCREW-PAN-CROS,6X10,BLACK

220C0610

$1.81

311

NUT-HEX,6MM

311G0600

$2.19

410

WASHER-PLAIN-SMALL,6MM

410B0600

$1.31

461

WASHER SPRING 6MM

461F0600

$0.69

11009

GASKET,EXHAUST PIPE CONNECTING

11009-1718

$27.27

11060

GASKET,EXHAUST PIPE

11060-2079

$4.91

18049

PIPE-EXHAUST

18049-1620

$278.14

18049B

PIPE-EXHAUST,FR

18049-1735

Unavailable

18049D

PIPE-EXHAUST,RR

18049-1736

$82.27

18090

BODY-COMP-MUFFLER

18090-1220

$243.21

18090B

BODY-COMP-MUFFLER

18090-1451

$209.23

49107

COVER-EXHAUST PIPE

49107-1089

$71.83

92150

BOLT

92150-1158

$5.47

92170

CLAMP,MUFFLER

92170-1454

$11.71
