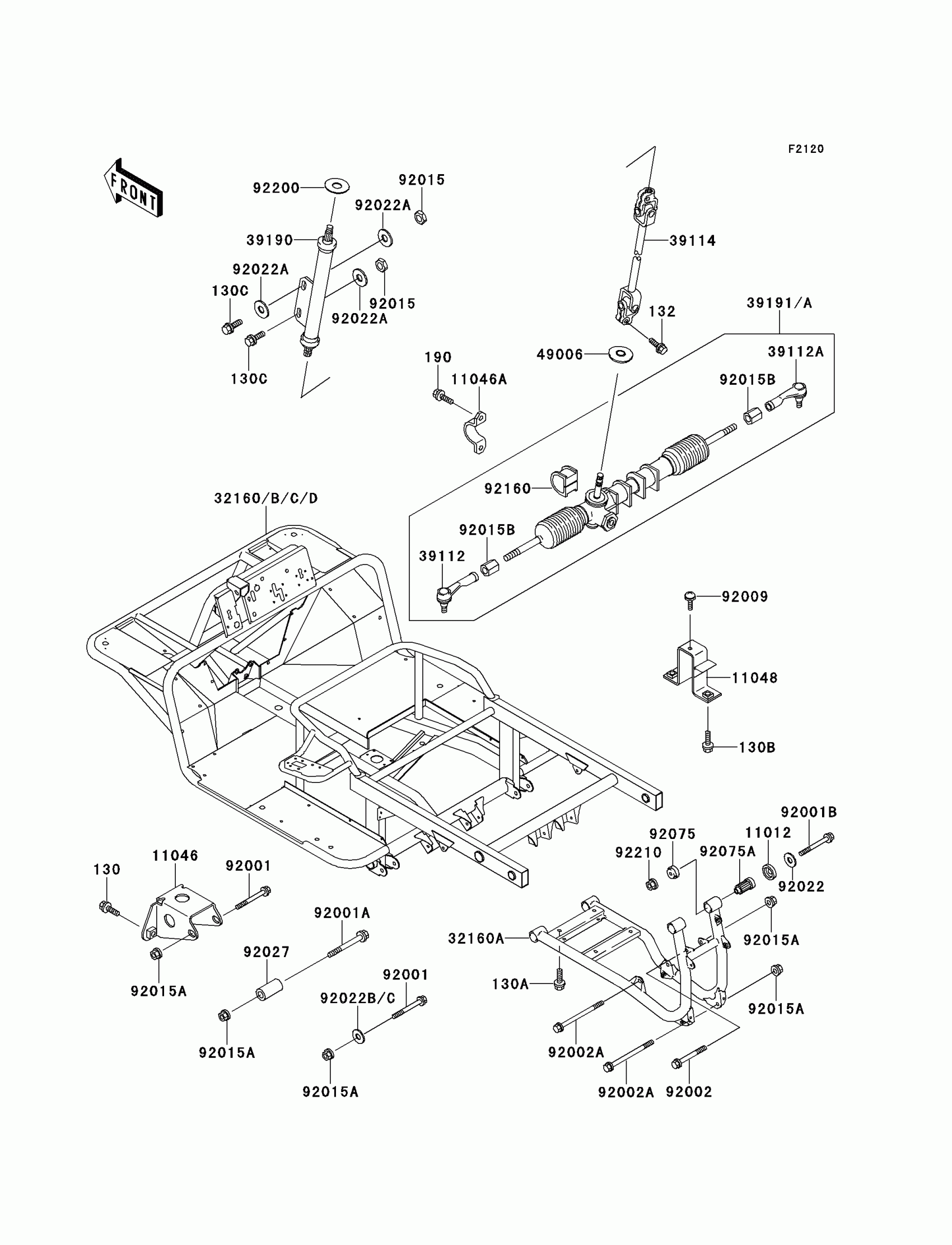

Kawasaki Mule 2510 4X4 Frame Diagram
#
130
BOLT-FLANGED,10X20
130G1020
$3.14
130A
BOLT-FLANGED,8X20
130H0820
$4.06
130B
BOLT-FLANGED,8X20
130J0820
$0.83
130C
BOLT-FLANGED,10X30
130J1030
$6.10
132
BOLT-FLANGED-SMALL,8X25
132J0825
$3.84
190
BOLT-UPSET-WS
190H1025
$4.93
11012
CAP,ENGINE BRACKET
11012-1228
$7.61
11046
BRACKET,FRONT DIFF
11046-1684
Unavailable
11046A
BRACKET,STEERING GEAR
11046-1858
Unavailable
11048
BRACKET,REAR FRAME
11048-1245
$26.09
32160
FRAME-COMP,MAIN
32160-1264
$1,840.55
32160A
FRAME-COMP,RR
32160-1265
Unavailable
39112
RODEND-TIE,STEERING GEAR,LH
39112-1068
$96.05
39112A
RODEND-TIE,STEERING GEAR,RH
39112-1069
$96.05
39114
SHAFT-COMP-STRG
39114-1070
$319.63
39190
SHAFT-ASSY-STEERING
39190-1003
$231.78
39191
GEAR-ASSY-STEERING
39191-1004
$1,066.48
49006
BOOT,STEERING SHAFT,LWR
49006-1255
$34.90
92001
BOLT,FLANGED,10X70
92001-1600
$10.37
92001A
BOLT,FLANGED,10X115
92001-1603
$10.65
92001B
BOLT,FLANGED,10X85
92001-1619
$8.10
92002
BOLT,FLANGED,10X80
92002-1764
$7.45
92002A
BOLT,FLANGED,10X145
92002-1765
$11.37
92009
SCREW,6X14
92009-1288
$3.92
92015
NUT,LOCK,10MM,BLACK
92015-1189
$7.34
92015A
NUT,LOCK,10MM
92015-1597
$5.52
92015B
NUT
92015-1864
$14.39
92022
WASHER,PLAIN,10M/M
92022-137
Unavailable
92022A
WASHER,10.5X26X2.3,BLACK
92022-1396
$3.21
92022B
WASHER,10.2X20X0.5
92022-1649
Unavailable
92022C
WASHER,10.5X20X1
92022-239
Unavailable
92027
COLLAR,11X20X39
92027-1518
$19.28
92075
DAMPER,ENGINE MOUNT,SIDE
92075-1274
$17.60
92075A
DAMPER,ENGINE MOUNT,MAIN
92075-1377
$30.82
92160
DAMPER,STEERING GEAR
92160-1084
$31.96
92200
WASHER,15X45X0.6
92200-1130
$4.43
92210
NUT,LOCK,FLANGED,10MM
92210-1081
$12.35
