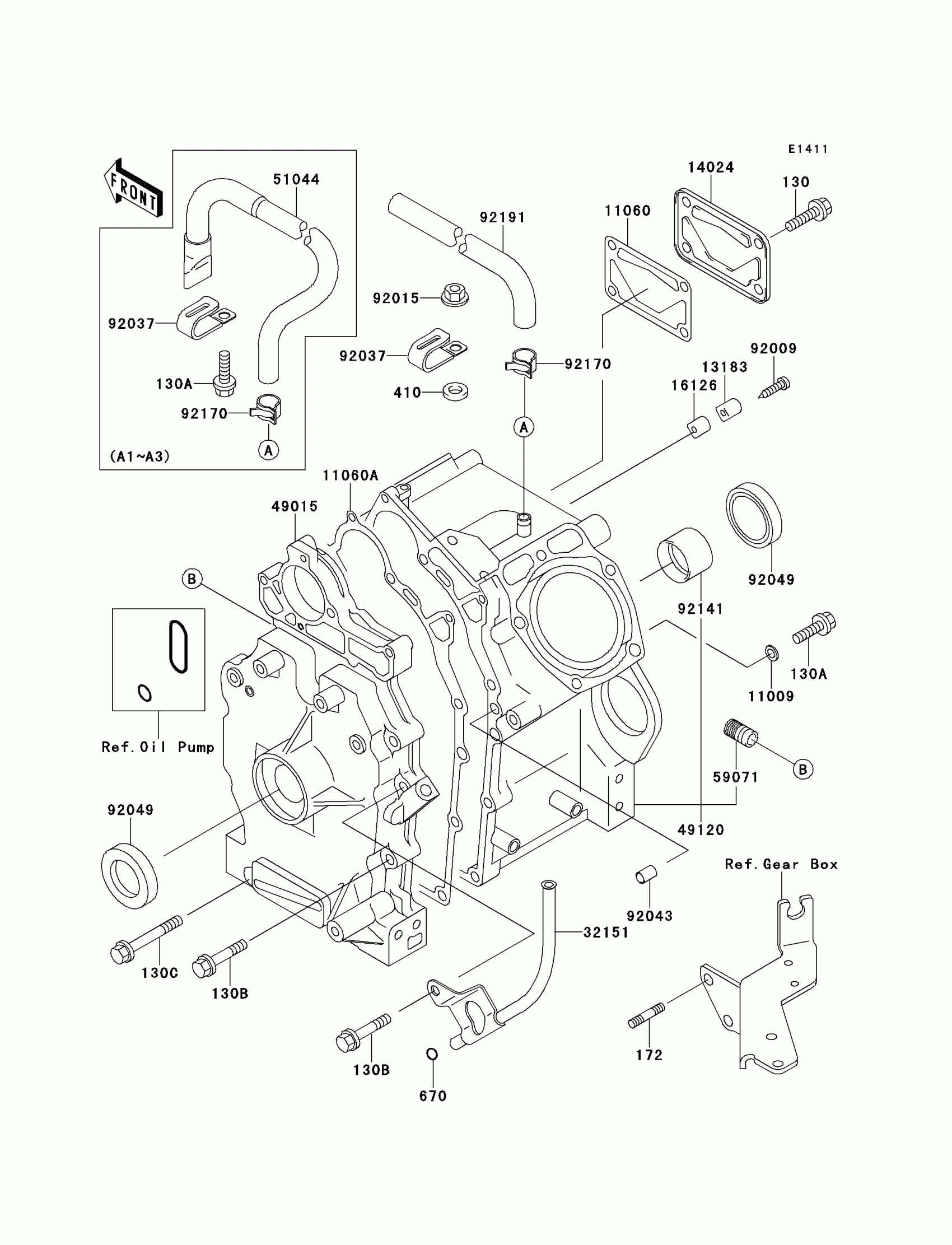

Kawasaki Mule 2510 4X4 Crankcase Diagram

#

Description
Price

130

BOLT-FLANGED,8X16

130B0816

$0.83

130A

BOLT-FLANGED,8X12,BLACK

130C0812

$0.72

130B

BOLT-FLANGED,8X45

130G0845

$1.58

130C

BOLT-FLANGED,8X60

130G0860

$1.63

172

BOLT-STUD,8X25

172G0825

$3.70

670

O RING,10MM

670B2010

$1.50

11009

GASKET

11009-3028

$0.70

11060

GASKET,BREATHER,COVER

11060-2089

$3.75

11060A

GASKET,CRANKCASE COVER

11060-2284

Unavailable

13183

PLATE

13183-2120

$0.43

14024

COVER

14024-2292

$4.15

16126

VALVE

16126-2146

$0.62

32151

PIPE,OIL GAUGE,F.BLACK

32151-2032-9H

$32.53

49015

COVER-CRANKCASE

49015-6193

Unavailable

49120

CRANKCASE-COMP

49120-6078

Unavailable

51044

TUBE-ASSY

51044-2080

Unavailable

59071

JOINT

59071-2079

$6.36

92009

SCREW

92009-2308

$0.43

92037

CLAMP

92037-2101

$1.56

92043

PIN,DOWEL,10X14

92043-1037

$0.74

92049

SEAL-OIL

92049-2110

Unavailable

92141

BEARING-PLANE

92141-2110

Unavailable

92170

CLAMP

92170-3714

$1.48
