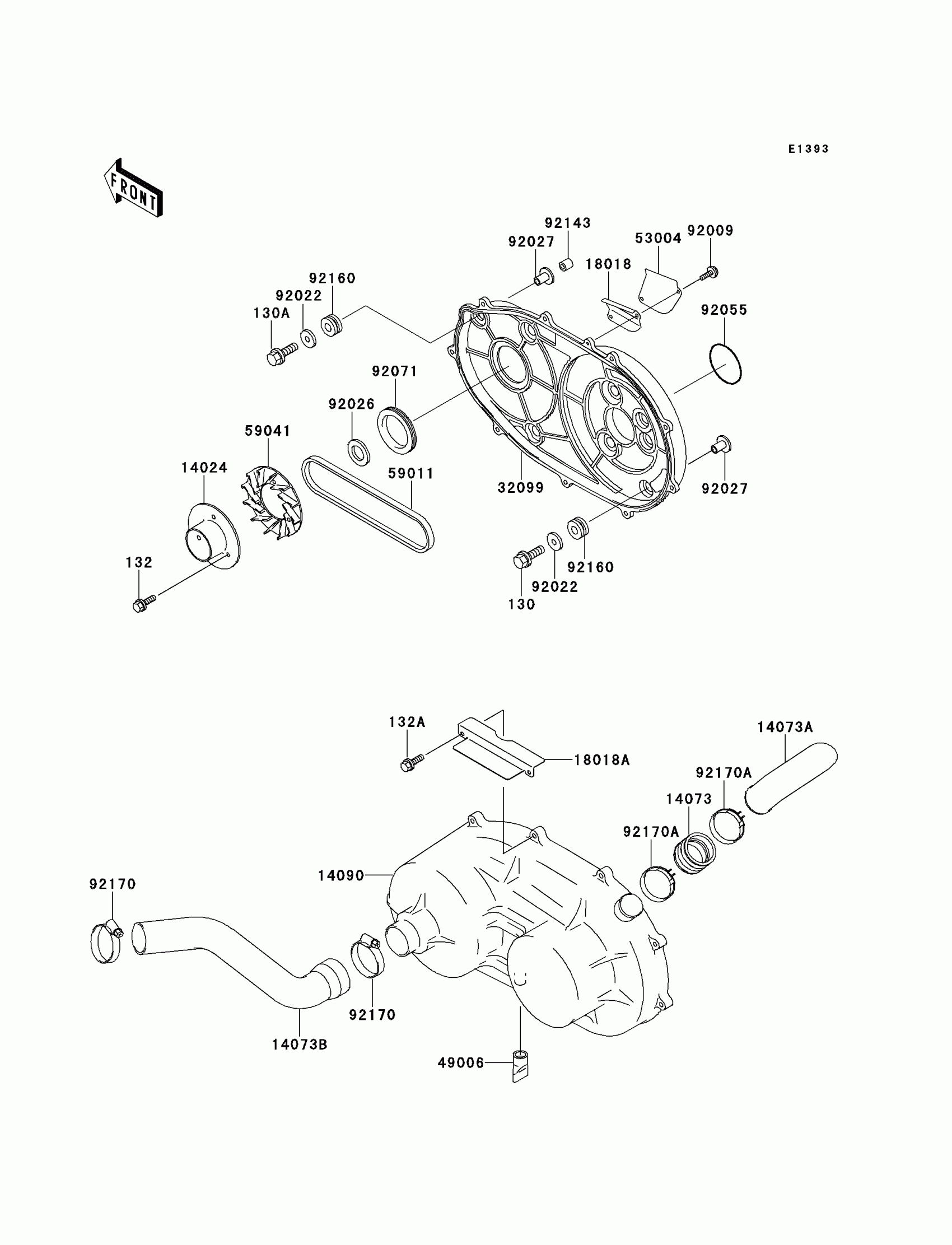

Kawasaki Mule 2510 4X4 Converter Cover/Drive Belt Diagram

Description

Price

130

BOLT-FLANGED,8X25,BLACK

130J0825

$4.15

130A

BOLT-FLANGED,8X45

130J0845

$3.05

132

BOLT-FLANGED-SMALL,6X30

132G0630

$2.48

132A

BOLT-FLANGED-SMALL,6X30

132J0630

$3.84

14024

COVER,FAN

14024-1554

$41.67

14073

DUCT

14073-1324

$10.67

14073A

DUCT,CONVERTER OUTLET

14073-1573

$38.16

14073B

DUCT,CONVERTER INTAKE

14073-1603

$35.59

14090

COVER,BELT CONVERTER

14090-1239

$165.19

18018

PLATE-HEAT GUARD

18018-1092

$13.16

18018A

PLATE-HEAT GUARD

18018-1118

$16.98

32099

CASE,BELT CONVERTER

32099-1140

Unavailable

49006

BOOT

49006-1199

$8.64

53004

MAT,GUARD PLATE

53004-1079

$16.73

59011

BELT

59011-1057

$61.98

59041

FAN

59041-1053

$43.68

92009

SCREW,TAPPING,5X10

92009-1332

$3.92

92022

WASHER SEAL PLATE

92022-101

$4.31

92026

SPACER

92026-1301

$19.47

92027

COLLAR

92027-4015

$10.65

92055

RING-O,CRANKCASE SIDE

92055-1395

$4.87

92071

GROMMET,CONVERTER CASE

92071-1212

$10.00

92143

COLLAR,8.5X16X17

92143-1602

$6.27

92160

DAMPER

92160-1012

$5.52

92170

CLAMP

92170-1338

$11.05

92170A

CLAMP

92170-1448

$8.10
