Carburetor(-AF620A-509264)

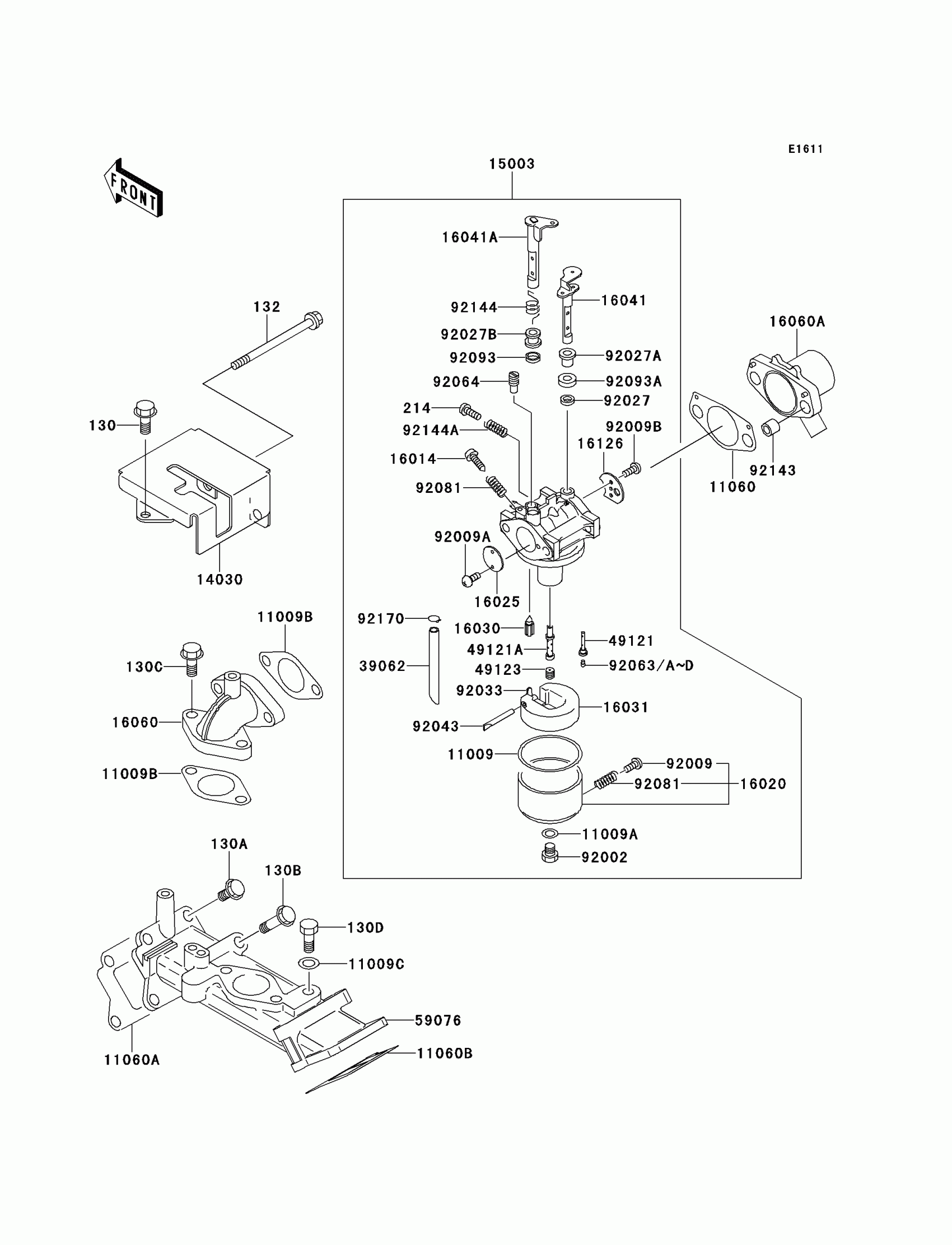

Kawasaki Mule 2510 4X4 Carburetor(-AF620A-509264) Diagram
#
11009
GASKET,FLOAT CHAMBER
11009-2024
$4.15
11009A
GASKET
11009-2087
Unavailable
11009B
GASKET
11009-2944
Unavailable
11009C
GASKET
11009-3028
$0.70
11060
GASKET
11060-2086
$2.91
11060A
GASKET,INTAKE MANIFOLD
11060-2087
$3.36
11060B
GASKET,INTAKE MANIFOLD
11060-2088
$2.83
14030
COVER-CARBURETOR,F.BLACK
14030-2058-9H
Unavailable
15003
CARBURETOR-ASSY.
15003-2260
$413.26
16014
SCREW-PILOT AIR
16014-2067
$19.94
16020
CHAMBER-FLOAT
16020-2094
$47.09
16025
VALVE-THROTTLE
16025-2168
$11.57
16030
VALVE-FLOAT
16030-2067
$26.09
16031
FLOAT
16031-2066
$27.00
16041
SHAFT-CARBURETOR
16041-2220
Unavailable
16041A
SHAFT-CARBURETOR
16041-2229
$40.06
16060
PIPE-INTAKE
16060-2175
$56.15
16060A
PIPE-INTAKE
16060-2176
$11.45
16126
VALVE,CHOKE
16126-2193
Unavailable
39062
HOSE-COOLING
39062-2060
$3.96
49121
NOZZLE-MAIN
49121-2101
$31.74
49121A
NOZZLE-MAIN
49121-2185
$55.97
49123
HOLDER-MAIN JET
49123-2065
$26.74
59076
MANIFOLD-INTAKE
59076-2058
$54.11
92002
BOLT,MAIN JET
92002-2009
$10.32
92009
SCREW,DRAIN
92009-2015
$4.94
92009A
SCREW,THROTTLE VALVE
92009-2080
$1.96
92009B
SCREW,CHOKE VALVE
92009-2081
$1.72
92027
COLLAR
92027-2003
$3.86
92027A
COLLAR
92027-2004
$5.44
92027B
COLLAR,THROTTLE SHAFT
92027-2025
$3.96
92033
RING-SNAP
92033-2067
$3.64
92043
PIN,FLOAT
92043-2006
$3.06
92063
JET-MAIN #115
92063-141
Unavailable
92063A
JET-MAIN,#112.5
92063-2010
Unavailable
92063B
JET-MAIN,#110
92063-2099
Unavailable
92063C
JET-MAIN,#107.5
92063-2100
Unavailable
130
BOLT-FLANGED,6X10
130B0610
$0.48
130A
BOLT,FLANGED,6X20
130B0620
$1.69
130B
BOLT-FLANGED,6X45
130B0645
$0.86
130C
BOLT-FLANGED,8X20
130B0820
$0.67
130D
BOLT-FLANGED,8X12,BLACK
130C0812
$0.72
132
BOLT-FLANGED-SMALL
132J0880
$2.49
214
SCREW-PAN+-
214B0414
$0.70
92063D
JET-MAIN,#105
92063-2142
Unavailable
92064
JET-PILOT
92064-2001
Unavailable
92081
SPRING
92081-2009
$2.78
92093
SEAL
92093-2082
$1.90
92093A
SEAL
92093-2101
$3.17
92143
COLLAR,8.2X10X8.5
92143-2201
$0.85
92144
SPRING
92144-2339
$9.13
92144A
SPRING
92144-2342
$8.35
92170
CLAMP
92170-2023
$1.83
