2007 Kawasaki Mule 2510 4X4 Brake Piping Diagram

← All diagrams

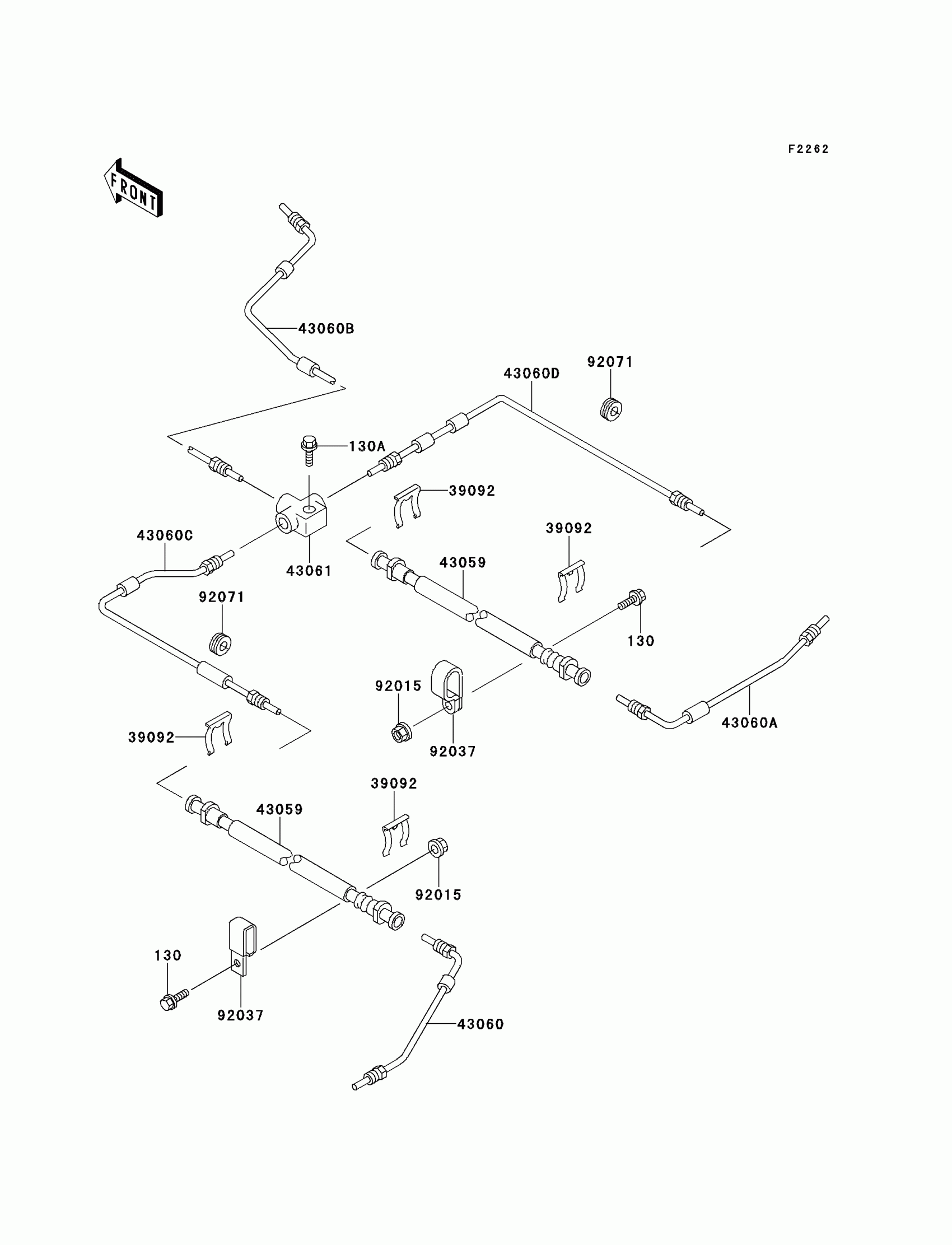

Find the part on the Brake Piping diagram for your 2007 Kawasaki Mule 2510 4X4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2007 Kawasaki Mule 2510 4X4 Brake Piping Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,6X20

130D0620

1
Out of stock

130A

BOLT-FLANGED,8X30

130D0830

1
Out of stock

39092

PIN-HAIR

39092-1052

1
Out of stock

43059

HOSE-BRAKE,RR

43059-1490

1
Out of stock

43060

PIPE-BRAKE,RR,LH

43060-1083

1
Out of stock

43060A

PIPE-BRAKE,RR,RH

43060-1084

1
Out of stock

43060B

PIPE-BRAKE,RR,FR

43060-1085

1
Out of stock

43060C

PIPE-BRAKE,MIDDLE,LH

43060-1086

1
Out of stock

43060D

PIPE-BRAKE,MIDDLE,RH

43060-1094

1
Out of stock

43061

JOINT-BRAKE

43061-1063

1
Out of stock

92015

NUT,LOCK,FLANGED,6MM

92015-1675

1
Out of stock

92037

CLAMP

92037-1608

1
Out of stock

92071

GROMMET

92071-1152

1
Out of stock
