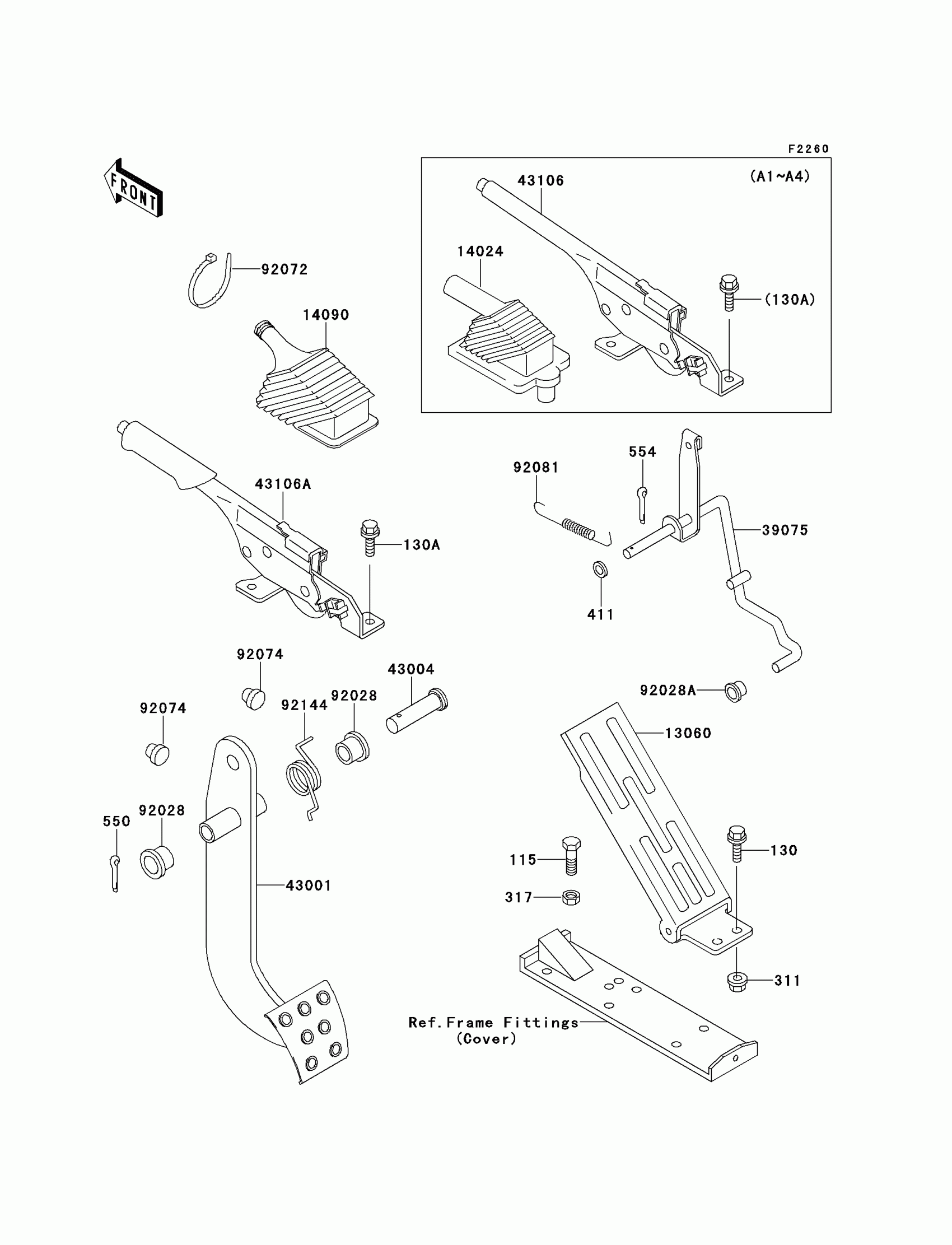

Kawasaki Mule 2510 4X4 Brake Pedal/Throttle Lever Diagram

Description

Price

115

BOLT-SMALL-UPSET,8X40

115D0840

Unavailable

130

BOLT-FLANGED,6X12

130C0612

Unavailable

130A

BOLT-FLANGED

130D0816

Unavailable

311

NUT-HEX,6MM,BLACK

311C0600

Unavailable

317

NUT-HEX-SMALL,8MM

317H0800

Unavailable

411

WASHER-PLAIN,10MM

411E1000

$0.76

550

PIN-COTTER,2.5X25

550D2525

Unavailable

554

PIN-SNAP,10MM

554A1000

$0.73

13060

PEDAL,THROTTLE

13060-1061

$48.96

14024

COVER,PARKING LEVER

14024-1785

Unavailable

39075

LEVER-THROTTLE

39075-1057

$74.21

43001

LEVER-BRAKE,PEDAL

43001-1320

$58.67

43004

SHAFT-BRAKE

43004-1128

$16.64

43106

LEVER-ASSY-PARKING BRAKE

43106-1001

Unavailable

92028

BUSHING

92028-1571

$10.27

92028A

BUSHING,THROTTLE LEVER

92028-1601

Unavailable

92074

PLUG,7X2

92074-028

$3.81

92081

SPRING,BRAKE LEVER RETURN

92081-1922

$4.64

92144

SPRING

92144-1536

$6.33
