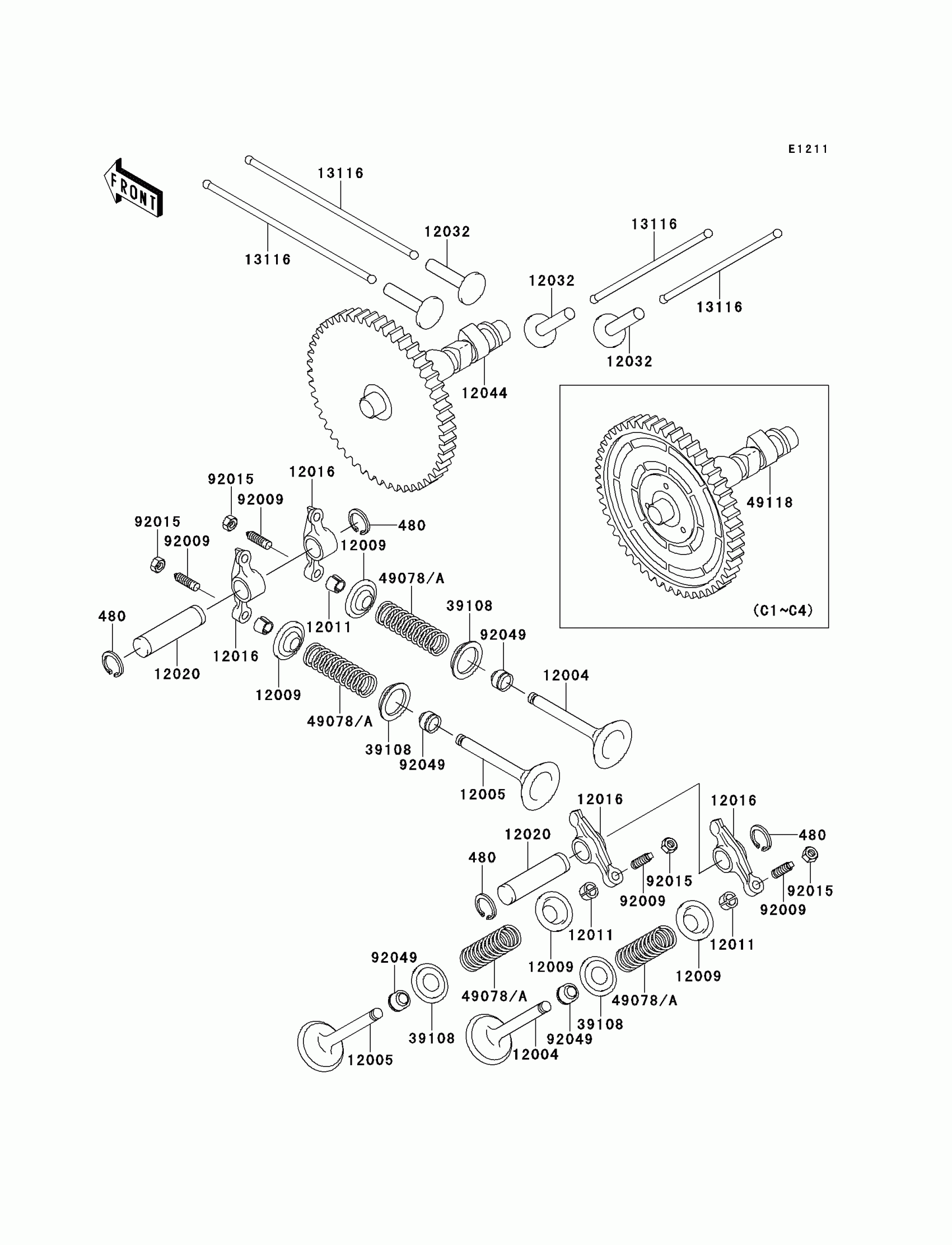

Kawasaki Mule 2500 Valve(s)/Camshaft(s) Diagram

Description

Price

480

CIRCLIP-TYPE-C,12MM

480J1200

$0.62

12004

VALVE-INTAKE

12004-2104

Unavailable

12005

VALVE-EXHAUST

12005-2093

$28.83

12009

RETAINER-VALVE SPRING

12009-2067

$3.36

12011

COLLET

12011-2056

$2.51

12016

ARM-ROCKER

12016-2056

$18.01

12020

SHAFT-ROCKER

12020-2059

$4.91

12032

TAPPET

12032-2064

$10.66

13116

ROD-PUSH

13116-2057

$4.28

39108

RETAINER-SPRING

39108-2057

$0.62

49078

SPRING-ENGINE VALVE

49078-2071

Unavailable

49118

CAMSHAFT-COMP

49118-2082

$159.41

92009

SCREW,VALVE ADJUST

92009-1109

$2.29

92015

NUT,VALVE ADJUST LOCK

92015-1137

$1.00

92049

SEAL-OIL

92049-2109

$5.32
