2007 Kawasaki Mule 2500 Gear Change Mechanism Diagram

← All diagrams

Find the part on the Gear Change Mechanism diagram for your 2007 Kawasaki Mule 2500, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

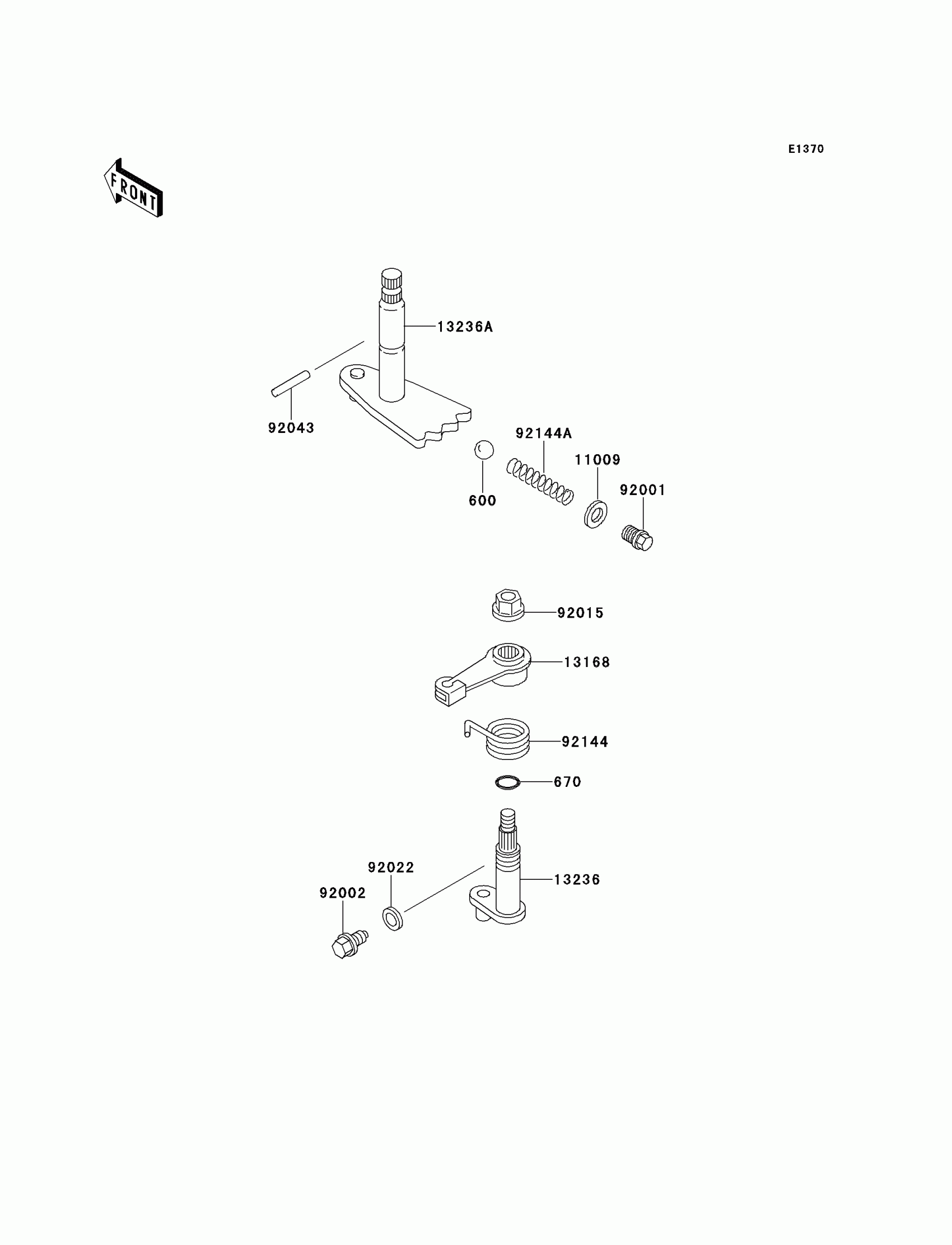

2007 Kawasaki Mule 2500 Gear Change Mechanism Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

600

BALL-STEEL,13/32"

600A1300

1
Out of stock

670

O RING,10MM

670B2010

1
Out of stock

11009

GASKET,15.5X22X1

11009-1008

1
Out of stock

13168

LEVER,DIFF LOCK

13168-1523

1
Out of stock

13236

LEVER-COMP,DIFF LOCK

13236-1219

1
Out of stock

13236A

LEVER-COMP,CHANGE,FR/RR

13236-1248

1
Out of stock

92001

BOLT,NEUTRAL POSITION

92001-1037

1
Out of stock

92002

BOLT,FLANGED-SMALL,6X8.1X2.5

92002-1962

1
Out of stock

92015

NUT,FLANGED,8MM

92015-1406

1
Out of stock

92022

WASHER OIL PUMP BANJO

92022-077

1
Out of stock

92043

PIN

92043-1415

1
Out of stock

92144

SPRING,LOCK LEVER

92144-1198

1
Out of stock

92144A

SPRING,CHANGE LEVER,FR/RR

92144-1702

1
Out of stock
← Gear Box Transmission →

More Drive & Transmission diagrams
