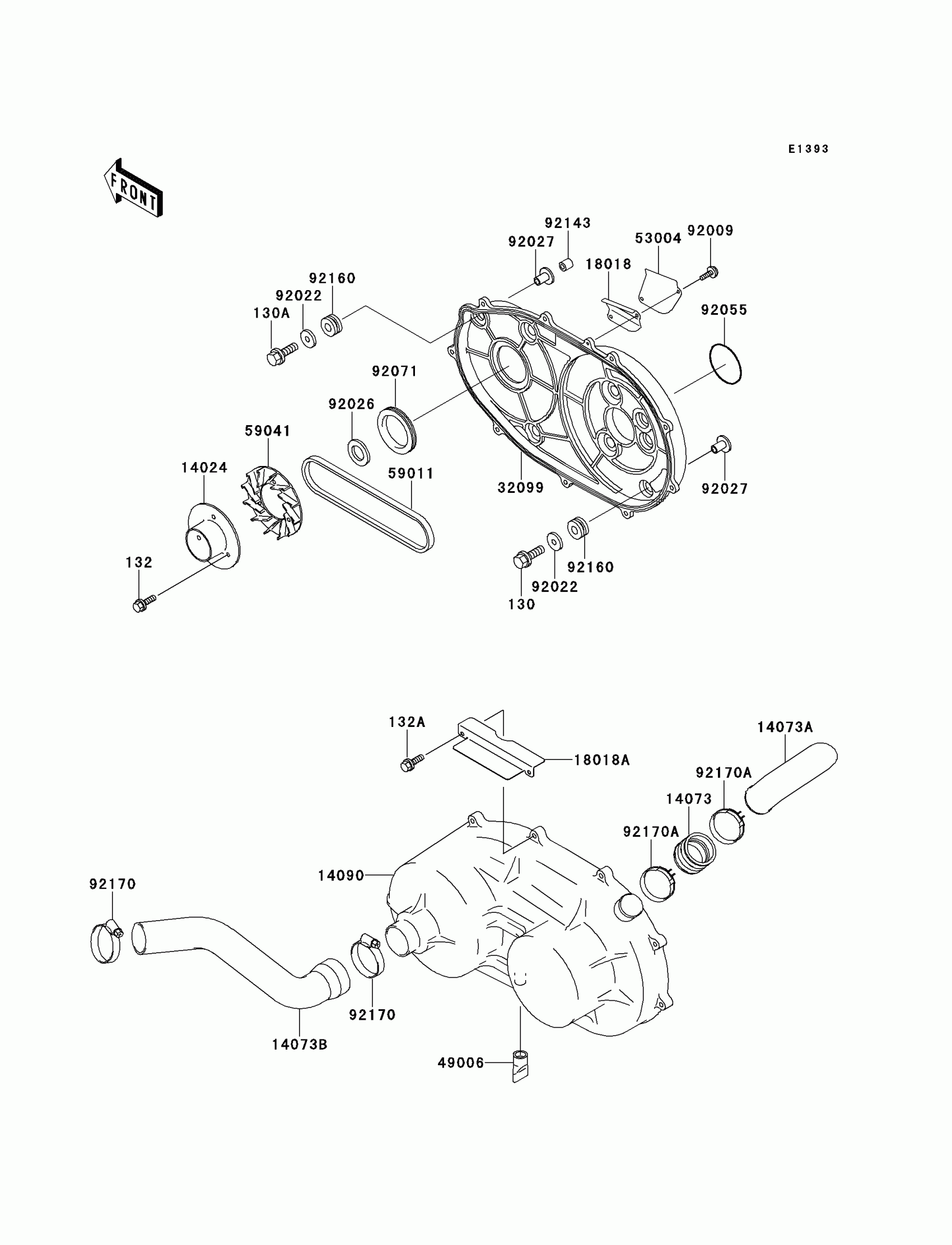

Kawasaki Mule 2500 Converter Cover/Drive Belt Diagram

Description

Price

130

BOLT-FLANGED,8X25,BLACK

130J0825

Unavailable

130A

BOLT-FLANGED,8X45

130J0845

Unavailable

132

BOLT-FLANGED-SMALL,6X30

132G0630

Unavailable

132A

BOLT-FLANGED-SMALL,6X30

132J0630

Unavailable

14024

COVER,FAN

14024-1554

$42.47

14073

DUCT

14073-1324

$8.11

14073A

DUCT,CONVERTER OUTLET

14073-1573

$38.89

14073B

DUCT,CONVERTER INTAKE

14073-1603

$36.23

14090

COVER,BELT CONVERTER

14090-1239

$158.08

18018

PLATE-HEAT GUARD

18018-1092

$12.54

18018A

PLATE-HEAT GUARD

18018-1118

$12.82

32099

CASE,BELT CONVERTER

32099-1140

Unavailable

49006

BOOT

49006-1199

$6.58

53004

MAT,GUARD PLATE

53004-1079

$12.69

59011

BELT

59011-1057

$56.39

59041

FAN

59041-1053

$44.53

92009

SCREW,TAPPING,5X10

92009-1332

$2.99

92022

WASHER SEAL PLATE

92022-101

$3.85

92026

SPACER

92026-1301

Unavailable

92027

COLLAR

92027-4015

$8.10

92055

RING-O,CRANKCASE SIDE

92055-1395

$3.71

92071

GROMMET,CONVERTER CASE

92071-1212

$7.62

92143

COLLAR,8.5X16X17

92143-1602

$5.44

92160

DAMPER

92160-1012

$4.18

92170

CLAMP

92170-1338

$10.58

92170A

CLAMP

92170-1448

$6.18
