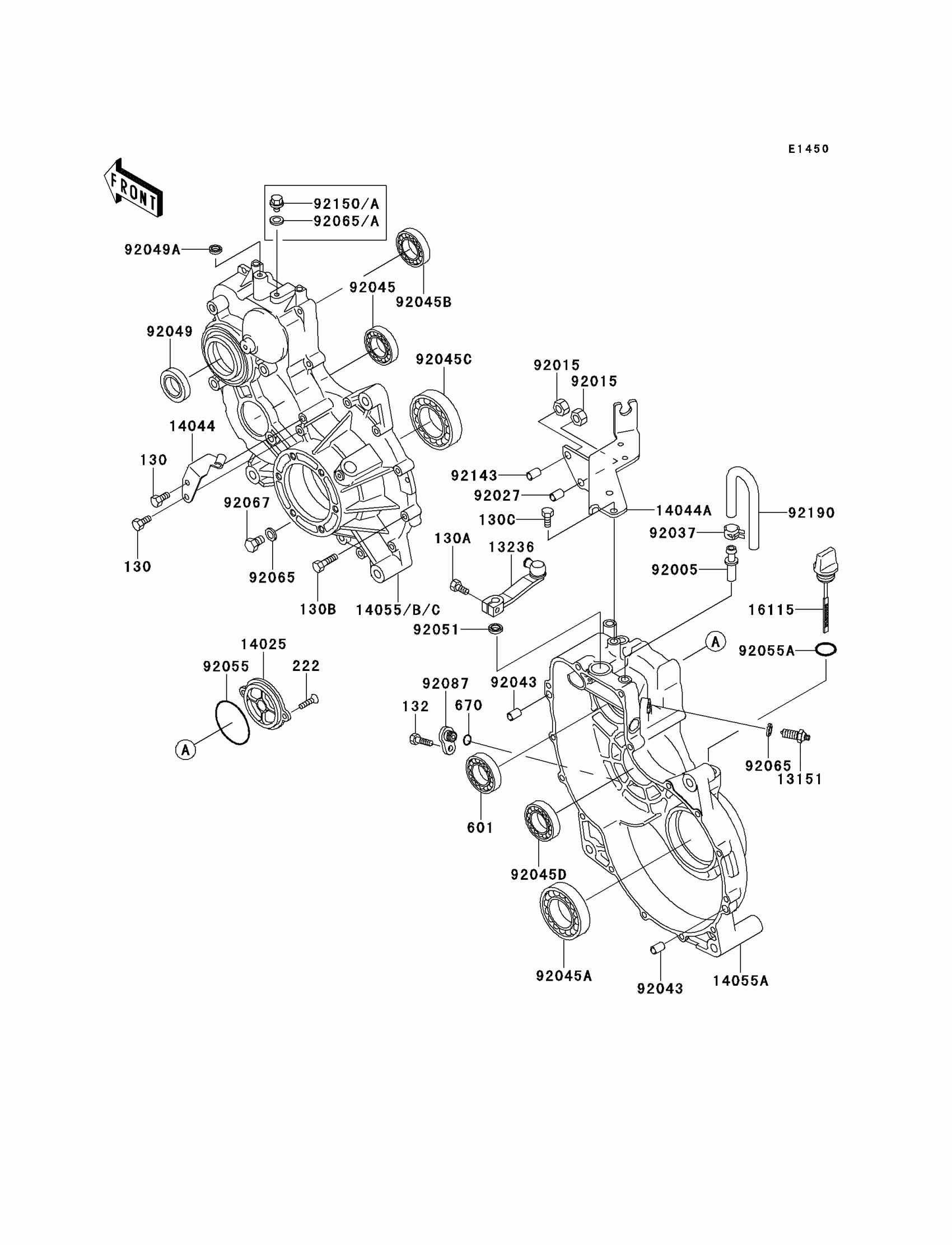

Kawasaki Mule 2500 Gear Box Diagram
#
130
BOLT-FLANGED,6X14
130D0614
Unavailable
130A
BOLT-FLANGED
130H0620
$1.69
130B
BOLT,FLANGED,6X35
130H0635
$0.93
13151
SWITCH-COMP,NEUTRAL
13151-1069
$27.37
13236
LEVER-COMP,CHANGE
13236-1246
$58.82
14025
COVER
14025-1813
$33.38
14044
HOLDER-CABLE
14044-1065
Unavailable
14044A
HOLDER-CABLE,FR/RR
14044-1074
$75.92
14055
CASE-GEAR,LH
14055-1109
$220.60
14055A
CASE-GEAR,RH
14055-1112
Unavailable
14055C
CASE-GEAR,LH
14055-1123
$281.37
16115
CAP-OIL FILLER
16115-1060
$12.18
92005
FITTING,BREATHER
92005-1127
$17.17
92015
NUT,8MM
92015-1432
$6.57
92027
COLLAR,8.8X12X9
92027-1568
$1.66
92037
CLAMP,TUBE
92037-1505
$4.76
92043
PIN,6.2X8X14
92043-1263
$0.43
92045
BEARING-BALL,TMB304CCM
92045-1142
$40.43
92045A
BEARING-BALL
92045-1162
$52.37
92045B
BEARING-BALL,62/28
92045-1207
$19.03
92045C
BEARING-BALL,6210CM
92045-1213
$55.61
92045D
BEARING-BALL,TMB205JR2
92045-1285
$27.65
92049
SEAL-OIL,TC28X47X7
92049-1297
$14.90
92049A
SEAL-OIL,VC-6X10X2.5
92049-2097
$2.13
92051
SEAL-OIL,TB13225.5
92051-005
$7.74
92055
RING-O,55MM
92055-1120
$5.52
92055A
RING-O,20X3
92055-2185
$1.03
92065
GASKET,10.5X16X1
92065-058
$3.96
92065A
GASKET,10.5X16X1
92065-058
$3.96
92067
PLUG,DRAIN,10X12
92067-001
$4.41
92087
BUSHING-METER GEAR
92087-1058
$8.03
92143
COLLAR,8.5X15X9
92143-1642
$5.29
92150A
BOLT,FLANGED,10X10
92150-1900
$7.52
92190
TUBE
92190-3807
$6.02
130C
BOLT-FLANGED,8X20
130H0820
$4.06
132
BOLT-FLANGED-SMALL
132J0614
$2.33
222
SCREW-CSK-RD-CROS
222B0614
$3.46
601
BEARING-BALL,#6007C3
601B6007
$27.06
670
O RING,10MM
670D1510
$4.69
