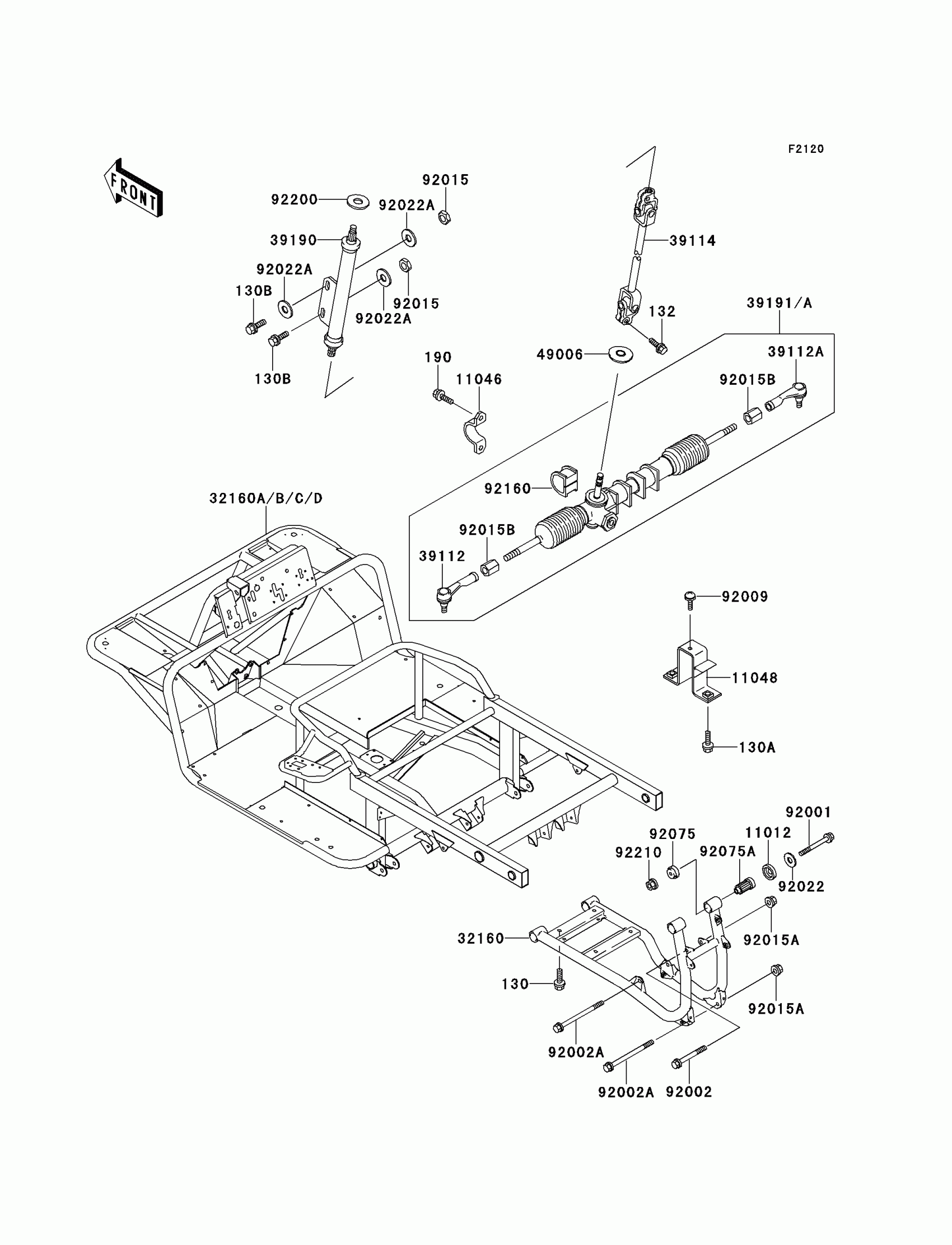

Kawasaki Mule 2500 Frame Diagram

#

Description
Price

130

BOLT-FLANGED,8X20

130H0820

$4.06

130A

BOLT-FLANGED,8X20

130J0820

$0.83

130B

BOLT-FLANGED,10X30

130J1030

$6.10

132

BOLT-FLANGED-SMALL,8X25

132J0825

$3.84

190

BOLT-UPSET-WS

190H1025

$4.93

11012

CAP,ENGINE BRACKET

11012-1228

$7.61

11046

BRACKET,STEERING GEAR

11046-1858

Unavailable

11048

BRACKET,REAR FRAME

11048-1245

$26.09

32160

FRAME-COMP,RR

32160-1265

Unavailable

32160A

FRAME-COMP,MAIN

32160-1305

$1,840.55

39112

RODEND-TIE,STEERING GEAR,LH

39112-1068

$96.05

39112A

RODEND-TIE,STEERING GEAR,RH

39112-1069

$96.05

39114

SHAFT-COMP-STRG

39114-1070

$319.63

39190

SHAFT-ASSY-STEERING

39190-1003

$231.78

39191

GEAR-ASSY-STEERING

39191-1004

$1,066.48

49006

BOOT,STEERING SHAFT,LWR

49006-1255

$34.90

92001

BOLT,FLANGED,10X85

92001-1619

$8.10

92002

BOLT,FLANGED,10X80

92002-1764

$7.45

92002A

BOLT,FLANGED,10X145

92002-1765

$11.37

92009

SCREW,6X14

92009-1288

$3.92

92015

NUT,LOCK,10MM,BLACK

92015-1189

$7.34

92015A

NUT,LOCK,10MM

92015-1597

$5.52

92015B

NUT

92015-1864

$14.39

92022

WASHER,PLAIN,10M/M

92022-137

Unavailable

92022A

WASHER,10.5X26X2.3,BLACK

92022-1396

$3.21

92075

DAMPER,ENGINE MOUNT,SIDE

92075-1274

$17.60

92075A

DAMPER,ENGINE MOUNT,MAIN

92075-1377

$30.82

92160

DAMPER,STEERING GEAR

92160-1084

$31.96

92200

WASHER,15X45X0.6

92200-1130

$4.43

92210

NUT,LOCK,FLANGED,10MM

92210-1081

$12.35
