Description

Price

220

SCREW-PAN-CROS,6X14

220B0614

$1.48

11011

CASE-AIR FILTER

11011-1392

Unavailable

11029

ELEMENT-ASSY-AIR FILTER

11029-1004

$41.02

14073

DUCT,CARBURETOR

14073-1534

$13.21

14073A

DUCT,AIR FILTER

14073-1535

Unavailable

14073B

DUCT,AIR INTAKE

14073-1602

$45.58

14073C

DUCT,FILTER-CARBURETOR

14073-1687

Unavailable

14090

COVER,AIR FILTER

14090-1106

$29.89

49006

BOOT

49006-1199

$8.64

55020

GUARD,AIR FILTER

55020-1497

Unavailable

92001

BOLT,6X25,W/WASHER

92001-1140

$5.01

92009

SCREW,TAPPING,5X10

92009-1332

$3.92

92015

NUT,FLANGED,6MM

92015-1193

Unavailable

92037

CLAMP,HOSE CLIP

92037-1460

$10.81

92037A

CLAMP

92037-3711

$6.72

92093

SEAL,AIR FILTER

92093-1241

$12.96

92093A

SEAL,DUST

92093-1322

$9.82

92170

CLAMP

92170-1036

$8.72

92170A

CLAMP,AIR FILTER

92170-1211

$7.33

92170B

CLAMP

92170-1338

$11.05

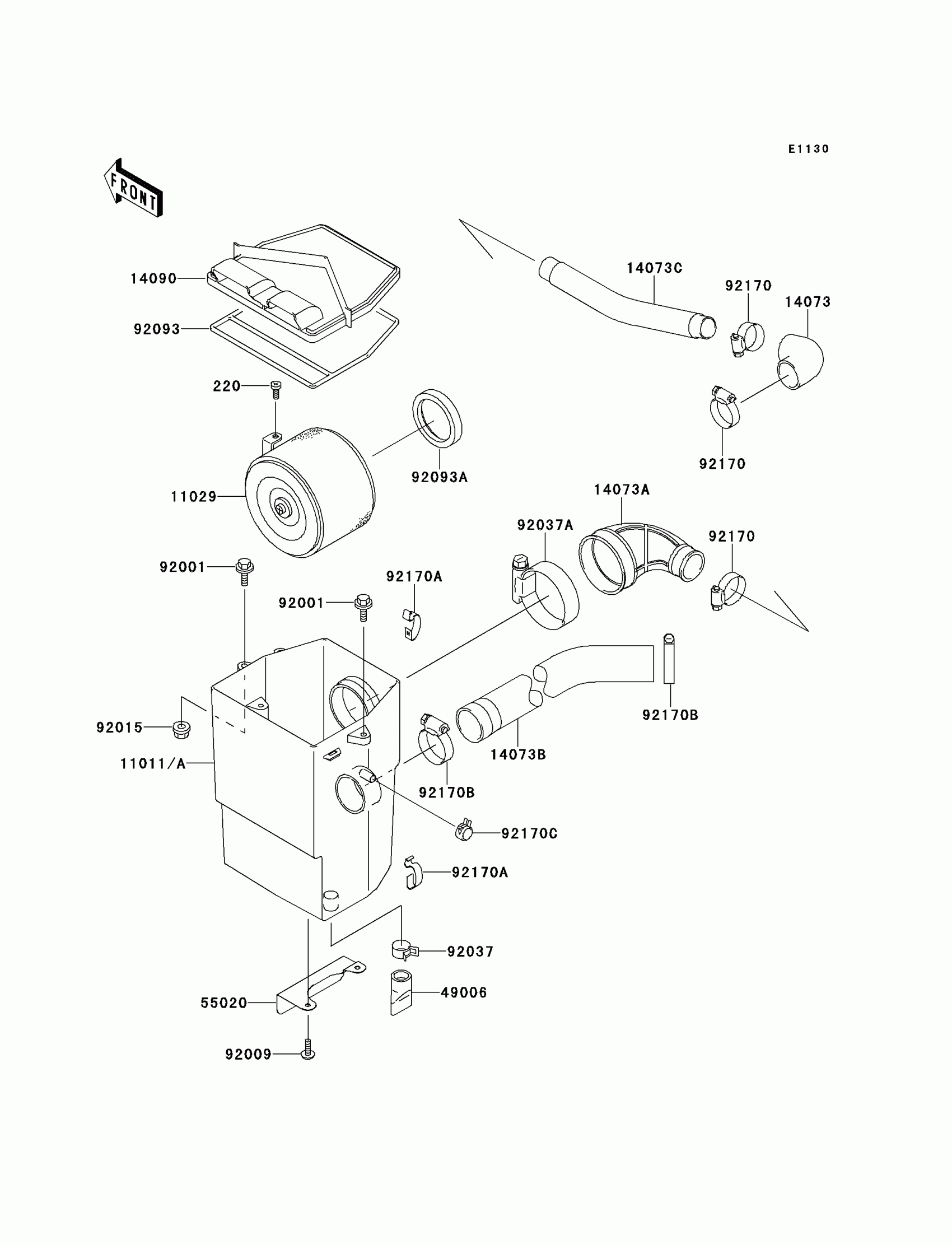

Kawasaki Mule 2500 Air Cleaner Diagram

SCREW-PAN-CROS,6X14

CASE-AIR FILTER

ELEMENT-ASSY-AIR FILTER

DUCT,CARBURETOR

DUCT,AIR FILTER

DUCT,AIR INTAKE

DUCT,FILTER-CARBURETOR

COVER,AIR FILTER

BOOT

GUARD,AIR FILTER

BOLT,6X25,W/WASHER

SCREW,TAPPING,5X10

NUT,FLANGED,6MM

CLAMP,HOSE CLIP

CLAMP

SEAL,AIR FILTER

SEAL,DUST

CLAMP

CLAMP,AIR FILTER

CLAMP
