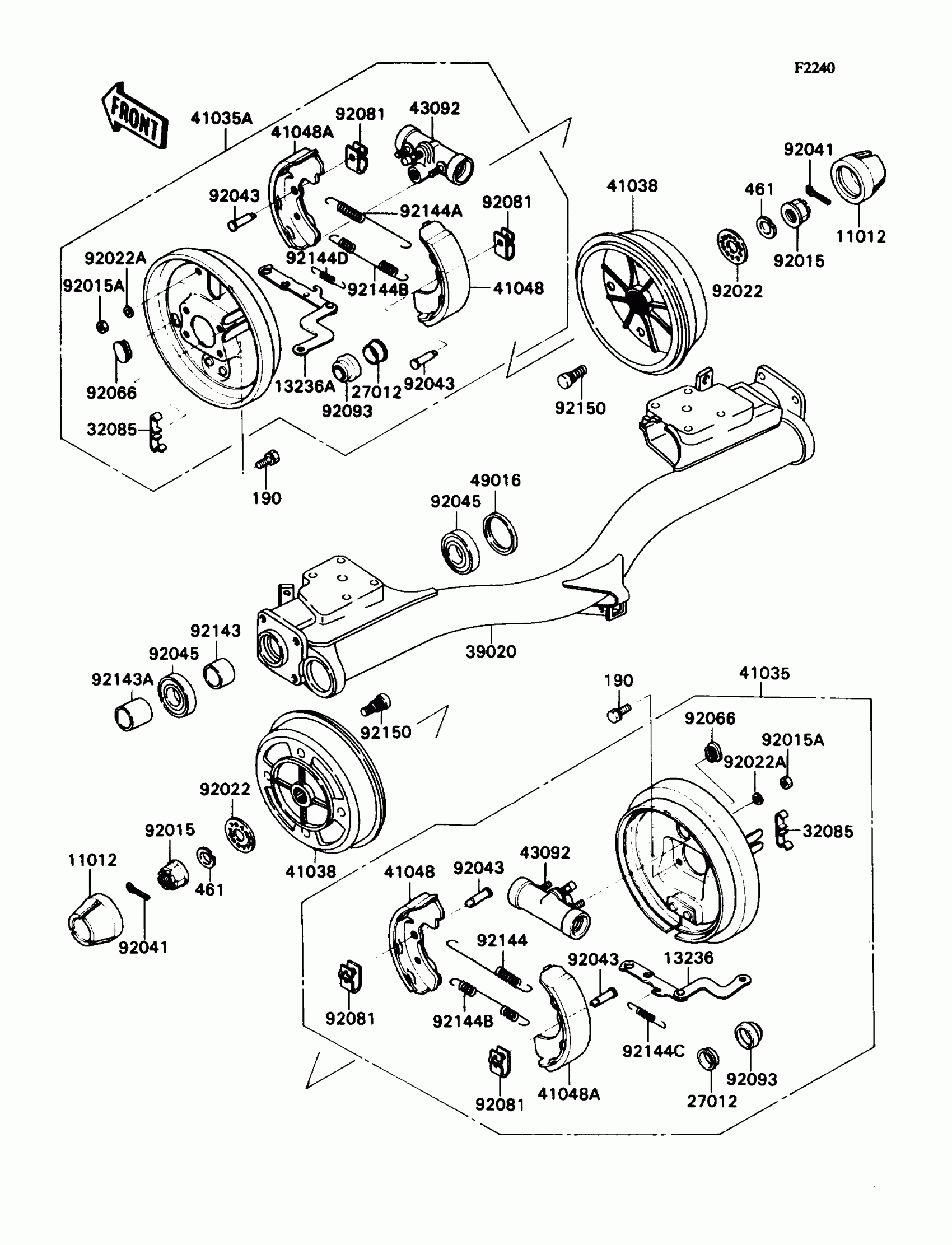

Kawasaki Mule 2030 Rear Hub Diagram
#
Description
Price
11012
CAP,WHEEL
11012-1519
Unavailable
13236
LEVER-COMP,REAR BRAKE PANEL,LH
13236-1180
$39.38
13236A
LEVER-COMP,REAR BRAKE PANEL,RH
13236-1181
$39.38
27012
HOOK,REAR BRAKE LEVER
27012-1396
$21.58
32085
STOPPER,REAR BRAKE LEVER
32085-1298
$11.07
39020
BRACKET-COMP-REAR SUSP
39020-1053
$823.78
41035
PANEL-ASSY-BRAKE,RR,LH
41035-1268
Unavailable
41035A
PANEL-ASSY-BRAKE,RR,RH
41035-1269
$421.26
41038
DRUM,REAR BRAKE
41038-1226
$351.27
41048
SHOE-BRAKE
41048-1078
$29.31
41048A
SHOE-BRAKE
41048-1079
$29.31
43092
CYLINDER,REAR WHEEL
43092-1053
$90.98
49016
COVER-SEAL
49016-1151
$6.23
92015
NUT,CASTLE,18MM
92015-1441
$9.23
92015A
NUT,6MM
92015-1729
$2.78
92022
WASHER,T=4.5
92022-1794
$8.10
92022A
WASHER,SPRING,6MM
92022-1951
$2.78
92041
COTTER,4.0X35
92041-1053
$3.92
92043
PIN,TENSION
92043-1398
$4.86
92045
BEARING-BALL,6205DDU
92045-1229
$33.40
92066
PLUG
92066-1309
$5.78
92081
SPRING,SHOE CLAMP
92081-1904
$8.03
92093
SEAL,REAR BRAKE LEVER
92093-1259
$16.27
92143
COLLAR,25.1X32X23.3
92143-1108
$20.60
92143A
COLLAR,25.1X32X29.5
92143-1386
$32.69
92144
SPRING,BRAKE
92144-1299
$8.30
92144A
SPRING,BRAKE
92144-1300
$8.30
92144B
SPRING,BRAKE
92144-1301
$8.30
92144C
SPRING,ROD,LH
92144-1302
$8.30
92144D
SPRING,ROD,RH
92144-1303
$7.60
92150
BOLT
92150-1366
$8.05
190
BOLT-UPSET-WS,10X16
190H1016
$4.15
461
WASHER-SPRING,18MM
461F1800
$2.72
