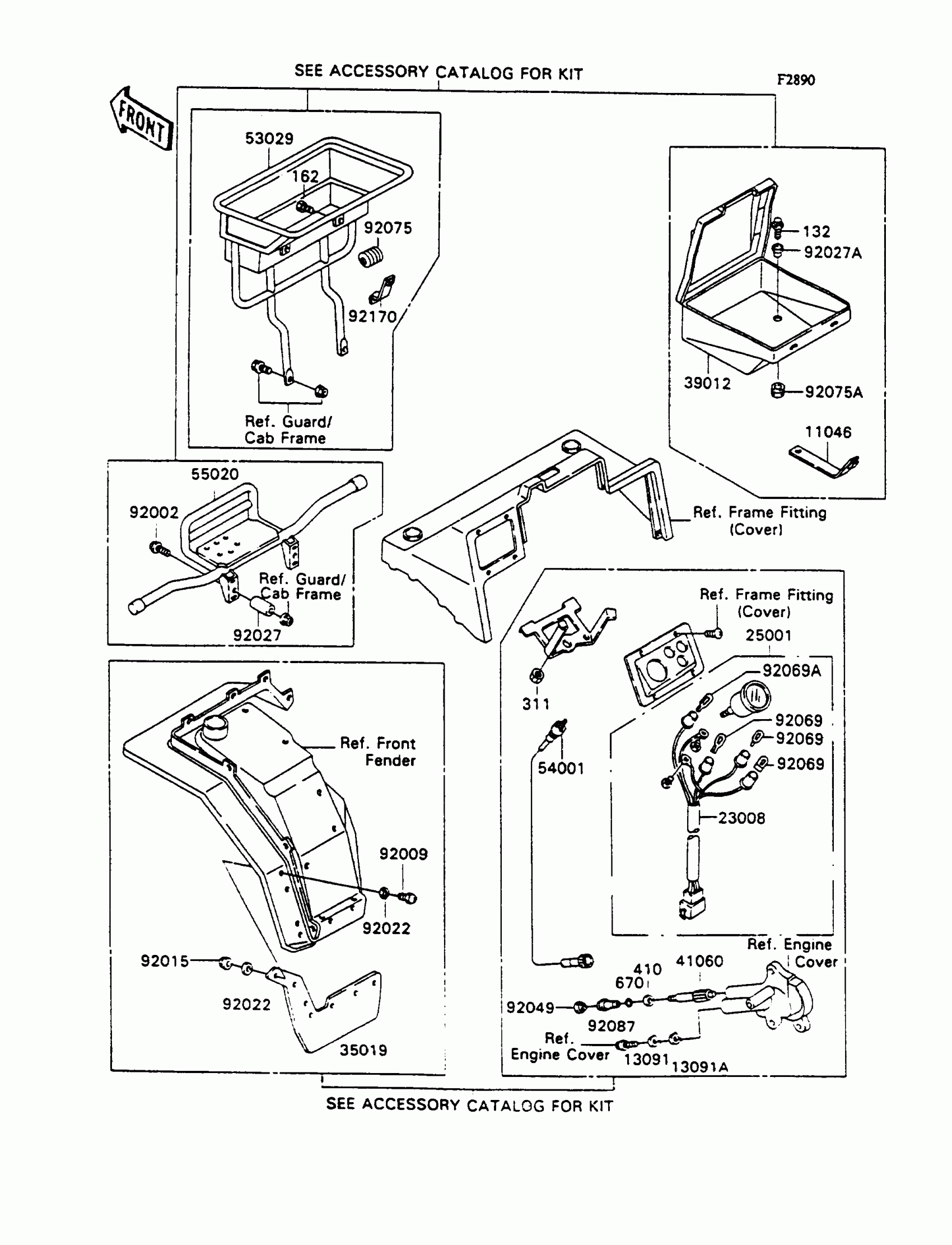

Kawasaki Mule 2030 Optional Parts(Front) Diagram
#
Description
Price
11046
BRACKET,LUNCH BOX
11046-1816
Unavailable
13091
HOLDER,TACHOMETER2.3T
13091-1008
$4.26
13091A
HOLDER,TACHOMETR,3.2T
13091-1009
$4.26
23008
SOCKET-ASSY,METER
23008-1355
Unavailable
25001
METER-ASSY,MPH
25001-1706
$266.89
35019
FLAP,FR
35019-1258
Unavailable
39012
CASE-STORAGE
39012-1054
Unavailable
41060
GEAR-METER SCREW
41060-1120
$19.94
53029
CARRIER,FRONT RACK
53029-1126
Unavailable
54001
CABLE-SPEEDOMETER
54001-1135
$47.99
55020
GUARD,ELECTRIC WINCH
55020-1352
$8.64
92002
BOLT,FLANGED,12X75
92002-1661
$13.75
92009
SCREW,6X18,BLACK
92009-1181
$2.80
92015
NUT,FLANGED,6MM,BLACK
92015-1386
Unavailable
92022
WASHER,6.5X20X1.6,BLACK
92022-1346
$0.49
92027
COLLAR,12.2X22X48.2
92027-1574
$30.46
92027A
COLLAR,L=19.3
92027-1780
$6.57
92049
SEAL-OIL
92050-075
$11.39
92069
BULB,12V 3.4W,T10
92069-1007
$5.00
92069A
BULB,12V 1.7W,T10
92069-1059
$4.96
92075
DAMPER,FUEL TANK
92075-084
$10.04
92075A
DAMPER
92075-1736
$6.57
92087
GUIDE,TACHOMETER GEAR
92087-010
$24.19
92170
CLAMP,FRONT RACK
92170-1115
Unavailable
132
BOLT-FLANGED-SMALL,8X30
132G0830
$4.15
162
BOLT-FINE-WSP,10X22
162C1022
$4.75
311
NUT-HEX
311B0500
$0.47
410
WASHER-PLAIN-SMALL,6MM
410B0600
$1.31
670
O RING,10MM
670D1510
$4.69
