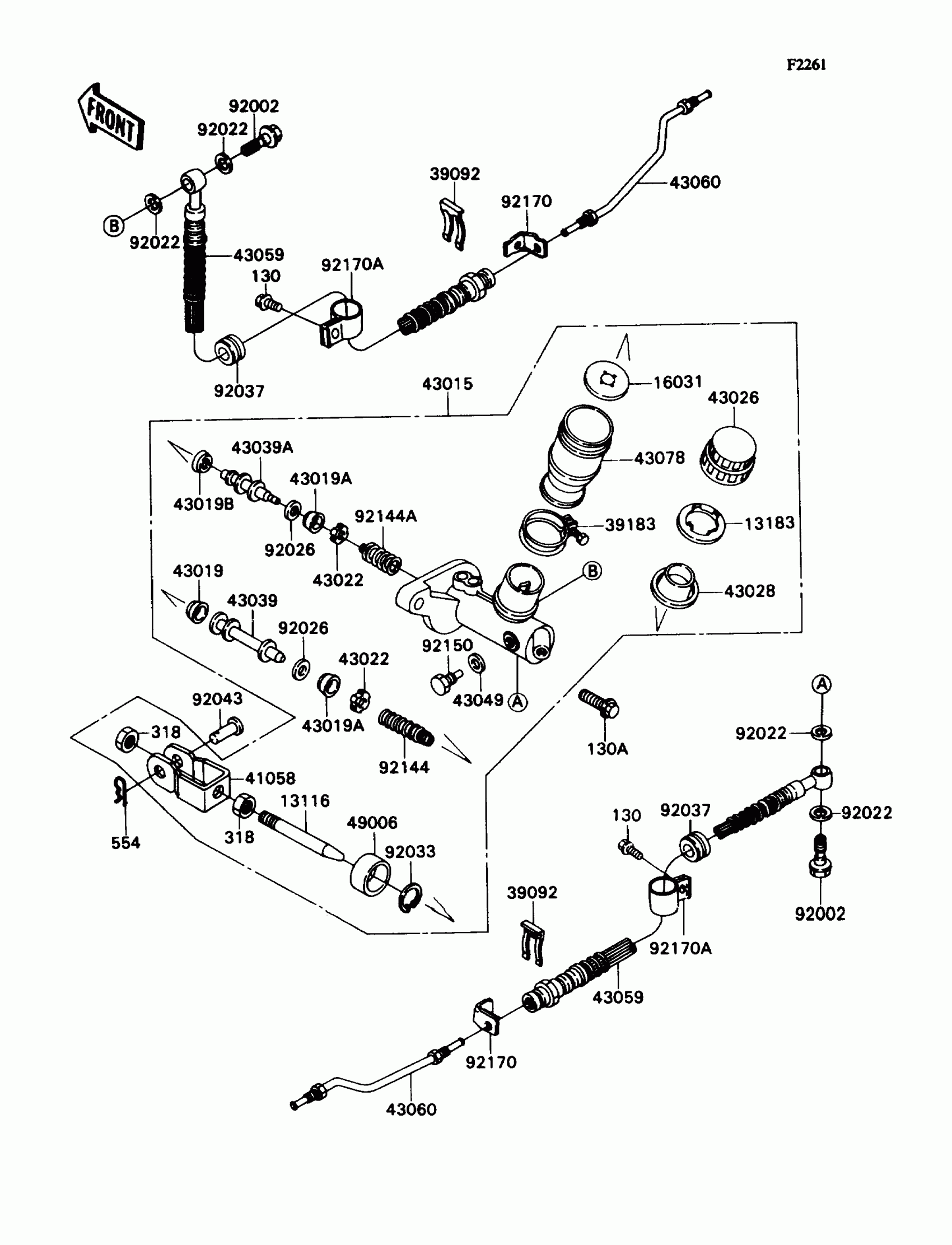

Kawasaki Mule 2030 Master Cylinder Diagram

#

Description
Price

13116

ROD-PUSH

13116-1134

$33.65

13183

PLATE

13183-1306

$4.39

16031

FLOAT

16031-1069

$7.60

39092

PIN-HAIR

39092-1054

$7.95

39183

BAND-ASSY

39183-1055

$11.07

41058

RODEND-BRAKE

41058-1057

$17.48

43015

CYLINDER-ASSY-MASTER

43015-1398

$378.75

43019

CUP-BRAKE

43019-1063

Unavailable

43019A

CUP-BRAKE

43019-1064

$60.90

43019B

CUP-BRAKE

43019-1065

$3.67

43022

STOPPER-BRAKE

43022-1053

$59.81

43026

CAP-BRAKE

43026-1067

$26.91

43028

DIAPHRAGM

43028-1072

$15.87

43039

PISTON-BRAKE

43039-1064

$28.81

43039A

PISTON-BRAKE

43039-1065

Unavailable

43049

PACKING

43049-1065

$2.76

43059

HOSE-BRAKE,FR

43059-1489

$81.65

43060

PIPE-BRAKE,FR

43060-1064

$24.57

43078

RESERVOIR

43078-1093

Unavailable

49006

BOOT

49006-1245

$7.60

92002

BOLT,OIL,L=23

92002-1888

$5.48

92022

WASHER,10.5X15X1.5

43067-001

$2.15

92026

SPACER

92026-1351

$3.51

92033

RING-SNAP

92033-1255

$3.54

92037

GROMMET,HOSE CLAMP

43064-007

$5.52

92043

PIN

92043-1039

$9.91

92144

SPRING

92144-1330

$6.35

92144A

SPRING

92144-1331

$6.35

92150

BOLT,STOP

92150-1165

$3.57

92170

CLAMP,BRAKE PIPE

92170-1093

$7.33

92170A

CLAMP,HOSE

92170-1173

$8.38

130

BOLT-FLANGED

130D0610

$0.48

130A

BOLT-FLANGED

130D0820

Unavailable

318

NUT-HEX-SMALL

318H0800

$1.26

554

PIN-SNAP,8MM

554A0800

$1.26
