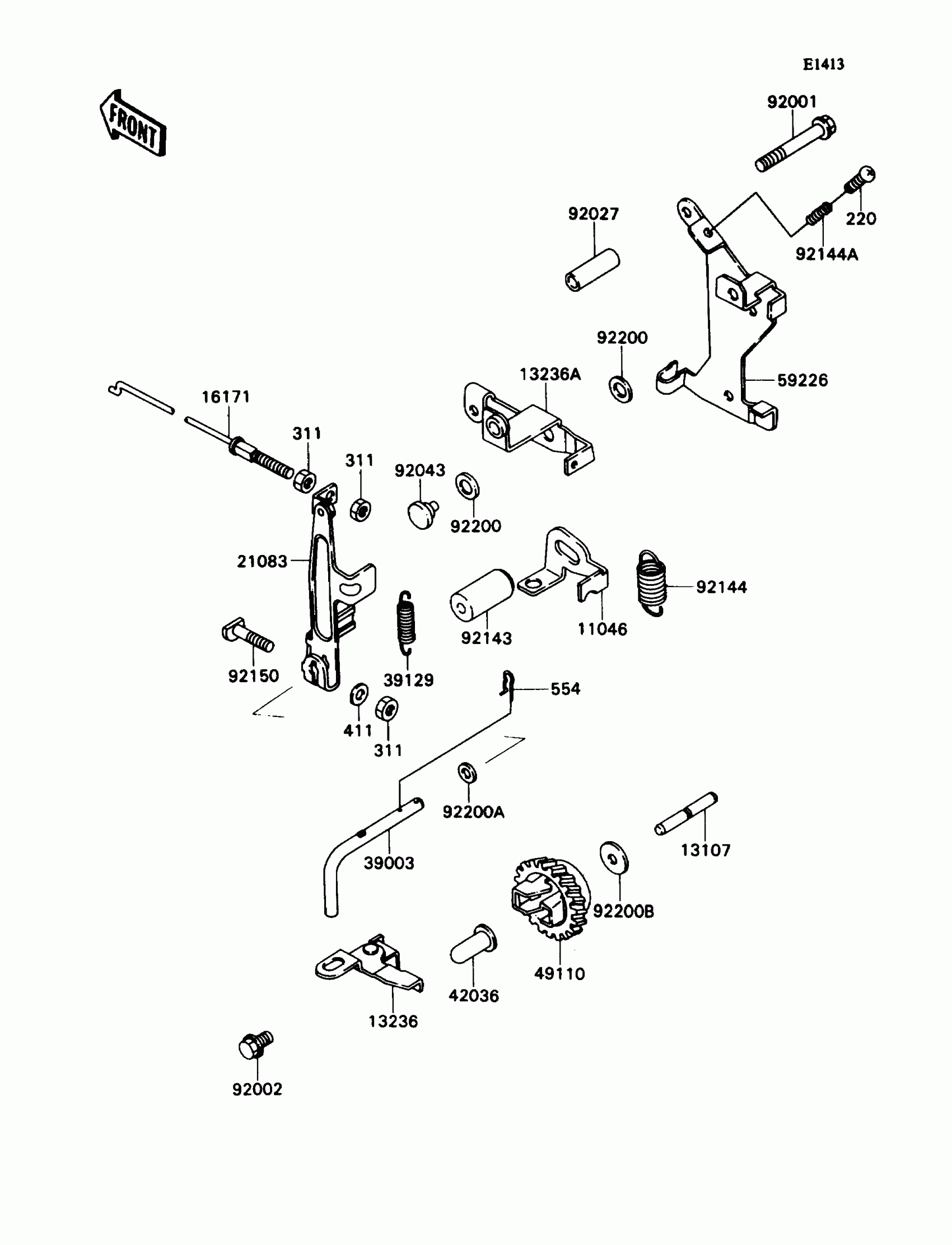

Kawasaki Mule 2030 Governor Diagram

#

Description
Price

11046

BRACKET

11046-1857

Unavailable

13107

SHAFT

13107-2235

$5.51

13236

LEVER-COMP

13236-1197

Unavailable

13236A

LEVER-COMP,CONTROL

13236-1201

Unavailable

16171

LINK,CARBURETOR

16171-1056

Unavailable

21083

ARM

21083-1080

$25.28

39003

ARM-PIVOT

39003-1051

$19.42

39129

SPRING-GOVERNOR

39129-1005

$7.39

42036

SLEEVE

42036-2060

$3.36

49110

GOVERNOR-ASSY

49110-2067

$10.68

59226

PANEL-CONTROL

59226-1054

$47.52

92001

BOLT,FLANGED,6X52

92001-1353

$5.88

92002

BOLT,6X12

92002-1572

$3.65

92027

COLLAR,6.5X10.5X33

92027-1222

$14.64

92043

PIN

92043-1432

Unavailable

92143

COLLAR

92143-1372

$17.37

92144

SPRING,CONTROL

92144-1410

$7.32

92144A

SPRING

92144-2266

$4.81

92150

BOLT,6X28

92002-2269

$1.14

92200

WASHER,8.5X17X0.8

92022-2216

Unavailable

92200A

WASHER,6.5X11.5X2.0

92200-2029

$0.68

92200B

WASHER,6.2X20X0.5

92200-2036

$1.17

220

SCREW PAN HEAD 5X22

220B0522

$0.74

311

NUT 6MM

311B0600

$0.93

411

WASHER PLAIN 6MM

411B0600

$2.84

554

PIN,SNAP

554A0600

$0.93
