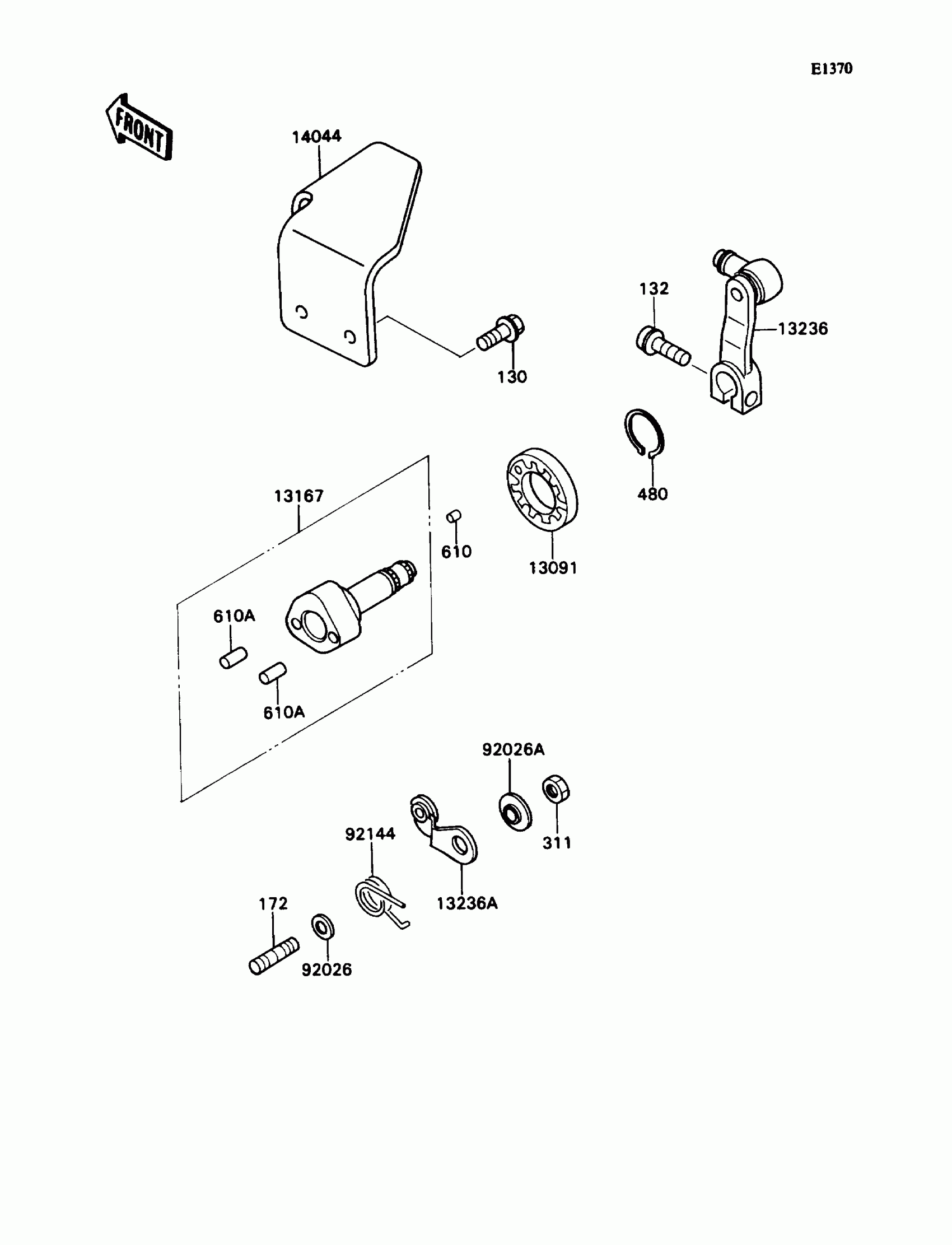

Kawasaki Mule 2030 Gear Change Mechanism Diagram

Description

Price

13091

HOLDER,CHANGE LEVER

13091-1540

Unavailable

13167

SHAFT-CHANGE

13167-1078

Unavailable

13236

LEVER-COMP

13236-1198

Unavailable

13236A

LEVER-COMP,POSITION

13236-1200

Unavailable

14044

HOLDER-CABLE

14044-1064

$16.60

92026

SPACER,6.3X12X1.0

92026-094

$9.18

92026A

SPACER

92026-1217

$5.52

92144

SPRING,POSITION RETURN

92144-1409

$8.60

130

BOLT-FLANGED

130D0616

$0.55

132

BOLT-FLANGED-SMALL,6X20

132J0620

$3.64

172

BOLT-STUD,6X14

172G0614

$1.74

311

NUT-HEX,6MM

311G0600

$2.19

480

CIRCLIP-TYPE-C,22MM

480J2200

$5.00

610

ROLLER,4X4

610A0404

$4.69

610A

ROLLER,6X12

610A0612

$4.69
