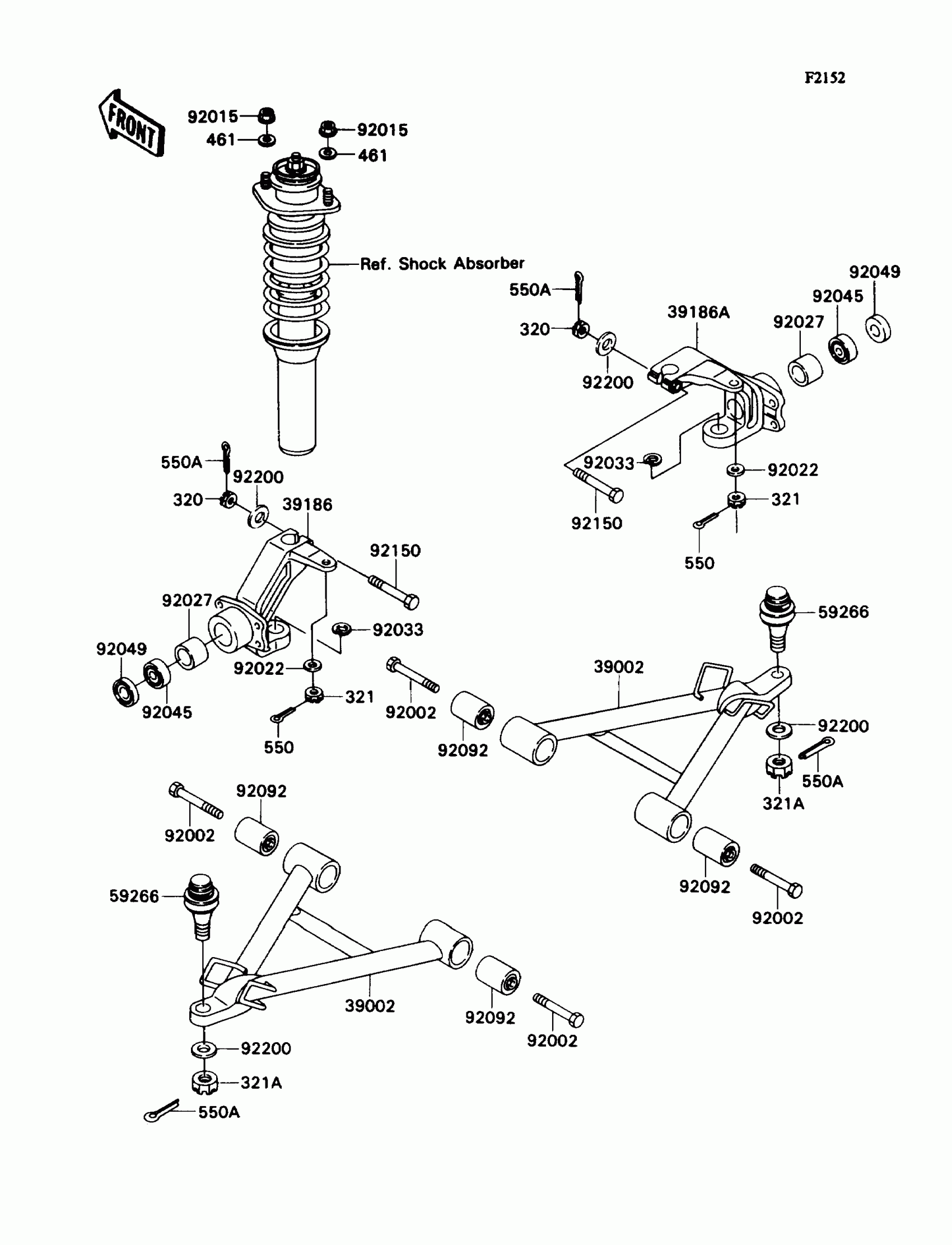

Kawasaki Mule 2030 Front Suspension Diagram

Description

Price

39002

ARM-COMP-SUSP

39002-1053

Unavailable

39186

KNUCKLE,FR,LH

39186-1089

$326.13

39186A

KNUCKLE,FR,RH

39186-1090

Unavailable

59266

JOINT-BALL

59266-1080

$96.44

92002

BOLT,FLANGED,12X75

92002-1661

$13.75

92015

NUT,FLANGED,10MM

92015-1366

$5.00

92022

WASHER,10.5X18X2.5

92022-1876

$5.00

92027

COLLAR,L=34.5

92027-1538

$44.94

92033

RING-SNAP,C-TYPE,32MM

92033-1262

$6.41

92045

BEARING-BALL

92045-3707

$35.22

92049

SEAL-OIL,S-35477HS

92049-1025

$14.90

92092

BUSHING-RUBBER

92092-1065

$15.02

92150

BOLT,FLANGED,12X72

92150-1356

$13.75

92200

WASHER,12.3X23X2.3

92200-1004

$4.69

320

NUT-CASTLE,12MM

320H1200

$3.38

321

NUT-CASTLE

321H1000

$6.12

321A

NUT-CASTLE,12MM

321H1200

$6.61

461

WASHER-SPRING

461L1000

$0.68

550

PIN-COTTER,2.0X22

550D2022

$2.51

550A

PIN-COTTER,3.0X25

550D3025

$0.58
