Description

Price

11012

CAP,WHEEL

11012-1519

Unavailable

14087

RETAINER-ASSY,RH

14087-1001

$24.46

14087A

RETAINER-ASSY,LH

14087-1002

$24.46

41035

PANEL-ASSY-BRAKE,FR,LH

41035-1263

$430.06

41035A

PANEL-ASSY-BRAKE,FR,RH

41035-1264

$430.06

41038

DRUM,FRONT BRAKE

41038-1219

$368.01

41048

SHOE-BRAKE

41048-1077

$29.31

41068

AXLE,FR

41068-1296

$145.34

43092

CYLINDER,FRONT BRAKE PANEL

43092-1054

$153.34

92015

NUT,CASTLE,18MM

92015-1441

$9.23

92022

WASHER,T=4.5

92022-1794

$8.10

92041

COTTER,4.0X35

92041-1053

$3.92

92043

PIN,TENSION

92043-1398

$4.86

92066

PLUG

92066-1309

$5.78

92081

SPRING,SHOE CLAMP

92081-1904

$8.03

92144

SPRING,BRAKE

92144-1300

$8.30

92144A

SPRING,BRAKE

92144-1301

$8.30

92150

BOLT,FLANGED,6X12

92150-1166

$4.39

92150A

BOLT

92150-1366

$8.05

190

BOLT-UPSET-WS,10X16

190H1016

$4.15

461

WASHER-SPRING,18MM

461F1800

$2.72

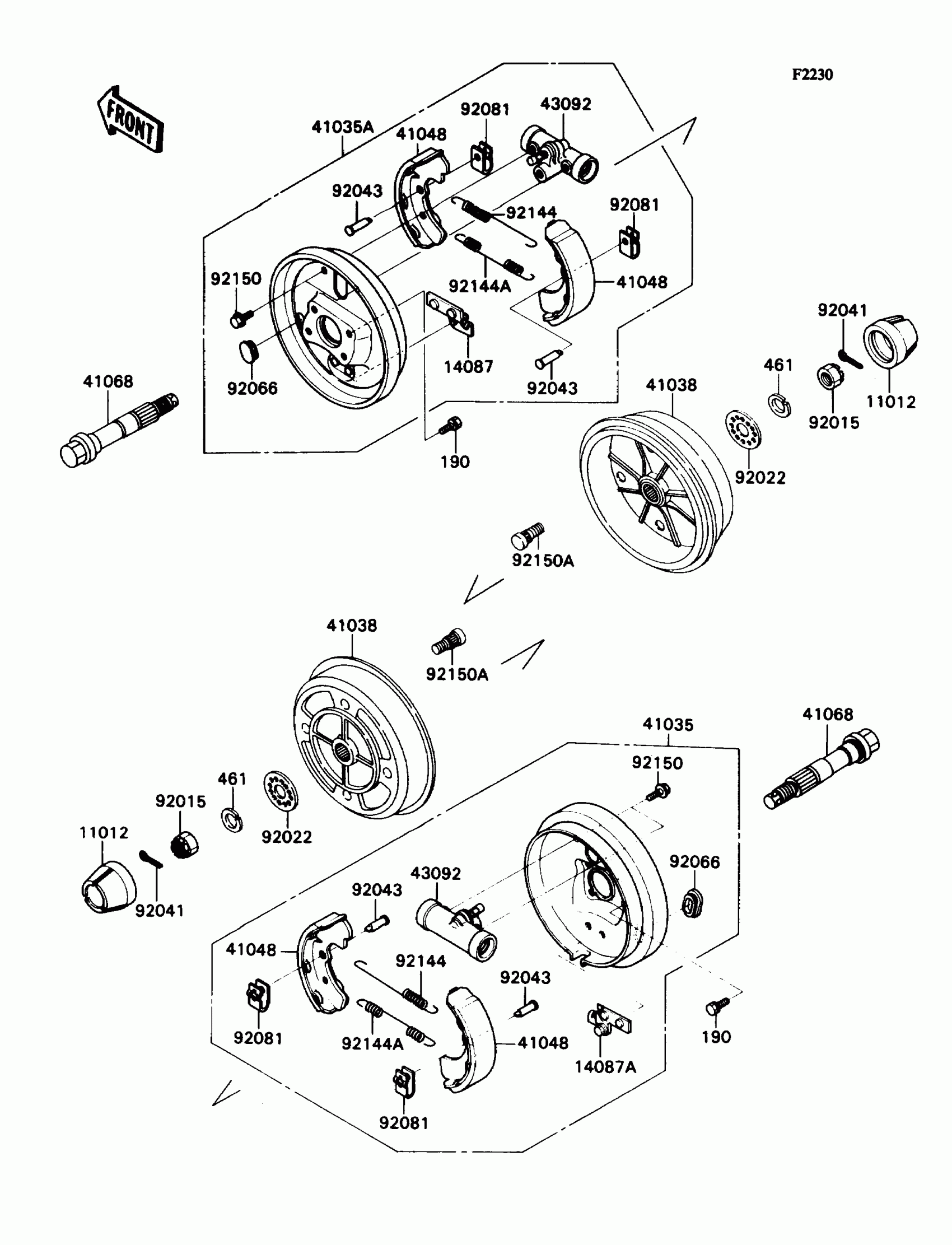

Kawasaki Mule 2030 Front Hub Diagram

CAP,WHEEL

RETAINER-ASSY,RH

RETAINER-ASSY,LH

PANEL-ASSY-BRAKE,FR,LH

PANEL-ASSY-BRAKE,FR,RH

DRUM,FRONT BRAKE

SHOE-BRAKE

AXLE,FR

CYLINDER,FRONT BRAKE PANEL

NUT,CASTLE,18MM

WASHER,T=4.5

COTTER,4.0X35

PIN,TENSION

PLUG

SPRING,SHOE CLAMP

SPRING,BRAKE

SPRING,BRAKE

BOLT,FLANGED,6X12

BOLT

BOLT-UPSET-WS,10X16

WASHER-SPRING,18MM
