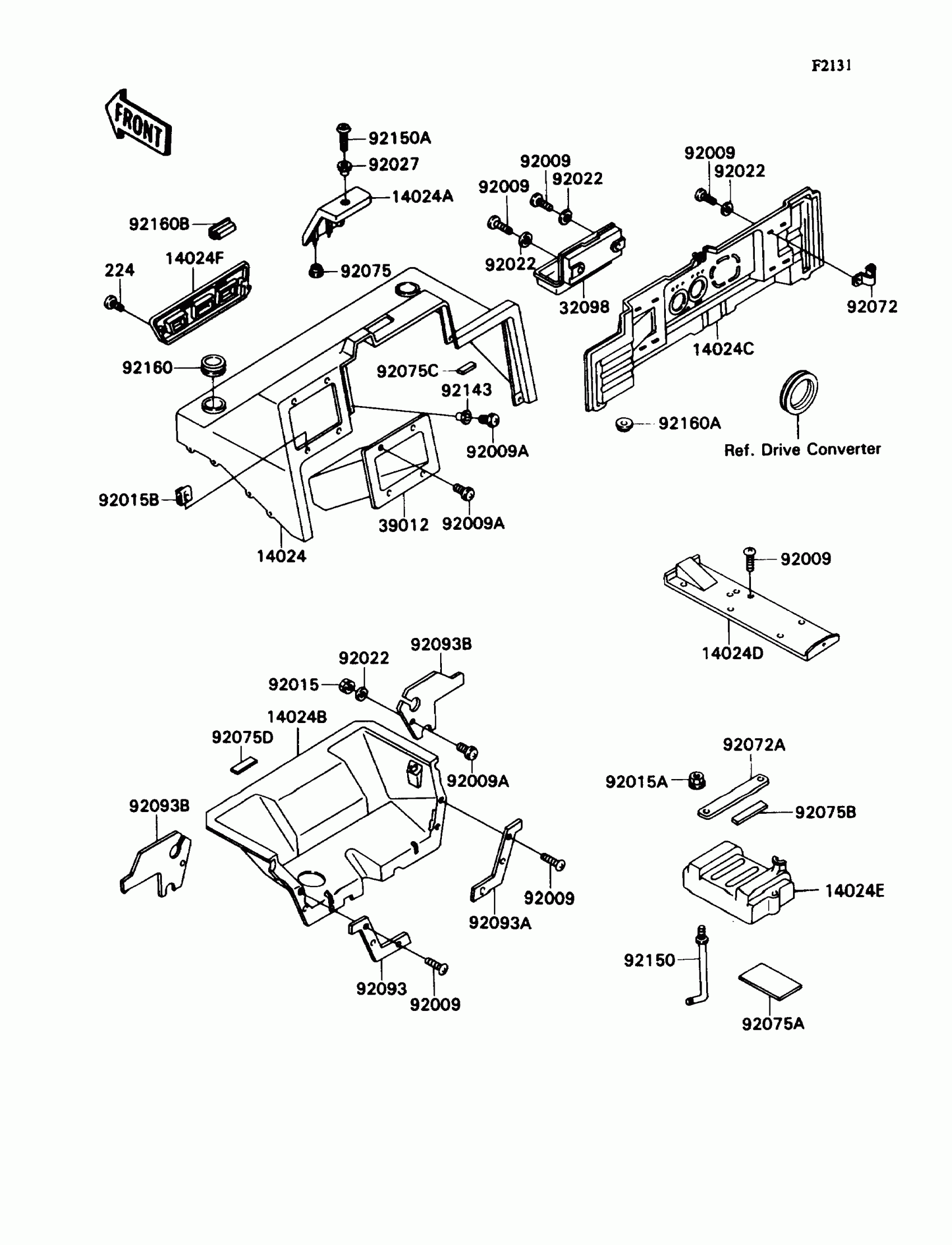

Kawasaki Mule 2030 Frame Fitting(Cover) Diagram

#

Description
Price

14024

COVER,UPP,F.RED

14024-1787-B1

Unavailable

14024A

COVER,MAINTENANCE,F.RED

14024-1788-B1

Unavailable

14024B

COVER,LWR

14024-1789

Unavailable

14024C

COVER,SEAT UNDER

14024-1790

Unavailable

14024D

COVER,FLOOR,CNT

14024-1791

Unavailable

14024E

COVER,BATTERY

14024-1792

$50.39

14024F

COVER,FRONT GRILL,F.RED

14024-1816-B1

Unavailable

32098

CASE-TOOL

32098-1052

$33.37

39012

CASE-STORAGE

39012-1053

$71.71

92009

SCREW,TAPPING,6X16

92009-1166

$5.52

92009A

SCREW,6X18,BLACK

92009-1181

$2.80

92015

NUT,FLANGED,6MM,BLACK

92015-1386

Unavailable

92015A

NUT,FLANGED,8MM

92015-1406

$4.45

92015B

NUT,CLAMP,6MM

92015-1678

$5.52

92022

WASHER,6.5X20X1.6,BLACK

92022-1346

$0.49

92027

COLLAR,L=14.1

92027-1920

$6.57

92072

BAND

92072-1252

$11.91

92072A

BAND,BATTERY

92072-1255

$4.57

92075

DAMPER

92075-1067

$4.69

92075A

DAMPER

92075-1076

$8.86

92075B

DAMPER

92075-1214

$4.39

92075C

DAMPER,AIR FILTER COV

92075-1658

$4.86

92075D

DAMPER,BATTERY BAND

92075-1903

$5.59

92093

SEAL,FRONT FENDER,LH

92093-1293

$9.64

92093A

SEAL,FRONT FENDER,RH

92093-1294

$10.00

92093B

SEAL,LOWER COVER

92093-1295

$22.57

92143

COLLAR

92143-1087

$4.31

92150

BOLT,BATTERY

92150-1293

$10.65

92150A

BOLT,6X25

92150-1360

Unavailable

92160

DAMPER

92160-1142

$9.30

92160A

DAMPER

92160-1148

$4.58

92160B

DAMPER

92160-1160

Unavailable

224

SCREW-PAN-WP-CROS,6X30

224C0630

$4.62
