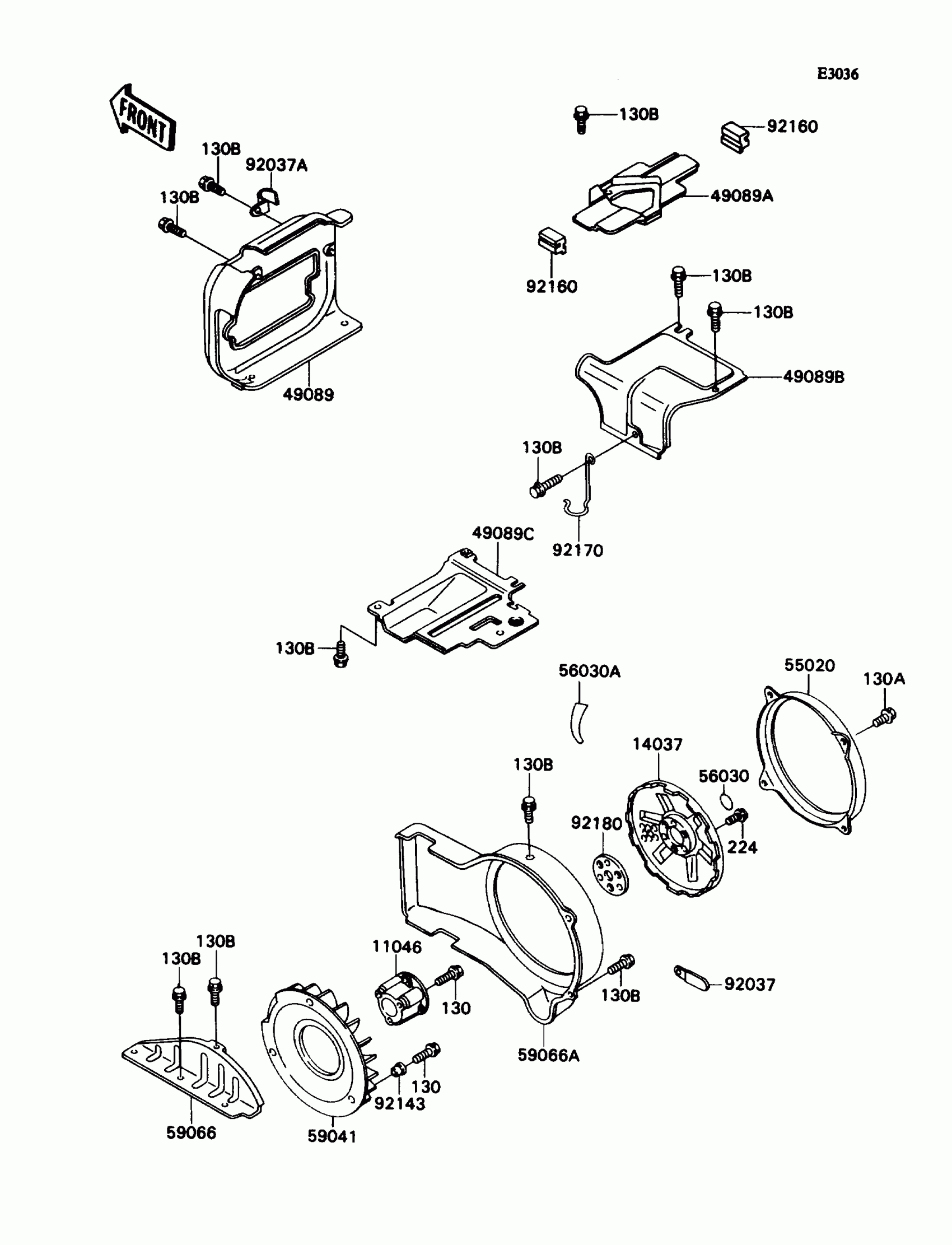

Kawasaki Mule 2030 Engine Shroud Diagram

Description

Price

11046

BRACKET

11044-2084

$16.87

14037

SCREEN

14037-2091

Unavailable

49089

SHROUD-ENGINE

49089-1097

$35.34

49089A

SHROUD-ENGINE

49089-1098

$17.05

49089B

SHROUD-ENGINE

49089-2195

$20.98

49089C

SHROUD-ENGINE

49089-2196

$20.98

55020

GUARD

55020-2074

$19.42

56030

LABEL,SCREEN

56030-2142

Unavailable

56030A

LABEL,FAN HOUSING

56030-2204

Unavailable

59041

FAN

59041-1054

$30.76

59066

HOUSING-FAN

59066-2286

$27.69

59066A

HOUSING-FAN

59066-2376

Unavailable

92037

CLAMP,L=45

92037-1539

$5.00

92037A

CLAMP

92037-3730

$6.34

92143

COLLAR,FAN

92143-1318

$13.78

92160

DAMPER

92160-1132

$7.58

92170

CLAMP

92170-1074

Unavailable

92180

SHIM

92025-2003

Unavailable

130

BOLT-FLANGED,8X20

130B0820

$0.67

130A

BOLT-FLANGED

130D0508

$2.30

130B

BOLT-FLANGED

130D0610

$0.48

224

SCREW-PAN-WP-CROS

224B0616

$0.72
