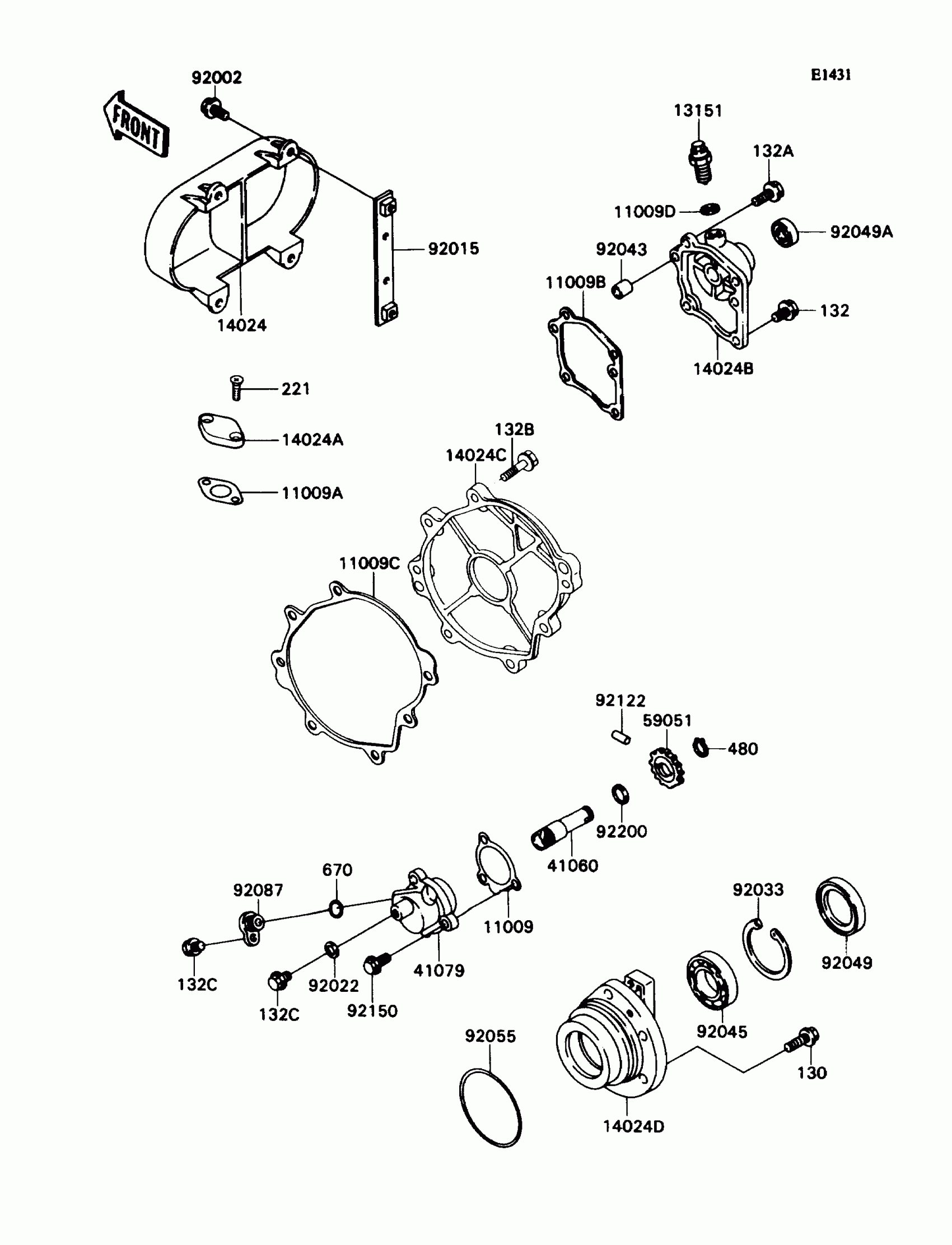

Kawasaki Mule 2030 Engine Cover Diagram
#
11009
GASKET,METER GEAR CASE
11009-1686
Unavailable
11009A
GASKET,SHIFTER COVER
11009-1688
Unavailable
11009B
GASKET,CHANGE COVER
11009-1797
Unavailable
11009C
GASKET
11009-1798
Unavailable
11009D
GASKET,10.5X16X1
92065-058
$3.96
13151
SWITCH-COMP,NEUTRAL
13151-1069
$27.37
14024
COVER,DUCT
14024-1558
Unavailable
14024A
COVER,SHIFTER
14024-1559
Unavailable
14024B
COVER,CHANGE MECHANISM
14024-1780
Unavailable
14024C
COVER
14024-1781
Unavailable
14024D
COVER
14024-1782
Unavailable
41060
GEAR-METER SCREW
41060-1136
$34.13
41079
CASE-METER GEAR
41079-1059
Unavailable
59051
GEAR-SPUR,13T
59051-1219
$54.70
92002
BOLT,6X16
92002-1570
Unavailable
92015
NUT,AIR FILTER
92015-1785
$9.16
92022
WASHER OIL PUMP BANJO
92022-077
$3.99
92033
RING-SNAP,55MM
92033-1274
$9.43
92043
PIN,6.2X8X14
92043-1263
$0.43
92045
BEARING-BALL,6006
92045-1208
$22.15
92049
SEAL-OIL,TC35X55X8
92049-1298
$8.98
92049A
SEAL-OIL,TB13225.5
92051-005
$7.74
92055
RING-O,74.6X2.4
92055-1357
$8.76
92087
BUSHING-METER GEAR
92087-1058
$8.03
92122
ROLLER,3X15.8
92122-1126
$3.92
92150
BOLT,6X20
92150-1010
Unavailable
92200
WASHER
92200-1009
$5.07
130
BOLT-FLANGED
130D0825
$0.90
132
BOLT-FLANGED-SMALL
132H0616
$1.47
132A
BOLT-FLANGED-SMALL
132H0620
$2.33
132B
BOLT-FLANGED-SMALL
132H0825
$2.23
132C
BOLT-FLANGED-SMALL,6X10
132J0610
$2.33
221
SCREW-CSK-CROS,6X18
221B0618
$3.41
480
CIRCLIP-TYPE-C,11MM
480J1100
$1.24
670
O RING,10MM
670D1510
$4.69
