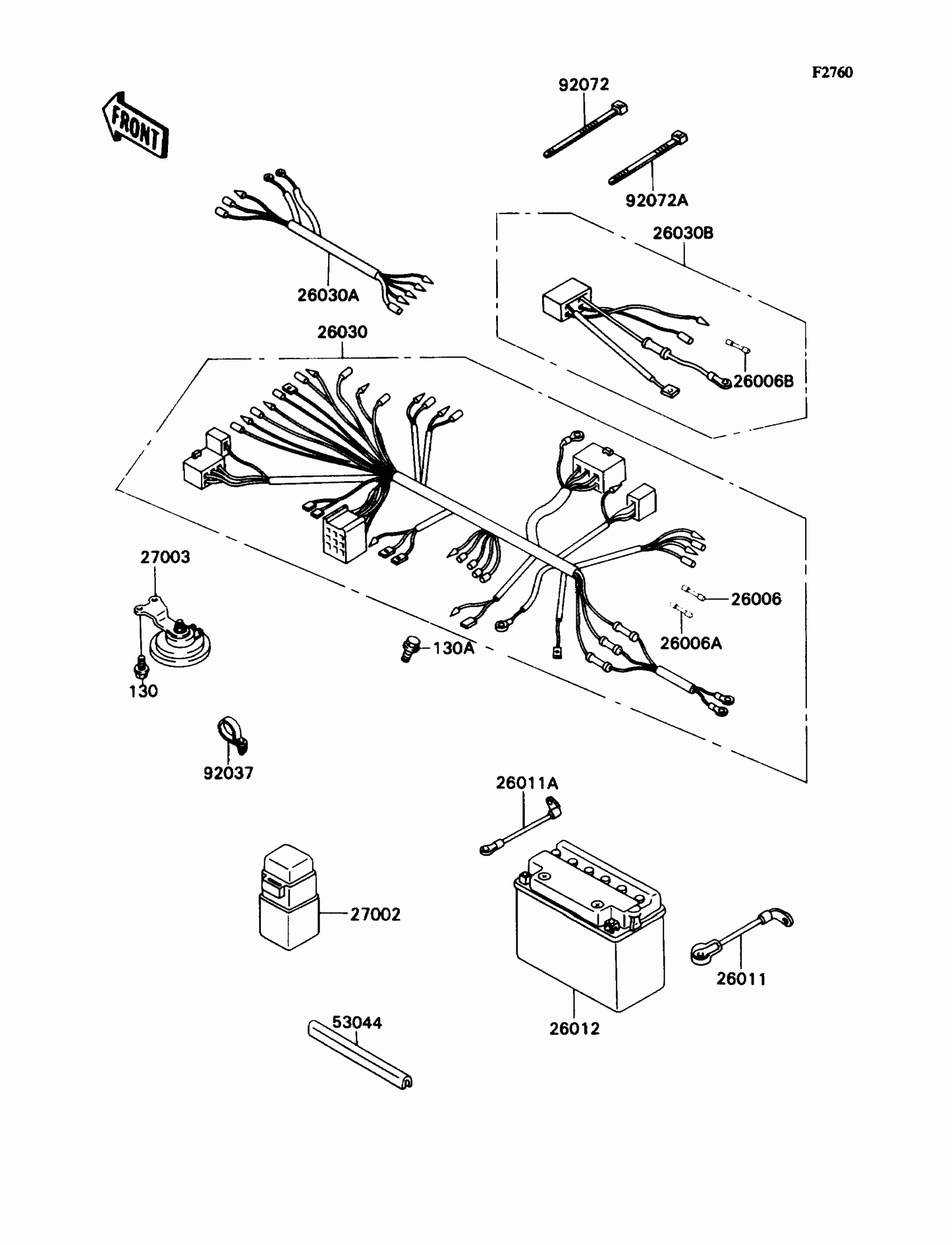

Kawasaki Mule 2030 Electrical Equipment Diagram

Description

Price

26006

FUSE,5A,L=32

26006-1063

$7.43

26006A

FUSE,GLASS TUBE,6.4X31.8,20A

26006-1064

$5.87

26006B

FUSE,30A,L=32

26006-1065

$4.96

26011

WIRE-LEAD,BATTERY(+)

26011-1443

Unavailable

26011A

WIRE-LEAD,BATTERY(-)

26011-1444

$16.89

26012

BATTERY,YB16CL-B,12V 19AH

26012-1242

$124.91

26030

HARNESS,MAIN

26001-1978

$73.15

26030A

HARNESS

26001-1986

$48.55

26030B

HARNESS

26001-1988

$58.68

27002

RELAY-ASSY

27002-1068

$68.42

27003

HORN

27003-1317

Unavailable

53044

TRIM

53044-1137

$10.65

92037

CLAMP,SPEED,L=80.5

92037-1903

$7.84

92072

BAND,L=365

92072-1197

$7.84

92072A

BAND,L=188

92072-1239

$1.73

130

BOLT-FLANGED,6X10

130B0610

$0.48

130A

BOLT

130B0612

$0.67
