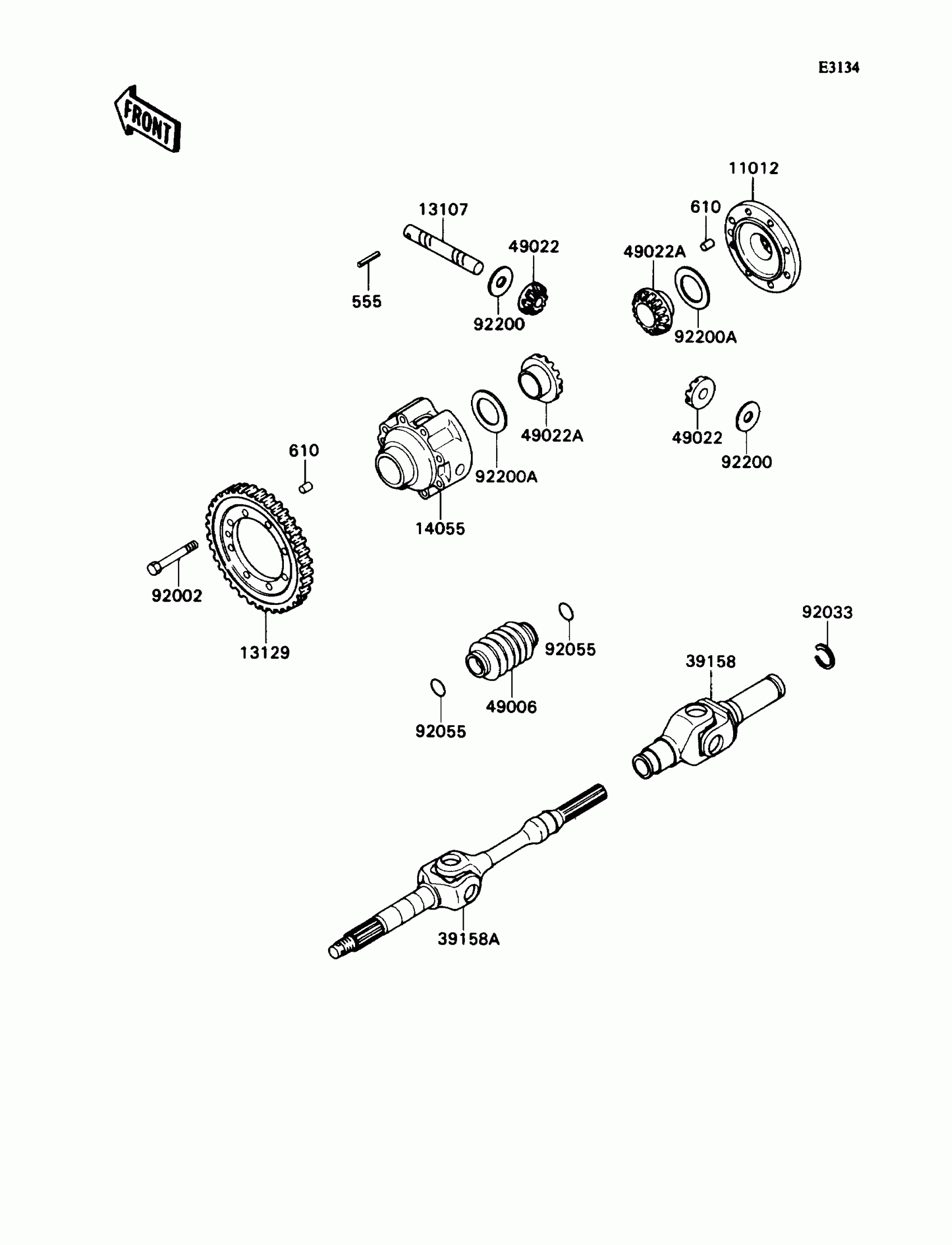

Kawasaki Mule 2030 Drive Shaft Diagram

Description

Price

11012

CAP,GEAR CASE

11012-1613

$186.52

13107

SHAFT

13107-1219

$42.41

13129

GEAR,DIFFERENTIAL,67T

13129-1897

Unavailable

14055

CASE-GEAR

14055-1081

$598.82

39158

SHAFT-ASSY-DRIVE,RR,INSIDE

39158-1068

$479.84

39158A

SHAFT-ASSY-DRIVE,RR,OUTSIDE

39158-1075

Unavailable

49006

BOOT,DRIVE SHAFT

49006-1257

$44.09

49022

GEAR-BEVEL,10T

49022-1105

$85.34

49022A

GEAR-BEVEL,16T

49022-1117

$154.15

92002

BOLT,8X68

92002-1553

$10.62

92033

RING-SNAP

92033-1240

$4.76

92055

RING-O,19.5X3.0

92055-1451

$4.69

92200

WASHER,14.5X38X1.0

92200-1044

$8.38

92200A

WASHER,35.5X54X1.0

92200-1045

$12.92

555

PIN-SPRING

555A0528

$4.80

610

PIN-DOWEL,8X12

610A0812

$3.71
