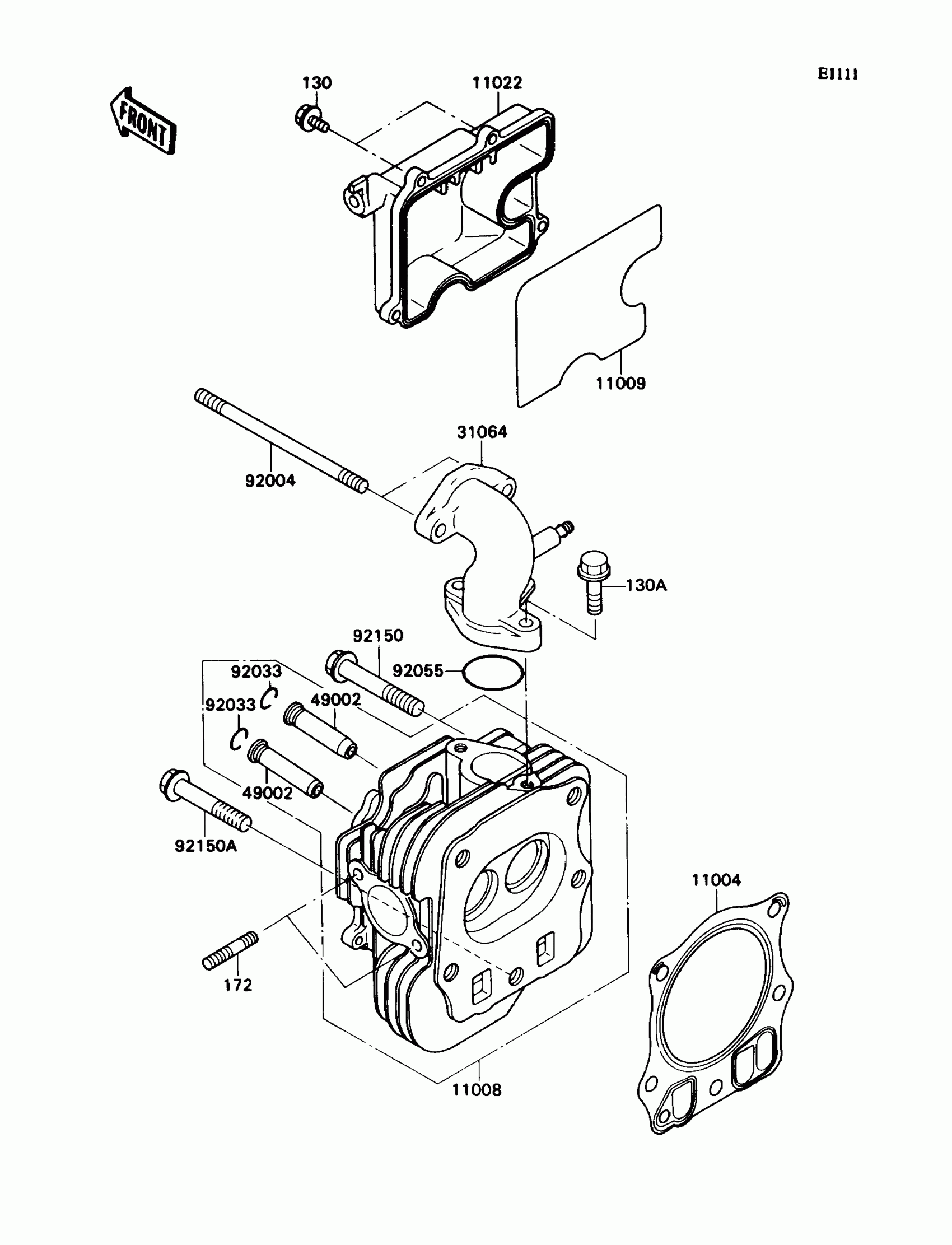

Kawasaki Mule 2030 Cylinder Head Diagram

Description

Price

11004

GASKET-HEAD

11004-2097

$15.64

11008

HEAD-COMP-CYLINDER

11008-1237

Unavailable

11009

GASKET,ROCKER CASE

11009-2433

$12.75

11022

CASE-ROCKER

11022-1054

Unavailable

31064

PIPE-COMP,INTAKE

31064-1111

Unavailable

49002

GUIDE-VALVE

49002-1105

Unavailable

92004

STUD,8X145

92004-1192

Unavailable

92033

RING-SNAP,VALVE GUIDE

92036-023

$0.48

92055

RING-O,34.5X2.0

92055-1452

$5.24

92150

BOLT,10X65

92002-2273

$4.42

92150A

BOLT,10X57

92150-2105

$3.13

130

BOLT-FLANGED,6X16

130B0616

Unavailable

130A

BOLT,FLANGED,8X30

130G0830

$1.92

172

BOLT-STUD,8X30

172G0830

$2.56
