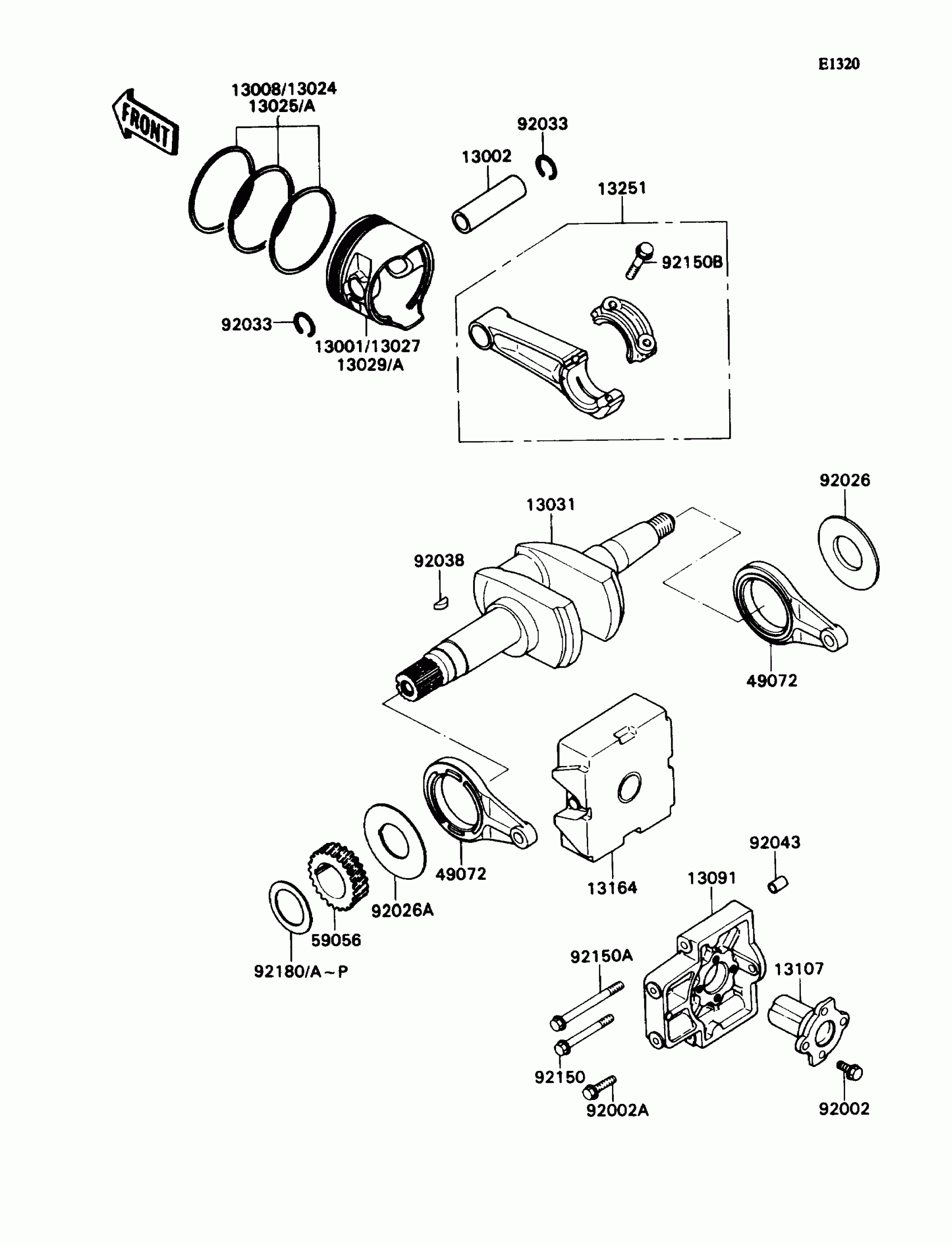

Kawasaki Mule 2030 Crankshaft/Piston Diagram
#
13001
PISTON-ENGINE,STD
13001-1304
Unavailable
13008
RING-SET-PISTON,STD
13008-1117
Unavailable
13024
RING-SET-PISTON LL,O/S,0.75
13024-1086
Unavailable
13025
RING-SET-PISTON L,O/S,0.25
13025-1103
Unavailable
13025A
RING-SET-PISTON L,O/S,0.50
13025-1104
Unavailable
13031
CRANKSHAFT-COMP
13031-1296
Unavailable
13091
HOLDER
13091-1616
Unavailable
13164
BALANCER-COMP
13164-1004
Unavailable
13251
ROD-ASSY-CONNECTING
13251-6010
Unavailable
49072
ROD-COMP-CONNECTING
49072-1052
Unavailable
92026A
SPACER,T=2.0
92026-2161
Unavailable
92150
BOLT,6X65
92150-1279
Unavailable
92150A
BOLT,6X85
92150-1280
Unavailable
92180
SHIM,T=1.18
92025-2183
Unavailable
92180A
SHIM,T=1.25
92025-2184
Unavailable
92180B
SHIM,T=1.32
92025-2185
Unavailable
92180C
SHIM,T=1.39
92025-2186
Unavailable
92180D
SHIM,T=1.46
92025-2187
Unavailable
92180E
SHIM,T=1.53
92025-2188
Unavailable
92180F
SHIM,T=1.60
92025-2189
Unavailable
92180G
SHIM,T=1.67
92025-2190
Unavailable
92180H
SHIM,T=1.74
92025-2191
Unavailable
92180I
SHIM,T=1.215
92025-2197
Unavailable
92180J
SHIM,T=1.285
92025-2198
Unavailable
92180K
SHIM,T=1.355
92025-2199
Unavailable
92180L
SHIM,T=1.425
92025-2200
Unavailable
92180M
SHIM,T=1.495
92025-2201
Unavailable
92180N
SHIM,T=1.565
92025-2202
Unavailable
92180O
SHIM,T=1.635
92025-2203
Unavailable
92180P
SHIM,T=1.705
92025-2204
Unavailable
