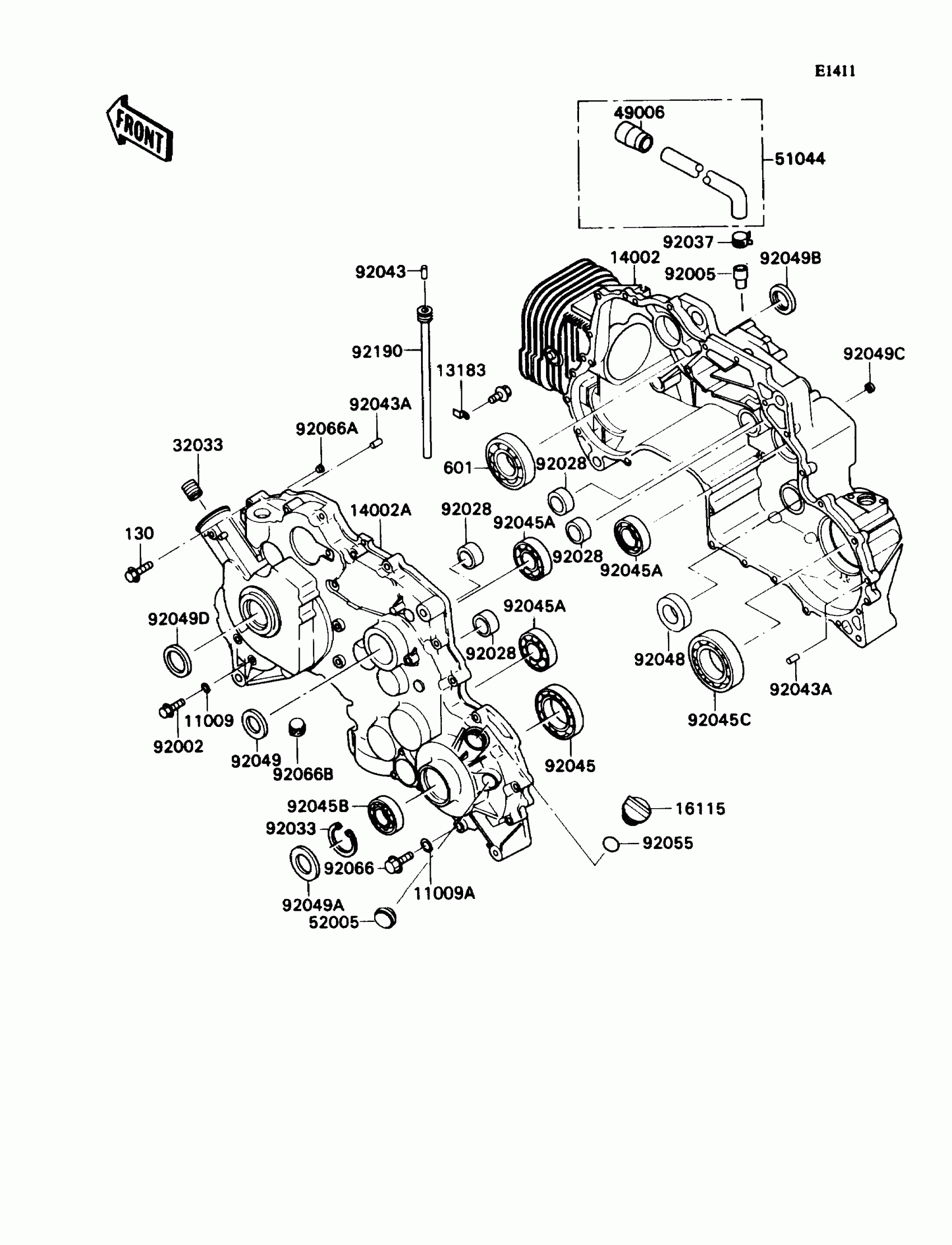

Kawasaki Mule 2030 Crankcase Diagram

#

Description
Price

11009

GASKET,8.2X14X1.0

11009-1344

$3.17

11009A

GASKET,12X22X2

92065-097

$0.74

13183

PLATE

13183-1096

$5.59

14002

CRANKCASE,RH

14002-1515

Unavailable

14002A

CRANKCASE,LH

14002-1516

Unavailable

16115

CAP-OIL FILLER

16115-1009

$14.30

32033

PIPE,OIL FILTER

32033-1535

$12.96

49006

BOOT

49006-1199

$8.64

51044

TUBE-ASSY

51044-1118

Unavailable

52005

GAUGE,OIL LEVEL

52005-1009

$18.40

92002

BOLT,FLANGED,8X16

92002-1200

$4.92

92005

FITTING,BREATHER

14067-006

$21.09

92028

BUSHING,26X35X14

92028-131

$38.06

92033

RING-SNAP,55MM

92033-1274

$9.43

92037

CLAMP

92037-1860

Unavailable

92043

PIN,6.2X8X14

92043-1263

$0.43

92043A

PIN,8.2X10X14

92043-1264

$0.64

92045

BEARING-BALL

92045-1162

$52.37

92045A

BEARING-BALL,62/28

92045-1207

$19.03

92045B

BEARING-BALL,6006

92045-1208

$22.15

92045C

BEARING-BALL,6210CM

92045-1213

$55.61

92048

RACE

92048-1081

$33.33

92049

SEAL-OIL,TC28X47X7

92049-1297

$14.90

92049A

SEAL-OIL,TC35X55X8

92049-1298

$8.98

92049B

SEAL-OIL,ISD-32X45X8

92049-2096

$7.90

92049C

SEAL-OIL,VC-6X10X2.5

92049-2097

$2.13

92049D

SEAL-OIL,SGL2-35X48X8AE

92049-2104

$9.11

92055

RING-O,31.5X2.6

92055-049

$4.31

92066

PLUG,OIL DRAIN,12X15

92066-1174

$6.16

92066A

PLUG,PT1/8X7

92066-1227

$5.90

92066B

PLUG,PT3/8X10

92066-1262

$3.31

92190

TUBE,BREATHER

92190-1011

$22.67

130

BOLT-FLANGED

130H0840

$3.76

601

BEARING-BALL

601A6307

$37.57
