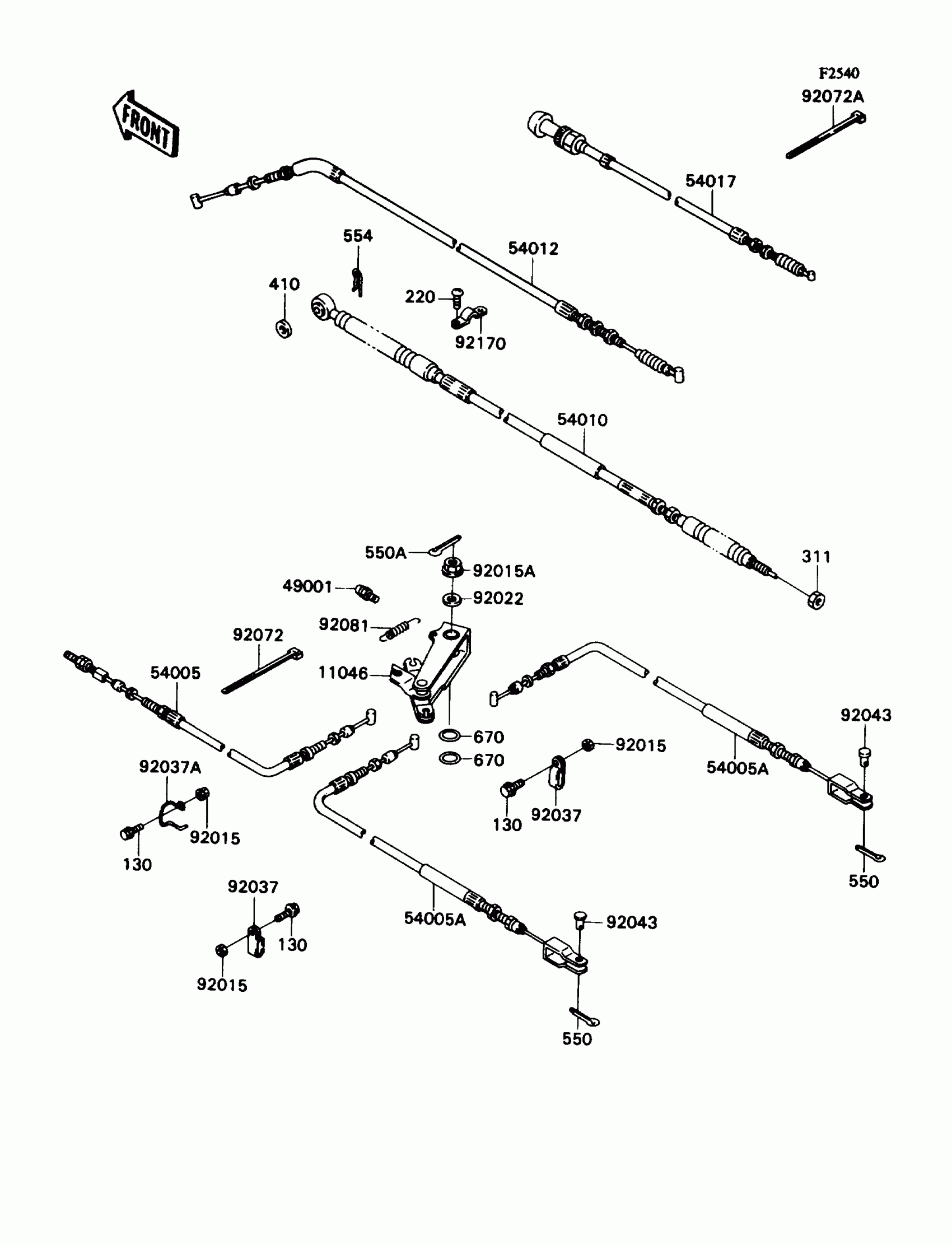

Kawasaki Mule 2030 Cable Diagram
#
Description
Price
11046
BRACKET,EQUALIZER
11046-1674
Unavailable
49001
NIPPLE-GREASE
49001-1051
$3.02
54005
CABLE-BRAKE,PARKING,FR
54005-1163
Unavailable
54005A
CABLE-BRAKE,PARKING,RR
54005-1164
Unavailable
54010
CABLE,SHIFT CONTROL
54010-1078
$160.65
54012
CABLE-THROTTLE
54012-1375
Unavailable
54017
CABLE-STARTER
54017-1117
Unavailable
92015
NUT,LOCK,FLANGED,6MM
92015-1675
$4.31
92015A
NUT,LOCK,10MM
92019-021
$6.11
92022
WASHER,10.5X26X2.3
92022-044
$3.92
92037
CLAMP
92037-1608
$8.10
92037A
CLAMP,HARNESS,RH
92037-1815
Unavailable
92043
PIN
92043-1039
$9.91
92072
BAND,L=365
92072-1197
$7.84
92072A
BAND,L=188
92072-1239
$1.73
92081
SPRING,SEAT HOOK
92081-1438
$8.24
92170
CLAMP,CABLE
92037-1933
$7.33
130
BOLT-FLANGED,6X20
130D0620
$1.69
220
SCREW-PAN-CROS,5X14
220D0514
$4.04
311
NUT 6MM
311B0600
$0.93
410
W-PLAIN-S,8MM
410E0800
$0.96
550
PIN-COTTER,2.0X20
550D2020
$0.96
550A
PIN-COTTER,2.5X18
550D2518
$0.59
554
PIN-SNAP,8MM
554A0800
$1.26
670
O RING,11MM
670B2011
$1.28
