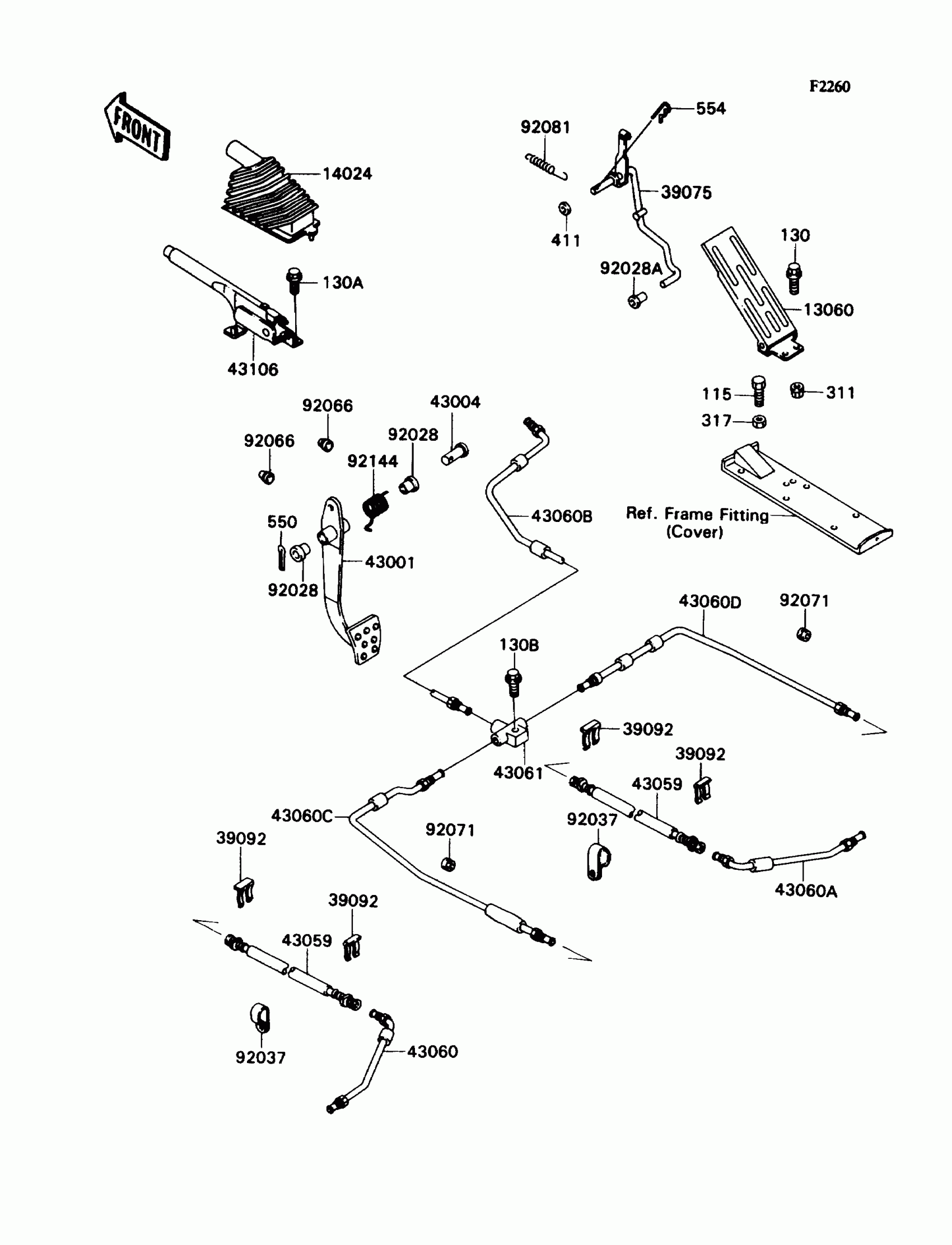

Kawasaki Mule 2030 Brake Pedal Diagram

#

Description
Price

13060

PEDAL,THROTTLE

13060-1061

$48.03

14024

COVER,PARKING LEVER

14024-1785

Unavailable

39075

LEVER-THROTTLE

39075-1057

$70.92

39092

PIN-HAIR

39092-1054

$7.95

43001

LEVER-BRAKE,PEDAL

43001-1272

$41.68

43004

SHAFT-BRAKE

43004-1128

$17.76

43059

HOSE-BRAKE,RR

43059-1490

$14.79

43060

PIPE-BRAKE,RR,LH

43060-1065

$20.64

43060A

PIPE-BRAKE,RR,RH

43060-1066

$27.22

43060B

PIPE-BRAKE,RR,FR

43060-1067

$39.37

43060C

PIPE-BRAKE,MIDDLE,LH

43060-1068

$30.79

43060D

PIPE-BRAKE,MIDDLE,RH

43060-1069

$38.48

43061

JOINT-BRAKE

43061-1063

$47.61

43106

LEVER-ASSY-PARKING BRAKE

43106-1001

Unavailable

92028

BUSHING

92028-1571

$10.67

92028A

BUSHING,THROTTLE LEVER

92028-1601

$4.44

92037

CLAMP

92037-1608

$8.10

92066

PLUG,7X2

92074-028

$4.26

92071

GROMMET

92071-1152

$4.26

92081

SPRING,BRAKE LEVER RETURN

92081-1922

$6.16

92144

SPRING

92144-1536

$8.30

115

BOLT-SMALL-UPSET,8X40

115D0840

$5.38

130

BOLT-FLANGED,6X12

130C0612

$0.63

130A

BOLT-FLANGED

130D0816

Unavailable

130B

BOLT-FLANGED,8X30

130D0830

$0.74

311

NUT-HEX,6MM,BLACK

311C0600

$0.43

317

NUT-HEX-SMALL,8MM

317H0800

$1.63

411

WASHER-PLAIN,10MM

411E1000

$0.73

550

PIN-COTTER,2.5X25

550D2525

$1.26

554

PIN-SNAP,10MM

554A1000

$1.36
