Description

Price

11009

GASKET,10X14.5X1.5

11009-1105

$6.51

13183

PLATE

13183-1396

Unavailable

16082

PUMP-ASSY-OIL

16082-2058

$64.98

16097

FILTER-ASSY-OIL

16097-1062

Unavailable

16097A

FILTER-ASSY-OIL

16097-1064

$14.50

16142

COVER-PUMP

16142-2051

$38.96

32033

PIPE,RELIEF VALVE

32033-2126

$8.17

39193

PIPE-OIL,HEAD

39193-1003

$58.13

39193A

PIPE-OIL,CRANKCASE

39193-1004

$96.93

59056

GEAR-HELICAL,27T

59056-2090

$38.53

92002

BOLT,OIL,L=23

92002-1888

$5.48

92081

SPRING,RELIEF VALVE

92081-2305

$1.84

92150

BOLT

92150-1136

$15.39

92200

WASHER,6.5X18X2.0

92200-2035

$0.43

130

BOLT-FLANGED,6X10

130B0610

$0.48

130A

BOLT-FLANGED,8X25

130B0825

$1.42

130B

BOLT-FLANGED

130D0612

$0.67

600

BALL-STEEL,5/16

600A1000

$0.73

670

O RING,18MM

670D2018

$1.91

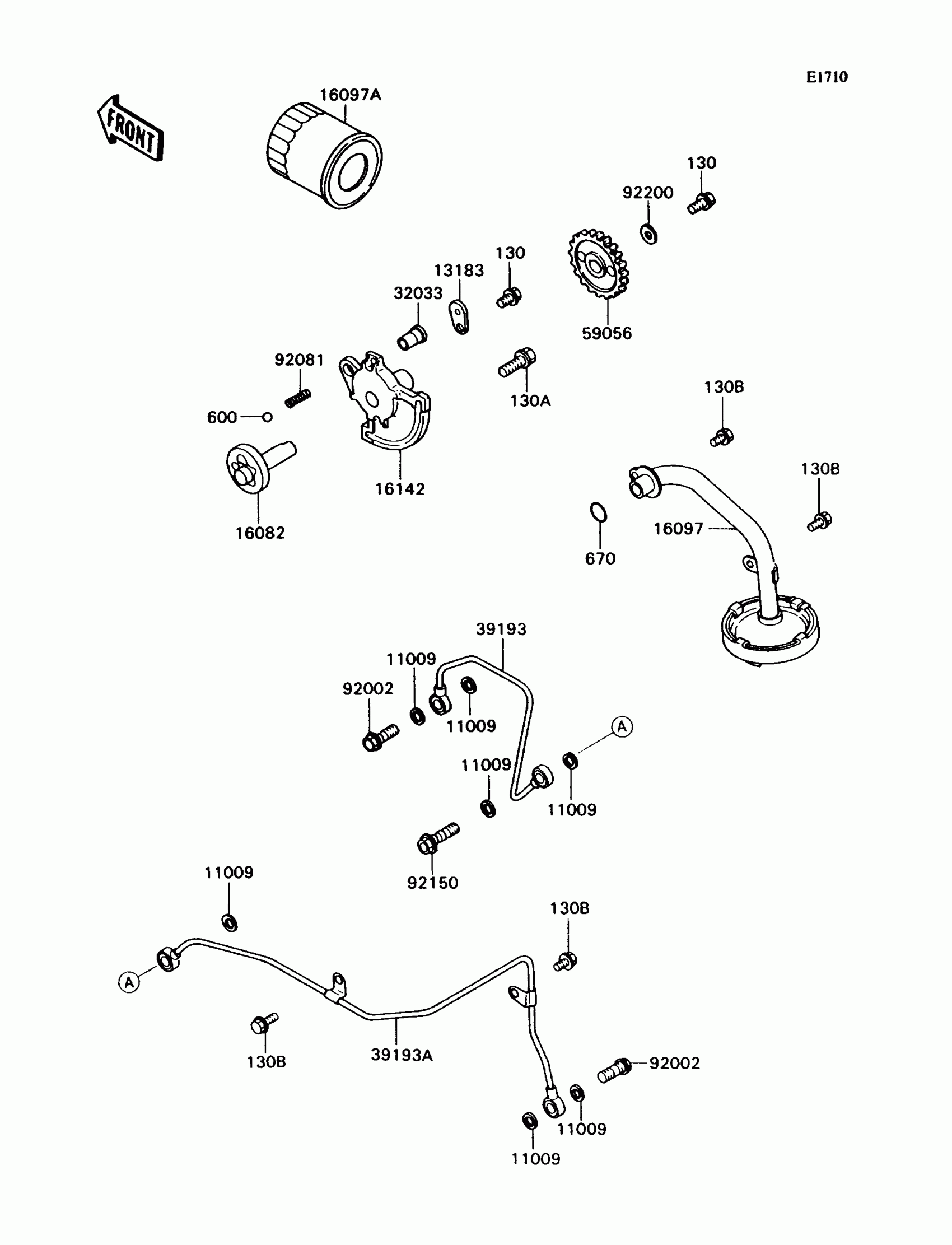

Kawasaki Mule 2020 Oil Pump Diagram

GASKET,10X14.5X1.5

PLATE

PUMP-ASSY-OIL

FILTER-ASSY-OIL

FILTER-ASSY-OIL

COVER-PUMP

PIPE,RELIEF VALVE

PIPE-OIL,HEAD

PIPE-OIL,CRANKCASE

GEAR-HELICAL,27T

BOLT,OIL,L=23

SPRING,RELIEF VALVE

BOLT

WASHER,6.5X18X2.0

BOLT-FLANGED,6X10

BOLT-FLANGED,8X25

BOLT-FLANGED

BALL-STEEL,5/16

O RING,18MM
