Description

Price

11046

BRACKET,STEERING GEAR

11046-1858

Unavailable

26011

WIRE-LEAD

26011-1282

Unavailable

32160

FRAME-COMP

32160-1074

$1,840.55

39112

RODEND-TIE,STEERING GEAR,LH

39112-1068

$96.05

39112A

RODEND-TIE,STEERING GEAR,RH

39112-1069

$96.05

39114

SHAFT-COMP-STRG

39114-1067

$319.63

39190

SHAFT-ASSY-STEERING

39190-1003

$231.78

39191

GEAR-ASSY-STEERING

39191-1002

$1,066.48

46079

CONTACT,HORN SWITCH

46079-1053

$86.71

49006

BOOT,STEERING SHAFT,LWR

49006-1255

$34.90

92001

BOLT,8X30

92001-1379

Unavailable

92002

BOLT,FLANGED,12X135

92002-1507

Unavailable

92015

NUT,LOCK,10MM,BLACK

92015-1189

$7.34

92015A

NUT

92015-1706

$7.45

92015B

NUT

92015-1864

$14.39

92022

WASHER,10.5X26X2.3,BLACK

92022-1396

$3.21

92072

BAND,L=188

92072-1239

$1.73

92150

BOLT,FLANGED,12X110

92150-1088

$14.27

92160

DAMPER,STEERING GEAR

92160-1084

$31.96

130

BOLT-FLANGED,10X30

130J1030

$6.10

190

BOLT-UPSET-WS

190H1025

$4.93

224

SCREW-PAN-WP-CROS

224B0508

$0.67

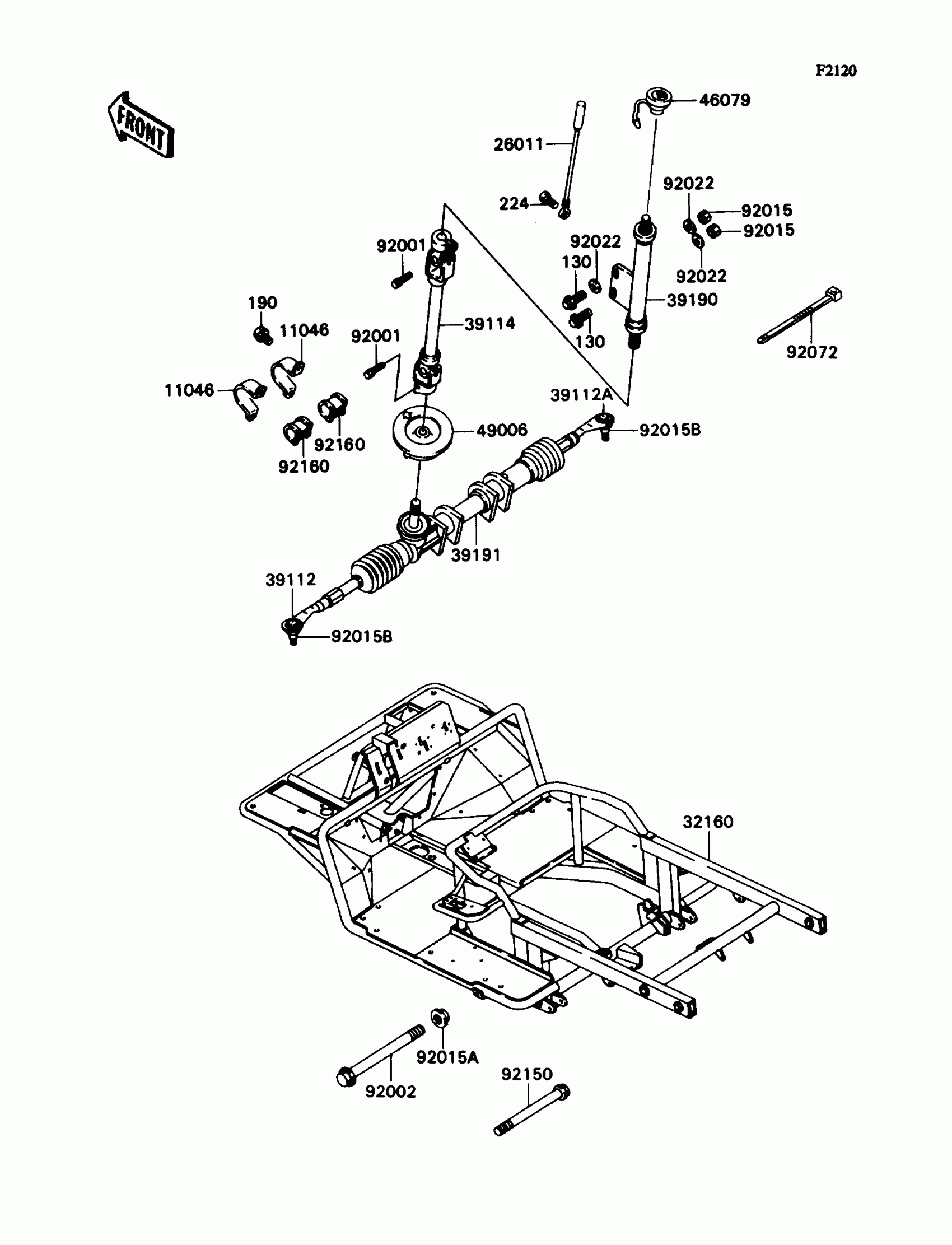

Kawasaki Mule 2020 Frame Diagram

BRACKET,STEERING GEAR

WIRE-LEAD

FRAME-COMP

RODEND-TIE,STEERING GEAR,LH

RODEND-TIE,STEERING GEAR,RH

SHAFT-COMP-STRG

SHAFT-ASSY-STEERING

GEAR-ASSY-STEERING

CONTACT,HORN SWITCH

BOOT,STEERING SHAFT,LWR

BOLT,8X30

BOLT,FLANGED,12X135

NUT,LOCK,10MM,BLACK

NUT

NUT

WASHER,10.5X26X2.3,BLACK

BAND,L=188

BOLT,FLANGED,12X110

DAMPER,STEERING GEAR

BOLT-FLANGED,10X30

BOLT-UPSET-WS

SCREW-PAN-WP-CROS
