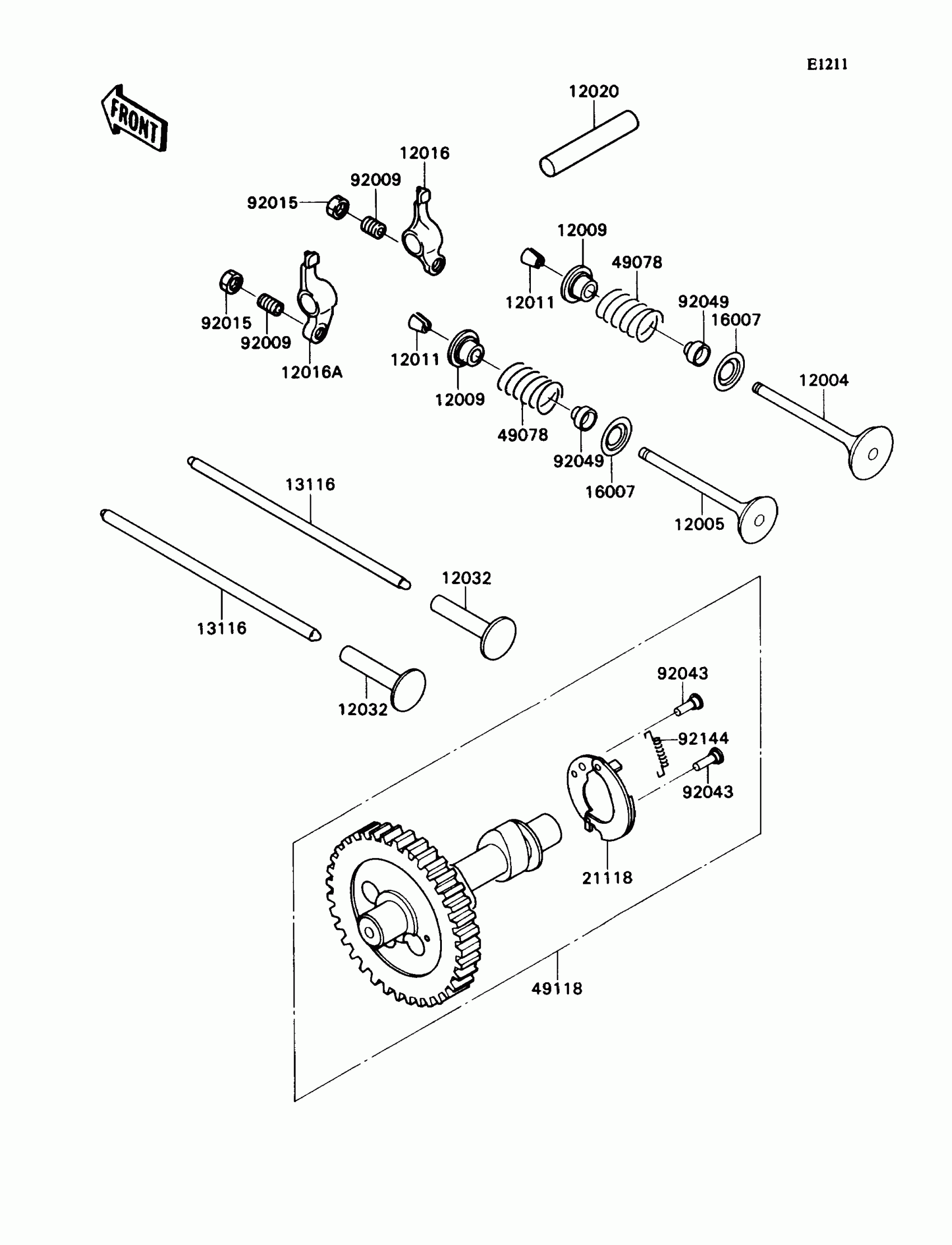

Kawasaki Mule 2010 Valve/Camshaft Diagram

Description

Price

12004

VALVE-INTAKE

12004-2080

Unavailable

12005

VALVE-EXHAUST

12005-1131

Unavailable

12009

RETAINER-VALVE SPRING

12009-2064

Unavailable

12011

COLLET

12011-2055

Unavailable

12016

ARM-ROCKER,INTAKE

12016-2054

$16.82

12016A

ARM-ROCKER,EXHAUST

12016-2055

$21.85

12020

SHAFT-ROCKER

12020-2058

Unavailable

12032

TAPPET

12032-2061

Unavailable

13116

ROD-PUSH

13116-2055

$20.80

16007

SEAT-SPRING

16007-2052

$0.70

21118

DECOMPRESSOR

21118-1067

$28.25

49078

SPRING-ENGINE VALVE

49078-2061

Unavailable

49118

CAMSHAFT-COMP

49118-1073

Unavailable

92009

SCREW,9MM

92009-2182

$4.51

92015

NUT,9MM

92015-2139

Unavailable

92043

PIN,5X17.6

92043-2113

$1.74

92049

SEAL-OIL,VSB-7X12X9.7

92049-2100

$4.68

92144

SPRING,DECOMPRESSOR

92144-1408

$7.51
