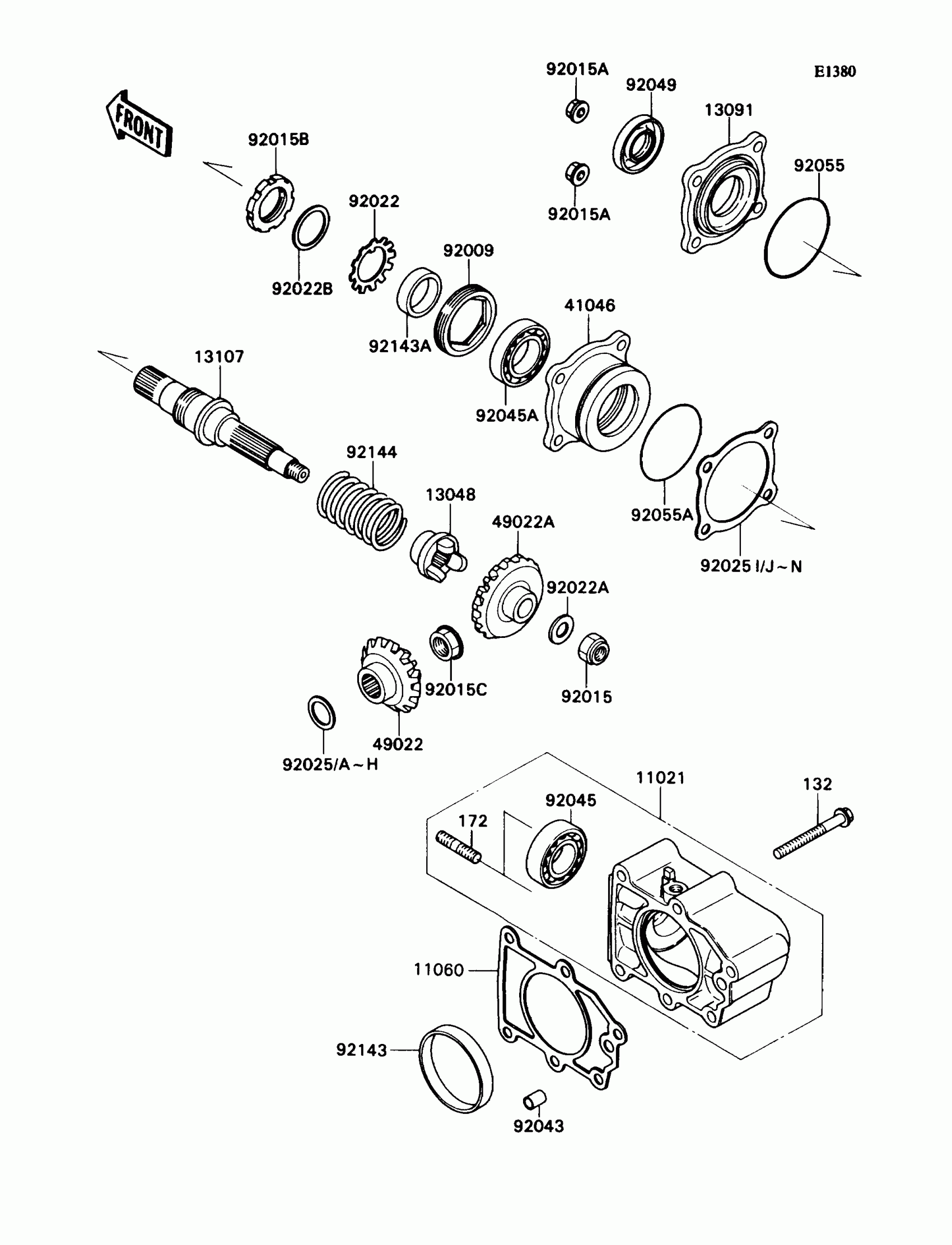

Kawasaki Mule 2010 Particular Diagram
#
11021
CASE-ASSY,4WD
11021-1074
Unavailable
11060
GASKET,GEAR CASE
11060-1245
Unavailable
13048
CAM-DAMPER
13048-1070
$50.61
13091
HOLDER,GEAR CASE
13091-1620
$41.26
13107
SHAFT
13107-1262
Unavailable
41046
HOUSING-BEARING
41046-1083
$131.93
49022
GEAR-BEVEL,15T
49022-1095
$215.00
49022A
GEAR-BEVEL,18T
49022-1096
$215.00
92009
SCREW,58MM
92009-1474
$29.33
92015
NUT,LOCK,12MM,BLACK
92015-1190
$7.34
92015A
NUT,FLANGED,8MM
92015-1406
$4.45
92015B
NUT,PUMP GEAR,30MM
92015-1511
$24.05
92015C
NUT,16MM
92015-1581
$19.64
92022
WASHER
92022-1882
$7.29
92022A
WASHER,12X24X2.3
92022-1890
$5.00
92022B
WASHER,30.3X38X0.5
92022-1987
$5.00
92025
SHIM,20.3X28X1.3
92025-1533
Unavailable
92025A
SHIM,20.3X28X0.7
92025-1534
Unavailable
92025B
SHIM,20.3X28X0.8
92025-1535
Unavailable
92025C
SHIM,20.3X28X0.9
92025-1536
Unavailable
92025D
SHIM,20.3X28X1.0
92025-1537
Unavailable
92025E
SHIM,20.3X28X1.2
92025-1538
Unavailable
92025F
SHIM,20.3X28X0.15
92025-1573
Unavailable
92025G
SHIM,20.3X28X0.20
92025-1574
Unavailable
92025H
SHIM,20.3X28X1.1
92025-1575
Unavailable
92025I
SHIM,T=1.00
92025-1858
Unavailable
92025J
SHIM,T=0.10
92025-1859
Unavailable
92025K
SHIM,T=0.15
92025-1860
Unavailable
92025L
SHIM,T=0.50
92025-1861
Unavailable
92025M
SHIM,T=0.80
92025-1862
Unavailable
92025N
SHIM,T=1.20
92025-1863
Unavailable
92043
PIN,DOWEL,10X14
92043-1037
$0.74
92045
BEARING-BALL,6205CM
92045-1200
Unavailable
92045A
BEARING-BALL,6006CM
92045-1201
$25.19
92049
SEAL-OIL
92049-1288
$8.98
92055
RING-O,66.5MM
92055-1287
$6.57
92055A
RING-O,63.6X2.4
92055-1294
$9.51
92143
COLLAR,66X70X11
92143-1120
$18.89
92143A
COLLAR
92143-1121
$14.67
92144
SPRING
92144-1161
$23.01
132
BOLT-FLANGED-SMALL,8X70
132H0870
$5.81
172
BOLT-STUD,8X25
172G0825
$3.70
