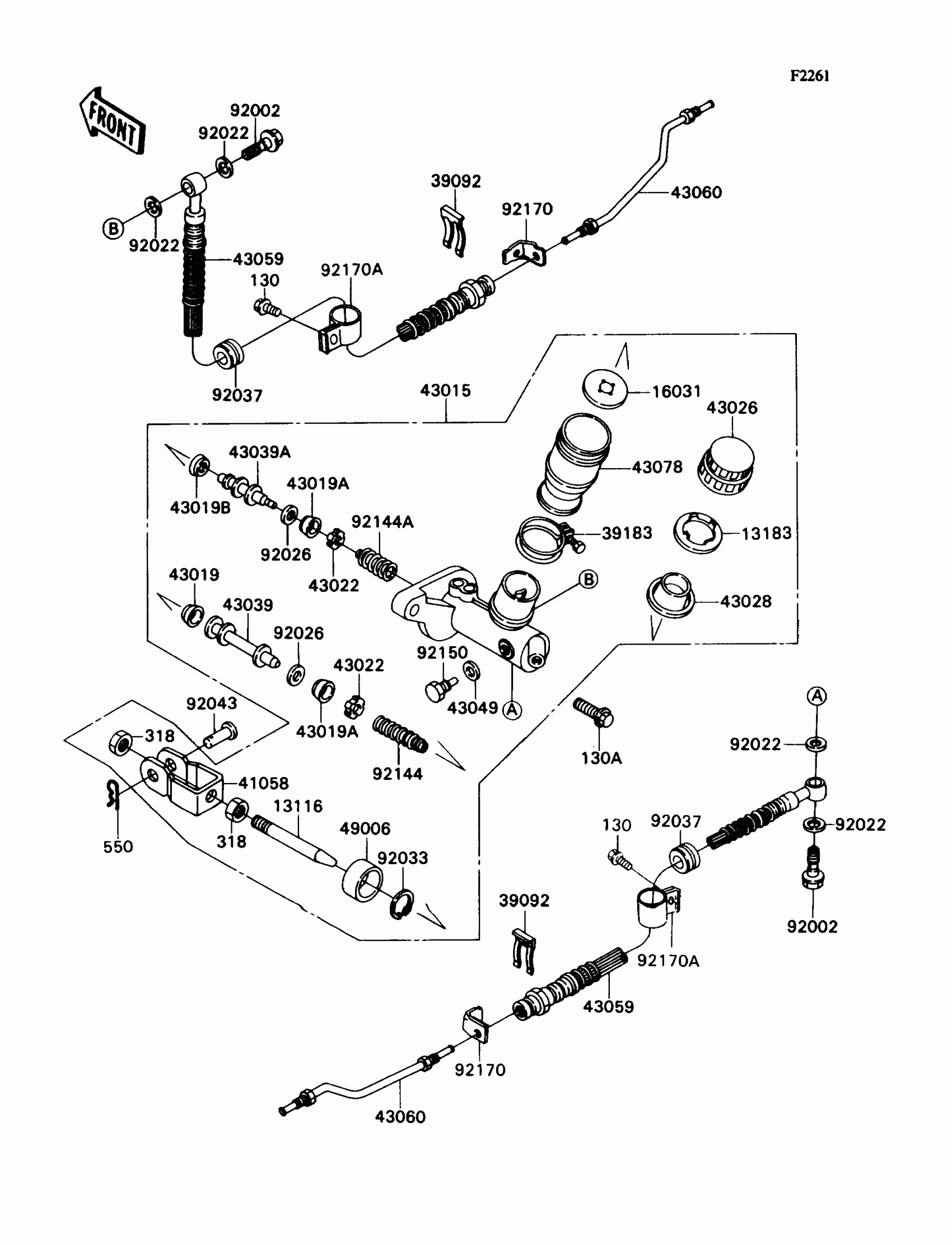

Kawasaki Mule 2010 Master Cylinder Diagram
#
Description
Price
13116
ROD-PUSH
13116-1134
$33.65
13183
PLATE
13183-1306
$4.39
16031
FLOAT
16031-1069
$7.60
39092
PIN-HAIR
39092-1054
$7.95
39183
BAND-ASSY
39183-1055
$11.07
41058
RODEND-BRAKE
41058-1057
$17.48
43015
CYLINDER-ASSY-MASTER
43015-1398
$378.75
43019
CUP-BRAKE
43019-1063
Unavailable
43019A
CUP-BRAKE
43019-1064
$60.90
43019B
CUP-BRAKE
43019-1065
$3.67
43022
STOPPER-BRAKE
43022-1053
$59.81
43026
CAP-BRAKE
43026-1067
$26.91
43028
DIAPHRAGM
43028-1072
$15.87
43039
PISTON-BRAKE
43039-1064
$28.81
43039A
PISTON-BRAKE
43039-1065
Unavailable
43049
PACKING
43049-1065
$2.76
43059
HOSE-BRAKE,FR
43059-1489
$81.65
43060
PIPE-BRAKE,FR
43060-1082
$24.57
43078
RESERVOIR
43078-1093
Unavailable
49006
BOOT
49006-1245
$7.60
92002
BOLT,OIL,L=23
92002-1888
$5.48
92022
WASHER,10.5X15X1.5
43067-001
$2.15
92026
SPACER
92026-1351
$3.51
92033
RING-SNAP
92033-1255
$3.54
92037
GROMMET,HOSE CLAMP
43064-007
$5.52
92043
PIN
92043-1039
$9.91
92144
SPRING
92144-1330
$6.35
92144A
SPRING
92144-1331
$6.35
92150
BOLT,STOP
92150-1165
$3.57
92170
CLAMP,BRAKE PIPE
92170-1093
$7.33
92170A
CLAMP,HOSE
92170-1173
$8.38
130
BOLT-FLANGED
130D0610
$0.48
130A
BOLT-FLANGED
130D0820
Unavailable
318
NUT-HEX-SMALL
318H0800
$1.26
550
PIN-COTTER,2.5X18
550D2518
$0.59
