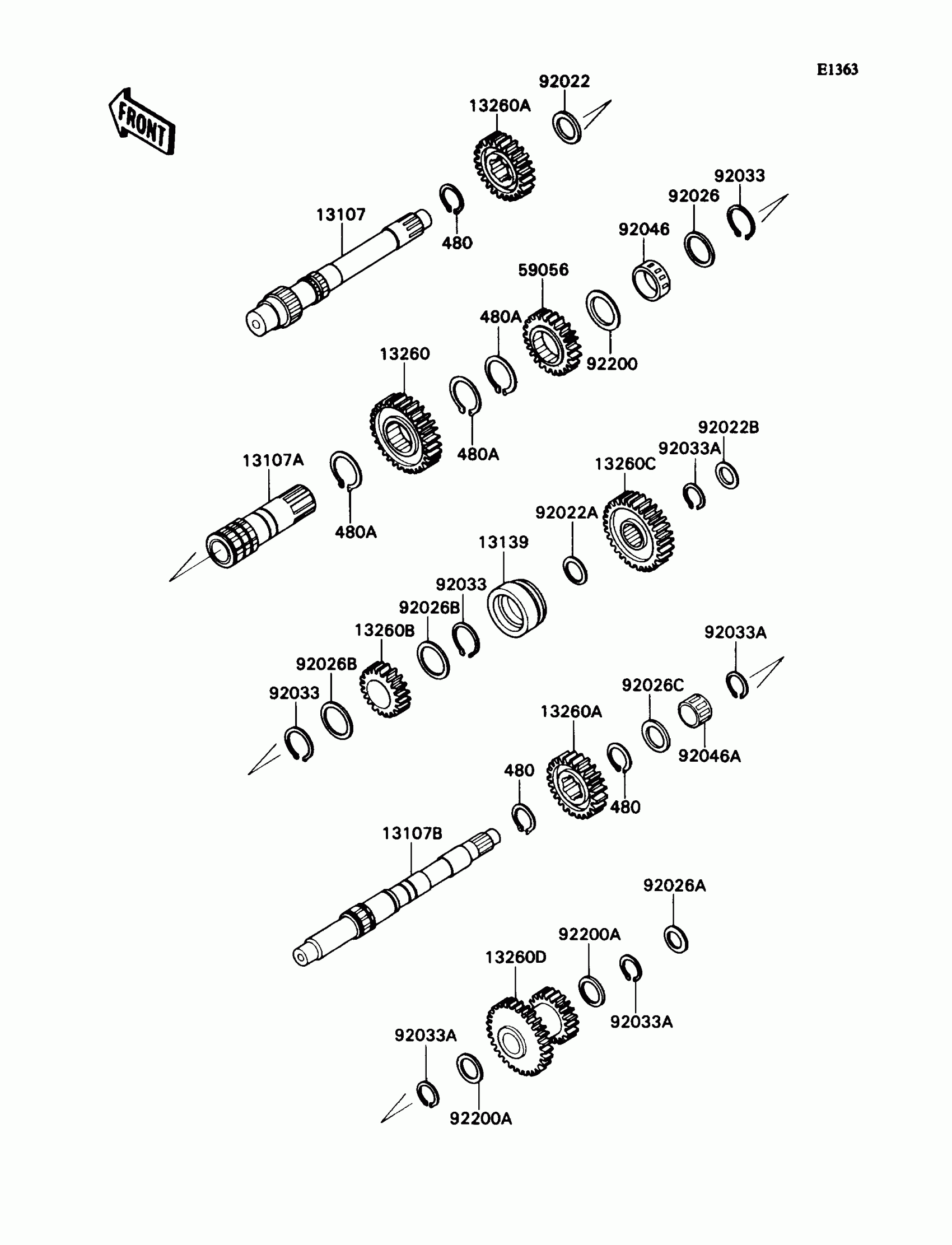

Kawasaki Mule 2010 Hi Low Shaft/4wd Shaft Diagram
#
Description
Price
13107
SHAFT,INNER
13107-1258
Unavailable
13107A
SHAFT,OUTER
13107-1259
Unavailable
13107B
SHAFT,4WD
13107-1260
Unavailable
13139
SHIFTER
13139-1058
Unavailable
13260
GEAR,REDUCTION,36T
13260-1070
Unavailable
13260A
GEAR,4WD/REDUCTION,28T
13260-1071
Unavailable
13260B
GEAR,REDUCTION,22T
13260-1072
Unavailable
13260C
GEAR,REDUCTION,32T
13260-1073
Unavailable
13260D
GEAR,4WD,34T&24T
13260-1078
Unavailable
59056
GEAR-HELICAL
59056-1053
$97.84
92022
WASHER,25.5X38X2
92022-1075
$15.45
92022A
WASHER,25.3X33X1
92022-1109
$5.96
92022B
WASHER,20.5X30X1,STEEL
92022-112
$8.86
92026
SPACER,35.2X40X1.6
92026-1369
$5.88
92026A
SPACER,20.2X30X2
92026-1372
$5.88
92026B
SPACER,35.3X44X0.5
92026-1375
$7.33
92026C
SPACER,24.2X35X2
92026-1378
$5.88
92033
RING-SNAP
92033-1269
$7.98
92033A
RING-SNAP
92033-1270
$8.18
92046
BEARING-NEEDLE
92046-1194
$23.00
92046A
BEARING-NEEDLE
92046-1196
$15.39
92200
WASHER,35X48X2
92200-1008
$5.21
92200A
WASHER,24.2X33X1
92200-1018
$5.88
480
CIRCLIP-TYPE-C,30MM
480J3000
$6.22
480A
CIRCLIP
480J4000
$6.57
