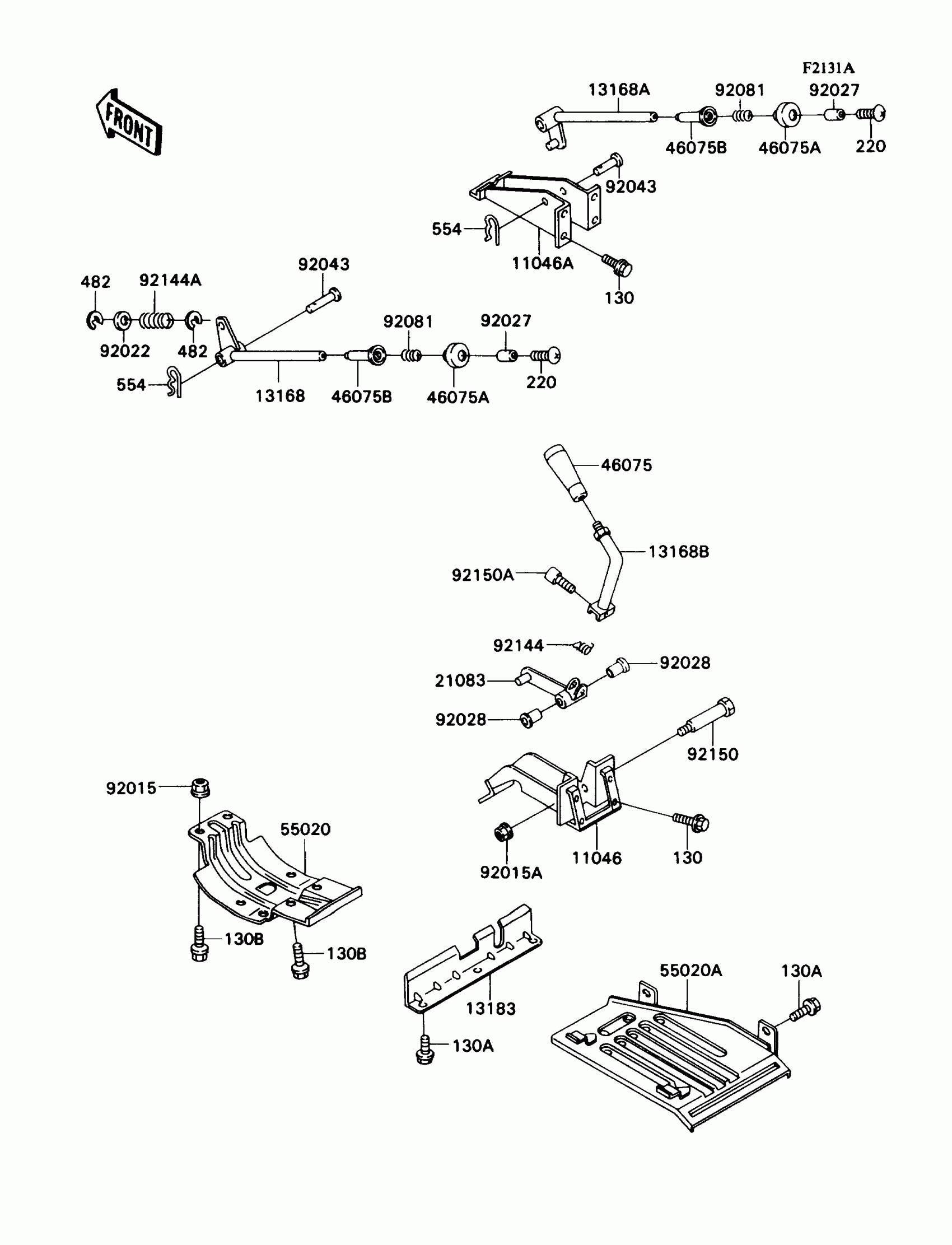

Kawasaki Mule 2010 Frame Fitting(Lever) Diagram

#

Description
Price

11046

BRACKET,SHIFT LEVER

11046-1677

$44.09

11046A

BRACKET,HI-LOW RANGE

11046-1751

Unavailable

13168

LEVER,DIFF MODE CONTROL

13168-1428

$28.83

13168A

LEVER,HI-LOW RANGE

13168-1430

$36.64

13168B

LEVER,SHIFT

13168-1440

$51.63

13183

PLATE,MUD GUARD

13183-1508

Unavailable

21083

ARM,SHIFT LEVER

21083-1085

$49.78

46075

GRIP,SHIFT LEVER

46075-1075

$39.59

46075A

GRIP,UPP

46075-1085

$9.37

46075B

GRIP,LWR

46075-1086

$12.95

55020

GUARD,FRONT DIFF CASE

55020-1343

$43.42

55020A

GUARD,MUD

55020-1362

$46.01

92015

NUT,FLANGED,10MM

92015-1366

$5.00

92015A

NUT,LOCK,FLANGED,6MM

92015-1675

$4.31

92022

WASHER,10.5X26X2.3

92022-044

$3.92

92027

COLLAR

92027-1987

$2.46

92028

BUSHING

92028-1507

$5.25

92043

PIN,FOOTRST STEP FIT

92043-1069

$6.22

92081

SPRING

92081-1714

$4.26

92144

SPRING

92144-1175

$6.87

92144A

SPRING

92144-1510

$6.41

92150

BOLT

92002-1984

$9.40

92150A

BOLT,SOCKET,6X35

92150-1393

$7.91

130

BOLT-FLANGED,6X12

130C0612

$0.63

130A

BOLT-FLANGED,8X14

130G0814

$2.12

130B

BOLT-FLANGED,10X16

130G1016

$4.44

220

SCREW-PAN-CROS

220C0514

$1.81

482

CIRCLIP-TYPE-E,8MM

482L8000

$0.67

554

PIN-SNAP,10MM

554A1000

$1.36
