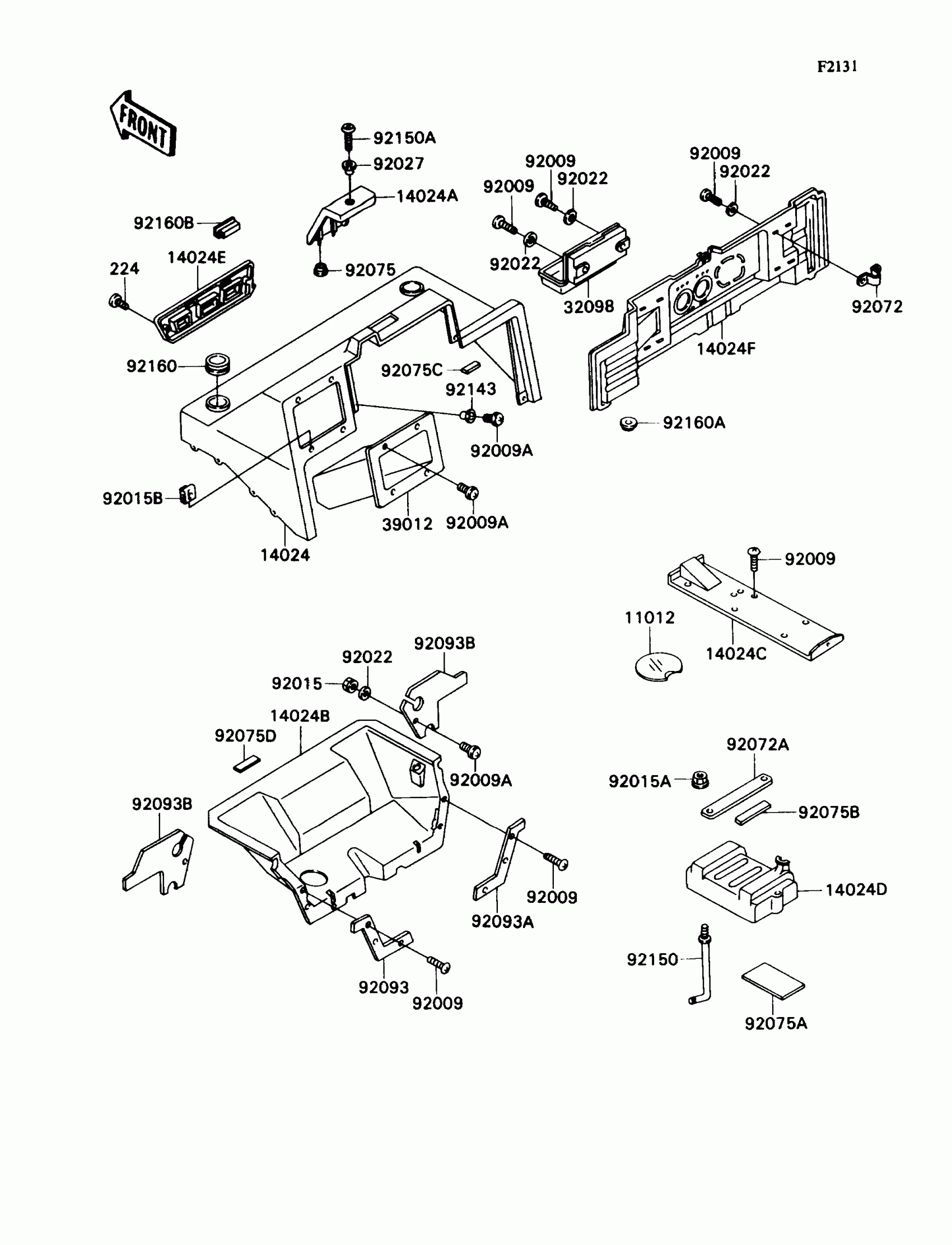

Kawasaki Mule 2010 Frame Fitting(Cover) Diagram
#
11012
CAP,RADIATOR,BLACK
11012-1578-6D
Unavailable
14024
COVER,UPP,F.RED
14024-1787-B1
Unavailable
14024A
COVER,MAINTENANCE,F.RED
14024-1788-B1
Unavailable
14024B
COVER,LWR
14024-1789
Unavailable
14024C
COVER,FLOOR,CNT
14024-1791
Unavailable
14024D
COVER,BATTERY
14024-1792
$50.39
14024E
COVER,FRONT GRILL,F.RED
14024-1816-B1
Unavailable
14024F
COVER,SEAT UNDER
14024-1822
Unavailable
32098
CASE-TOOL
32098-1052
$33.37
39012
CASE-STORAGE
39012-1053
$71.71
92009
SCREW,TAPPING,6X16
92009-1166
$5.52
92009A
SCREW,6X18,BLACK
92009-1181
$2.80
92015
NUT,FLANGED,6MM,BLACK
92015-1386
Unavailable
92015A
NUT,FLANGED,8MM
92015-1406
$4.45
92015B
NUT,CLAMP,6MM
92015-1678
$5.52
92022
WASHER,6.5X20X1.6,BLACK
92022-1346
$0.49
92027
COLLAR,L=14.1
92027-1920
$6.57
92072
BAND
92072-1252
$11.91
92072A
BAND,BATTERY
92072-1255
$4.57
92075
DAMPER
92075-1067
$4.69
92075A
DAMPER
92075-1076
$8.86
92075B
DAMPER
92075-1214
$4.39
92075C
DAMPER,AIR FILTER COV
92075-1658
$4.86
92075D
DAMPER,BATTERY BAND
92075-1903
$5.59
92093
SEAL,FRONT FENDER,LH
92093-1293
$9.64
92093A
SEAL,FRONT FENDER,RH
92093-1294
$10.00
92093B
SEAL,LOWER COVER
92093-1295
$22.57
92143
COLLAR
92143-1087
$4.31
92150
BOLT,BATTERY
92150-1293
$10.65
92150A
BOLT,6X25
92150-1360
Unavailable
92160
DAMPER
92160-1142
$9.30
92160A
DAMPER
92160-1148
$4.58
92160B
DAMPER
92160-1160
Unavailable
224
SCREW-PAN-WP-CROS,6X30
224C0630
$4.62
