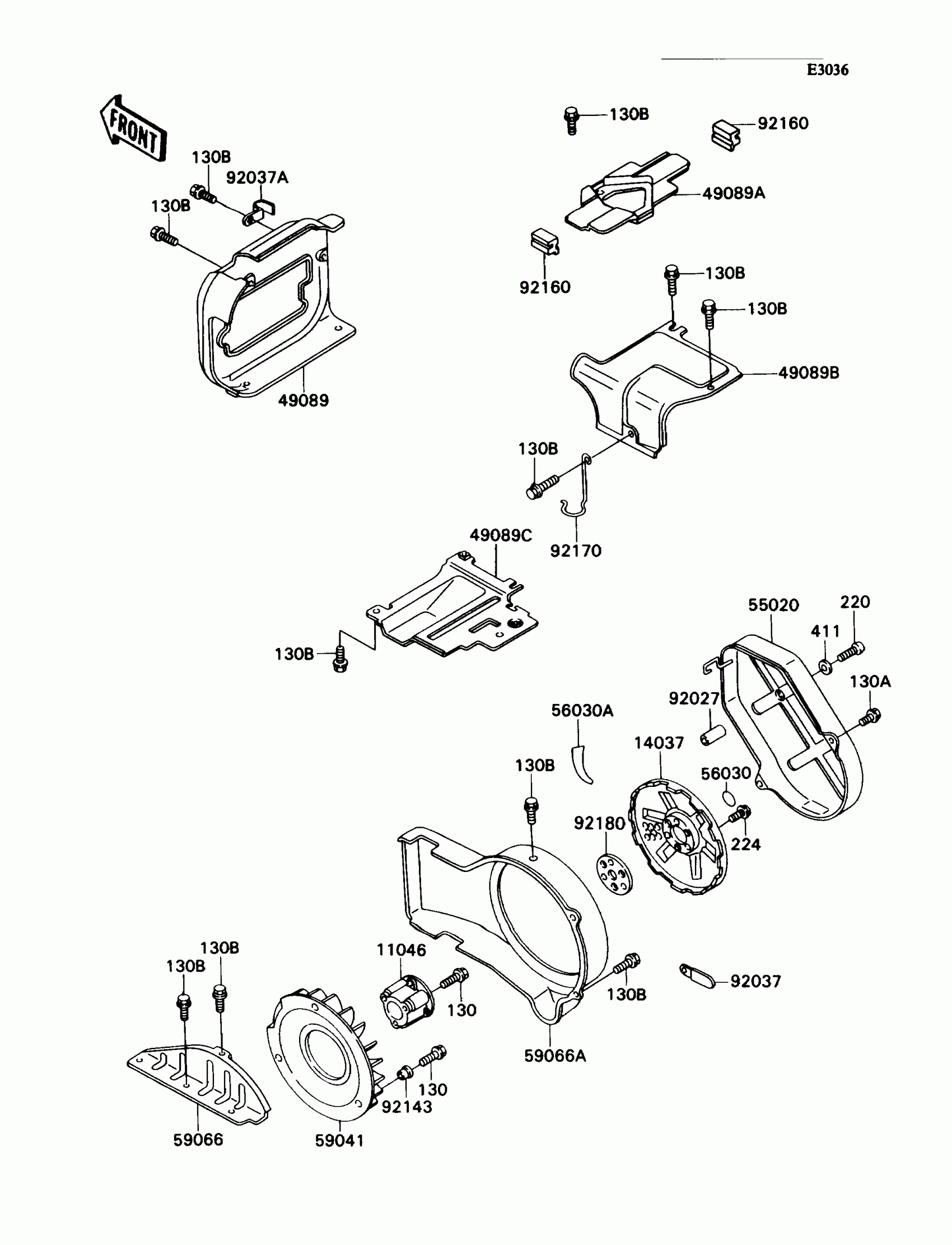

Kawasaki Mule 2010 Engine Shroud Diagram
#
Description
Price
11046
BRACKET
11044-2084
$16.87
14037
SCREEN
14037-2091
Unavailable
49089
SHROUD-ENGINE
49089-1097
$35.34
49089A
SHROUD-ENGINE
49089-1098
$17.05
49089B
SHROUD-ENGINE
49089-2195
$20.98
49089C
SHROUD-ENGINE
49089-2196
$20.98
55020
GUARD,FAN HOUSING
55020-1371
Unavailable
56030
LABEL,SCREEN
56030-2142
Unavailable
56030A
LABEL,FAN HOUSING
56030-2204
Unavailable
59041
FAN
59041-1054
$30.76
59066
HOUSING-FAN
59066-2286
$27.69
59066A
HOUSING-FAN
59066-2376
Unavailable
92027
COLLAR,6.5X10.5X33
92027-1222
$14.64
92037
CLAMP,L=45
92037-1539
$5.00
92037A
CLAMP
92037-3730
$6.34
92143
COLLAR,FAN
92143-1318
$13.78
92160
DAMPER
92160-1132
$7.58
92170
CLAMP
92170-1074
Unavailable
92180
SHIM
92025-2003
Unavailable
130
BOLT-FLANGED,8X20
130B0820
$0.67
130A
BOLT-FLANGED
130D0508
$2.30
130B
BOLT-FLANGED
130D0610
$0.48
220
SCREW-PAN-CROS,5X40
220C0540
$1.92
224
SCREW-PAN-WP-CROS
224B0616
$0.72
411
WASHER-PLAIN,5MM,BLACK
411F0500
$0.83
